1st gen toyota ignition testing

kmcminn · Sep 7, 2013

Toyota quit wanting to crank, starter is good, battery is charged. Everything is tight well I was thinking it may be the ignition switch cause none of the gauges are working or any accesories.

Anyone know where to ohm this thing at to see if it is good?
Thanks

grcthird · Sep 8, 2013

I can get you the diagram tomorrow.

kmcminn · Sep 8, 2013

That would be great!

grcthird · Sep 9, 2013

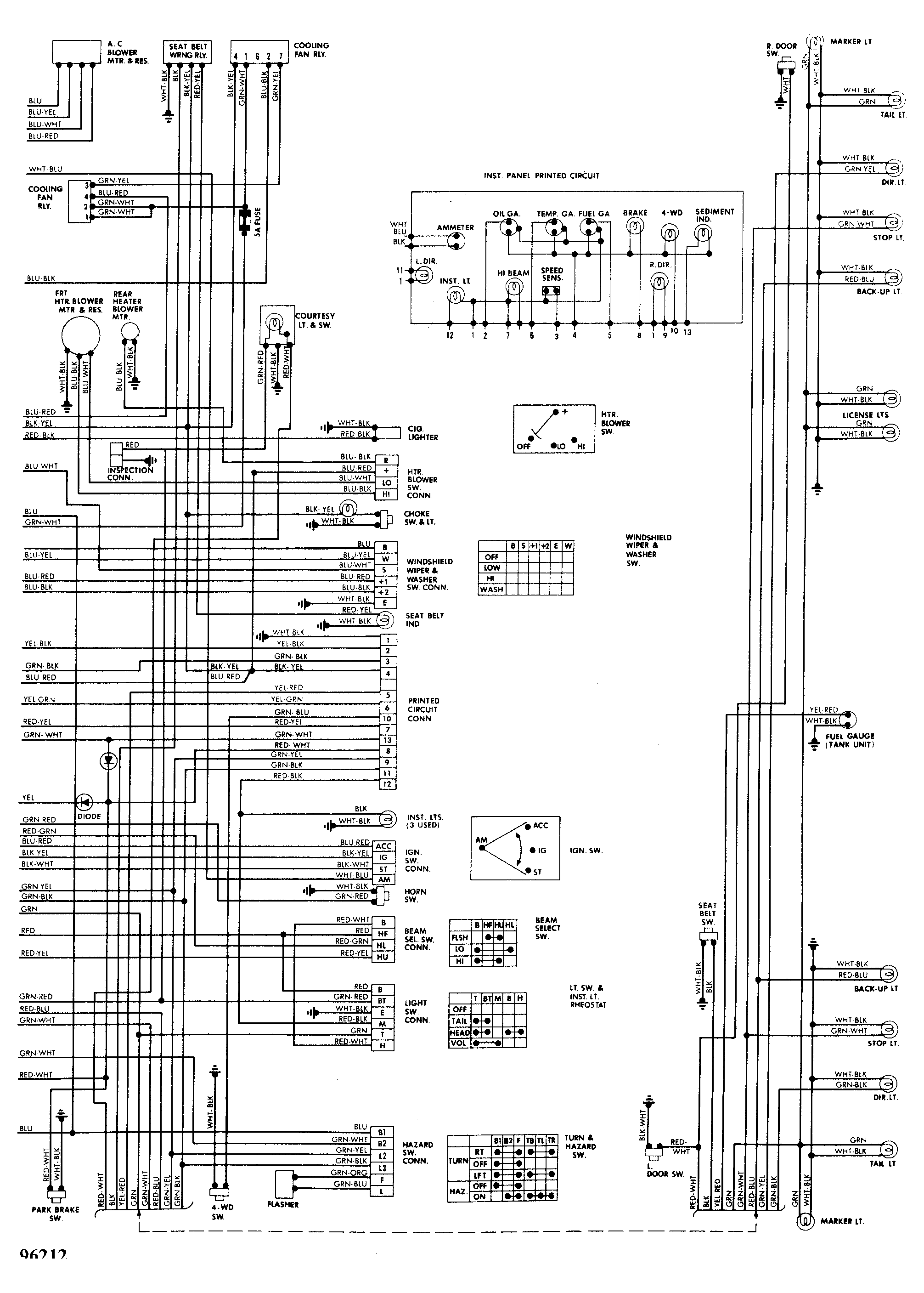

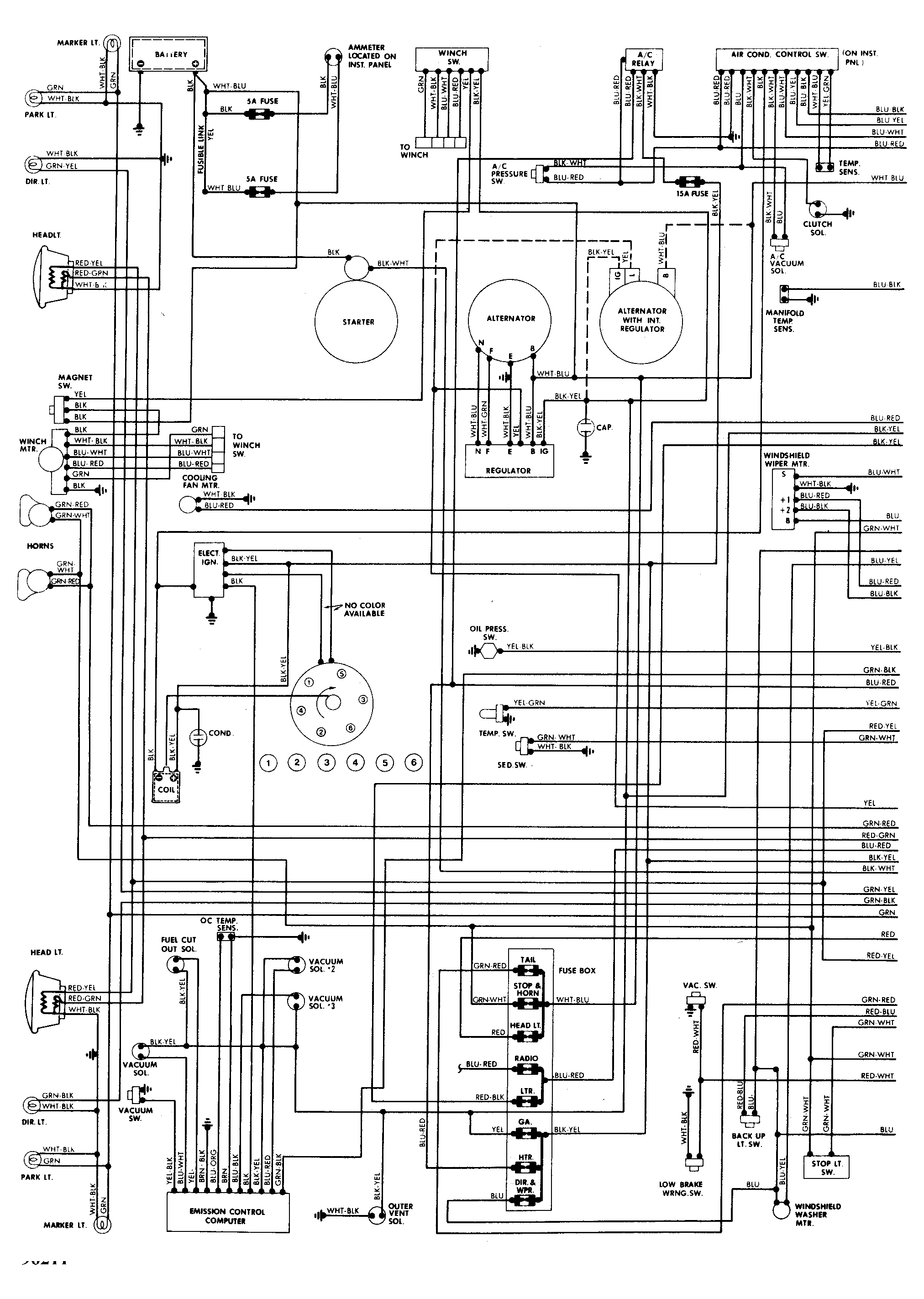

See if these show up

kmcminn · Oct 10, 2013

Guys all the ignition switches oreilly has sent have only had 4 wires. So I need one any ideas?

grcthird · Oct 11, 2013

The diagram only shows 4 wires, how many does yours have? Did it ohm out ok?

kmcminn · Oct 11, 2013

Mine has six. It isn't sending the right voltage out when in start position.

kmcminn · Oct 11, 2013

My truck is a 83 DLX. Parts stores are sending switches with four wires. Looking on Internet does 82 have six maybe they put some 82 parts on 83

twizt3dfuc · Oct 11, 2013

Re:

What part of North Alabama are you in... if its close to Russellville and you come by oreilly tomorrow I will find it.

Sent from my SCH-I605 using Tapatalk 4

kmcminn · Oct 11, 2013

I live in Cullman. I went by napa and they found it. Oreily doesn't have the part boxed labeled from manufacture. Thanks though.

kmcminn · Oct 17, 2013

Well I talked to Napa. I think they got the wrong part also.

twizt3dfuc · Oct 18, 2013

Re:

Edit- found it
But it being IDI line code itll probably have to be ordered, or at least OReilly in rville doesnt stock much import direct

Sent from my SCH-I605 using Tapatalk

twizt3dfuc · Oct 18, 2013

Re:

http://m.oreillyauto.com/mt/www.oreillyauto.com/site/c/detail/IDI0/180917/02018.oap?year=1983&make=Toyota&model=Pickup&vi=1277232&ck=Search_ignition+starter+switch_1277232_933&keyword=ignition+starter+switch

Is this not it? Its 6 wire 3 stacked 2

Sent from my SCH-I605 using Tapatalk

kmcminn · Oct 18, 2013

Oreilly ordered me that same part three times here in Cullman. All three times it was the wrong part. It shows correct part in picture the wrong part comes in. BWD and Import direct.

twizt3dfuc · Oct 18, 2013

Re:

Where does it get messed up? Does the plug with 4 wires come or is there two sets of 6 wire? I'll look around at my store tonight and let you know if I have any luck

Sent from my SCH-I605 using Tapatalk

kmcminn · Oct 18, 2013

The one with 4 wires keeps coming. I crossed referenced a switch for a 85 celica it seems to be the same thing as that year model truck. I got one on the way from autozone It will be here tomorrow. Hopefully it is right.
