EOR 321 2 Seater Build

jayphizzle

jayphizzle

Junk Wheeler
Joined
Dec 27, 2010
Messages
629
Location
Middle,ALABAMA
I am starting a thread on a build which is in progress. I will have to start uploading pics as soon as my dumb ass brings in my memory card.


EOR 321 Chassis (Jimmy Penner Special) :)
454 Big Block Chevy w/ Professional Products Pro-Jection
Th-400
NP-205 Twin Stickkkkked
Rockwells Detroit Locked Front, Lincoln Locked Rear
14 inch Bilstein Coilovers Front
16 inch Bilstein Coilovers Rear
Recentered H1 Rims w/ PVC inserts
All QA1 1 1/4 Heims with 1" Bolts (no small stuff here)
2" DOM .250 wall for link bars
44" Boogers ( yes I know they are actually "boggers" but i prefer boogers)

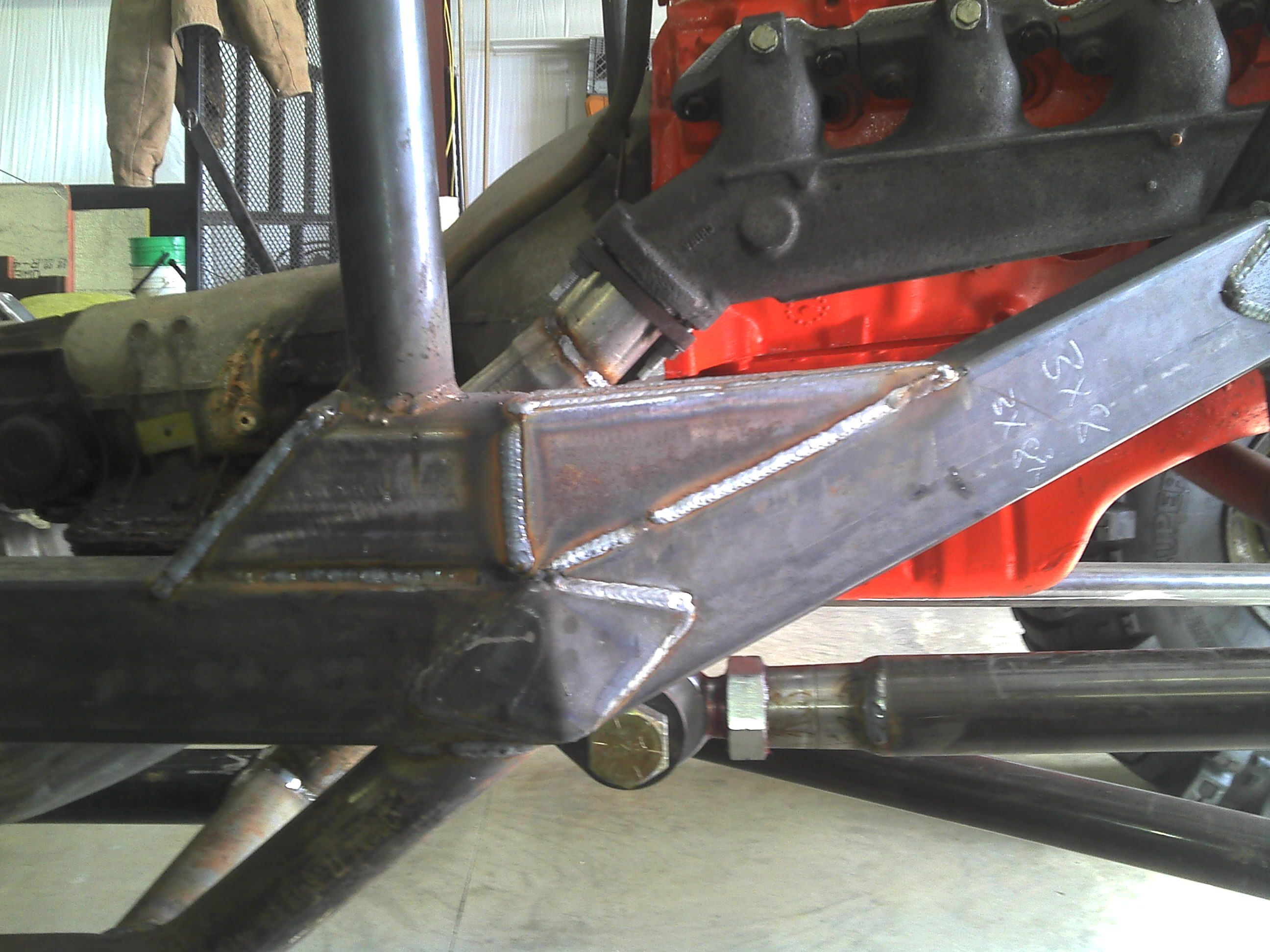

Some pics


Attachments

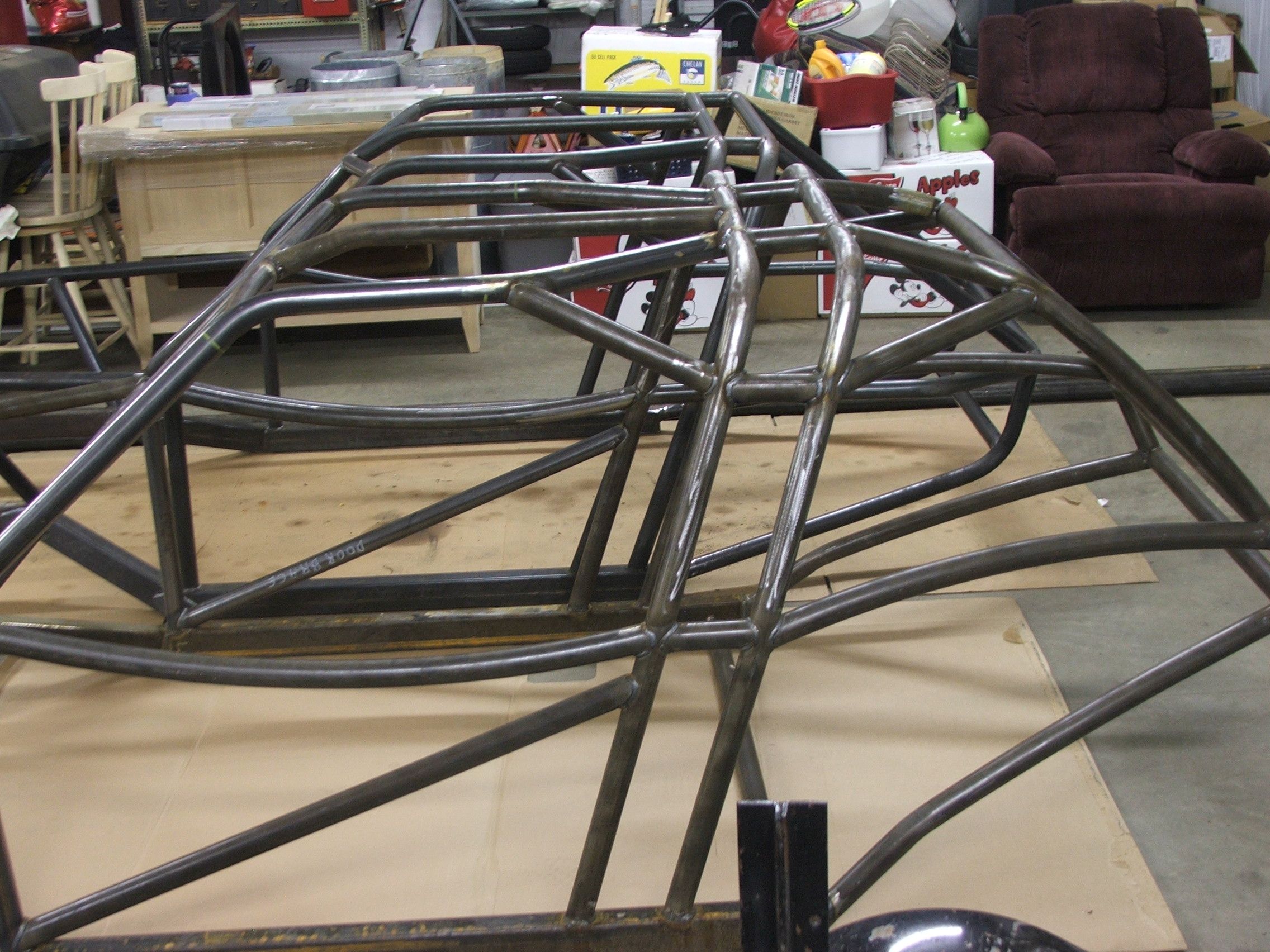

  • 3 seat and 2 seat together.JPG
    3 seat and 2 seat together.JPG
    586.3 KB · Views: 142

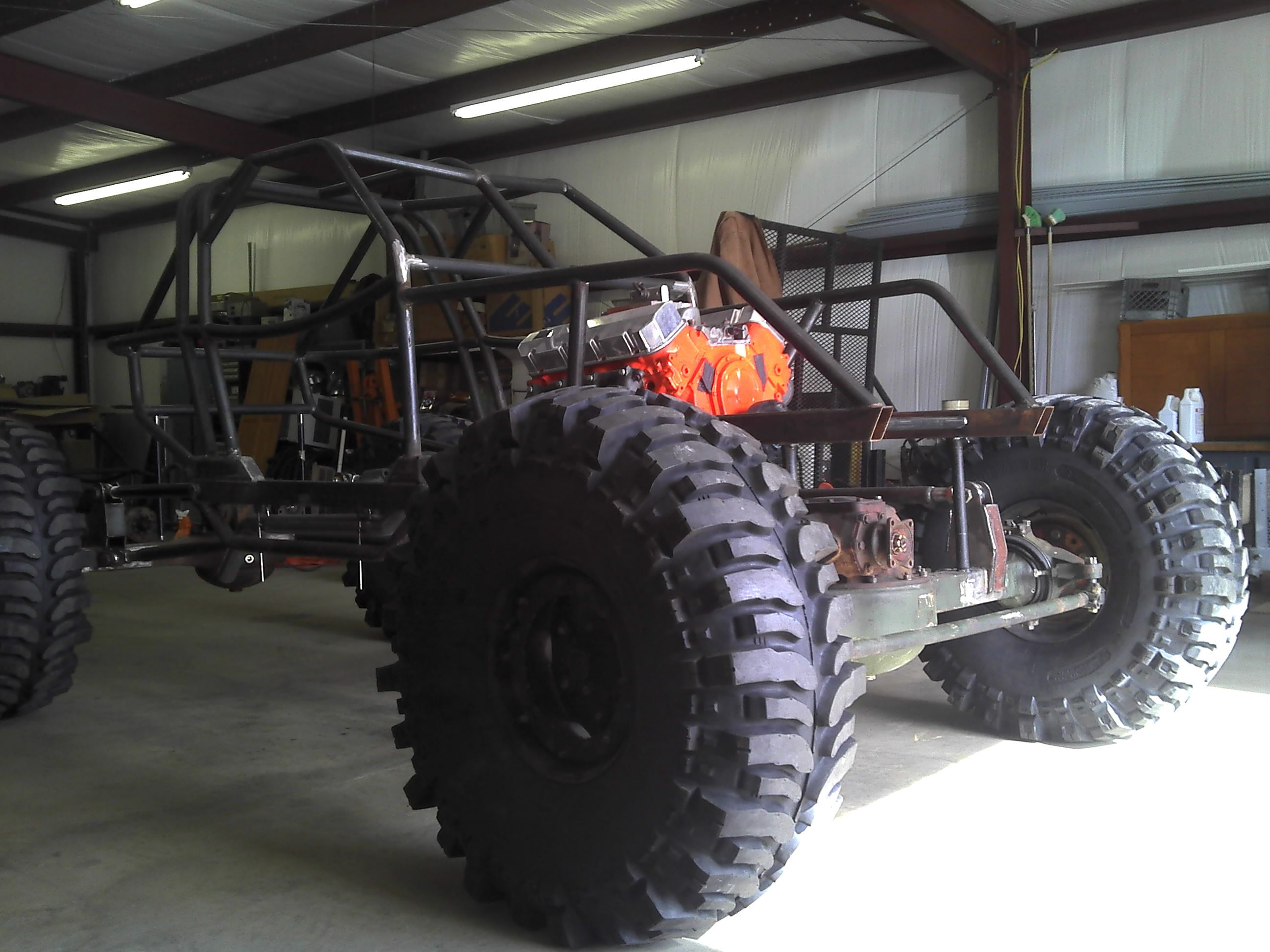

  • 2011-01-16_12-25-53_258.jpg
    392.2 KB · Views: 153

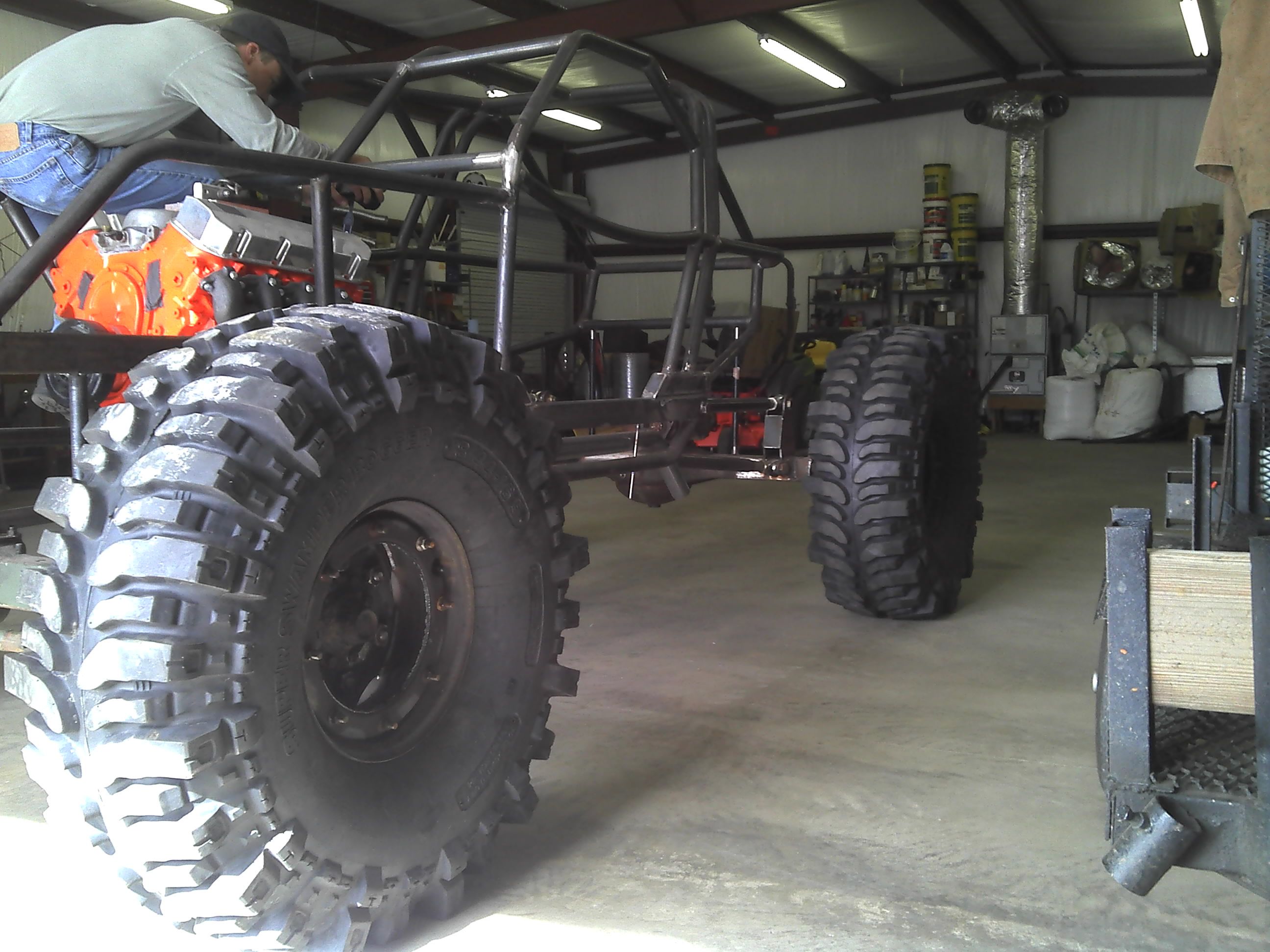

  • 2011-01-16_12-26-20_945.jpg
    451.7 KB · Views: 150

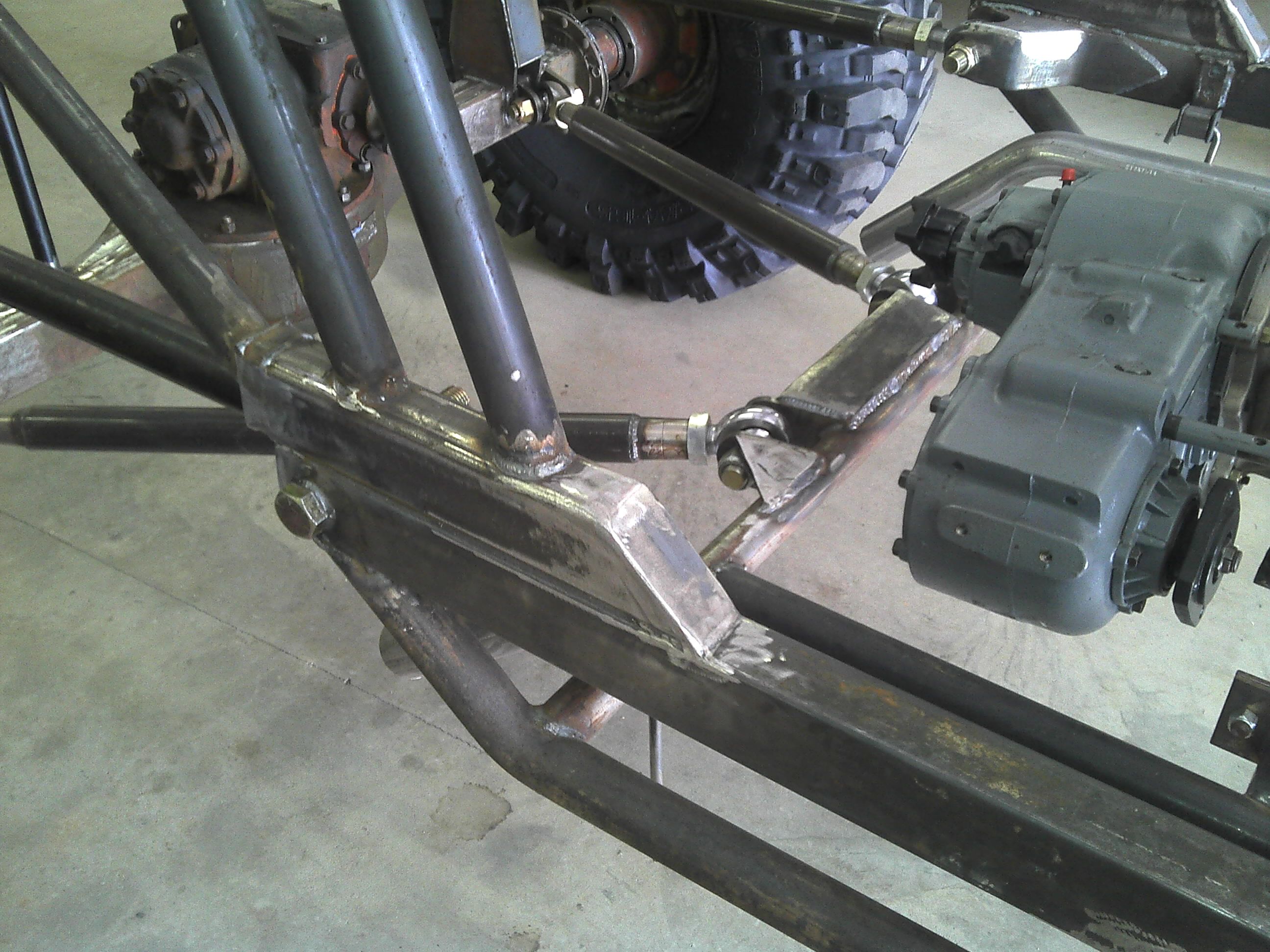

  • 2011-01-16_12-26-35_438.jpg
    631.1 KB · Views: 141
  • 2011-01-16_12-27-04_35.jpg
    480.7 KB · Views: 156
More pics. All input is welcome! Haters and all.


Attachments

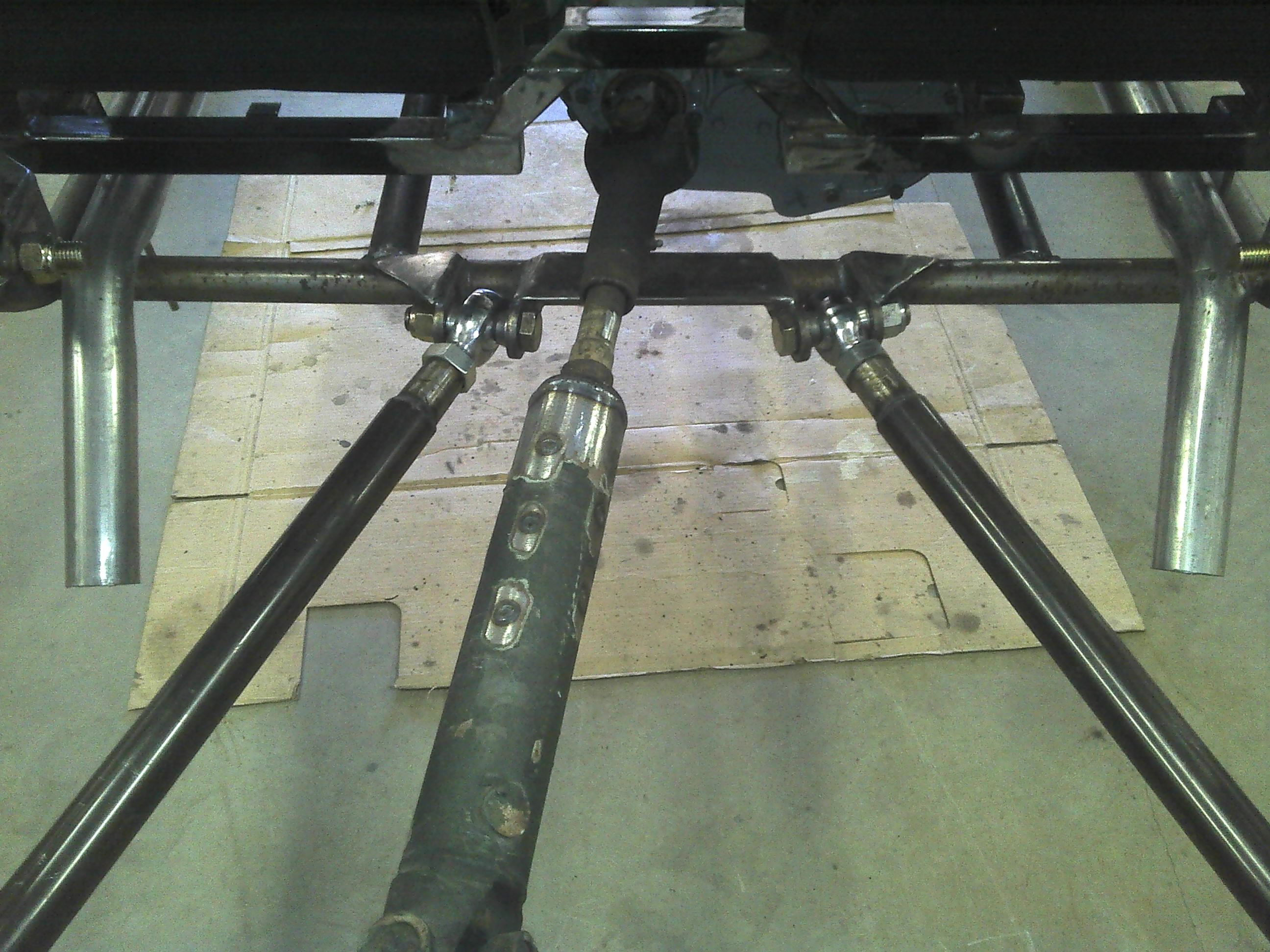

  • 2011-01-23_15-12-41_145.jpg
    620.9 KB · Views: 152

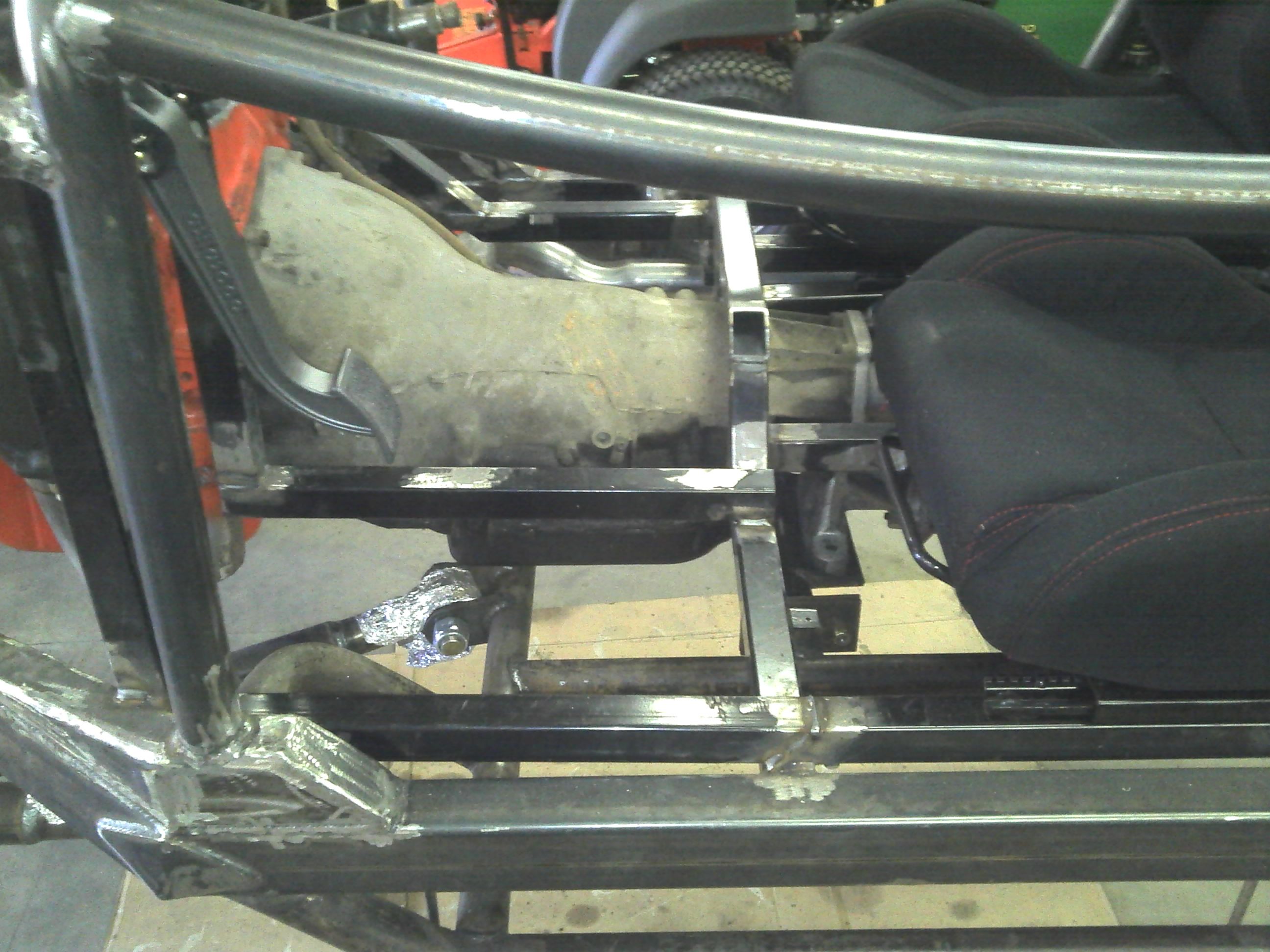

  • 2011-01-23_15-11-47_695.jpg
    456.8 KB · Views: 149
  • 2011-01-23_15-11-31_510.jpg
    691 KB · Views: 155
  • 2011-01-23_15-11-15_165.jpg
    698.6 KB · Views: 148

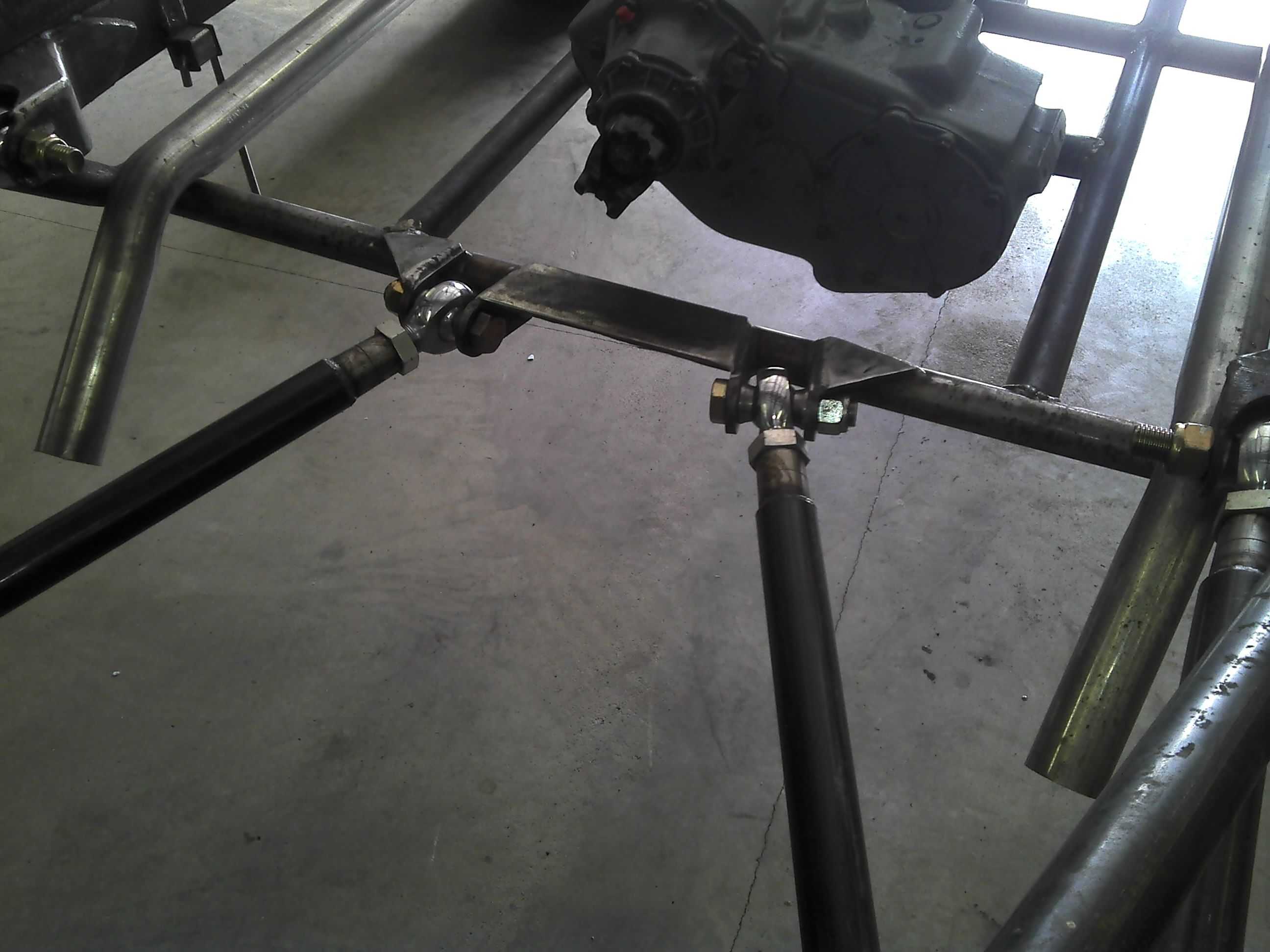

  • 2011-01-16_12-27-26_163.jpg
    336 KB · Views: 157

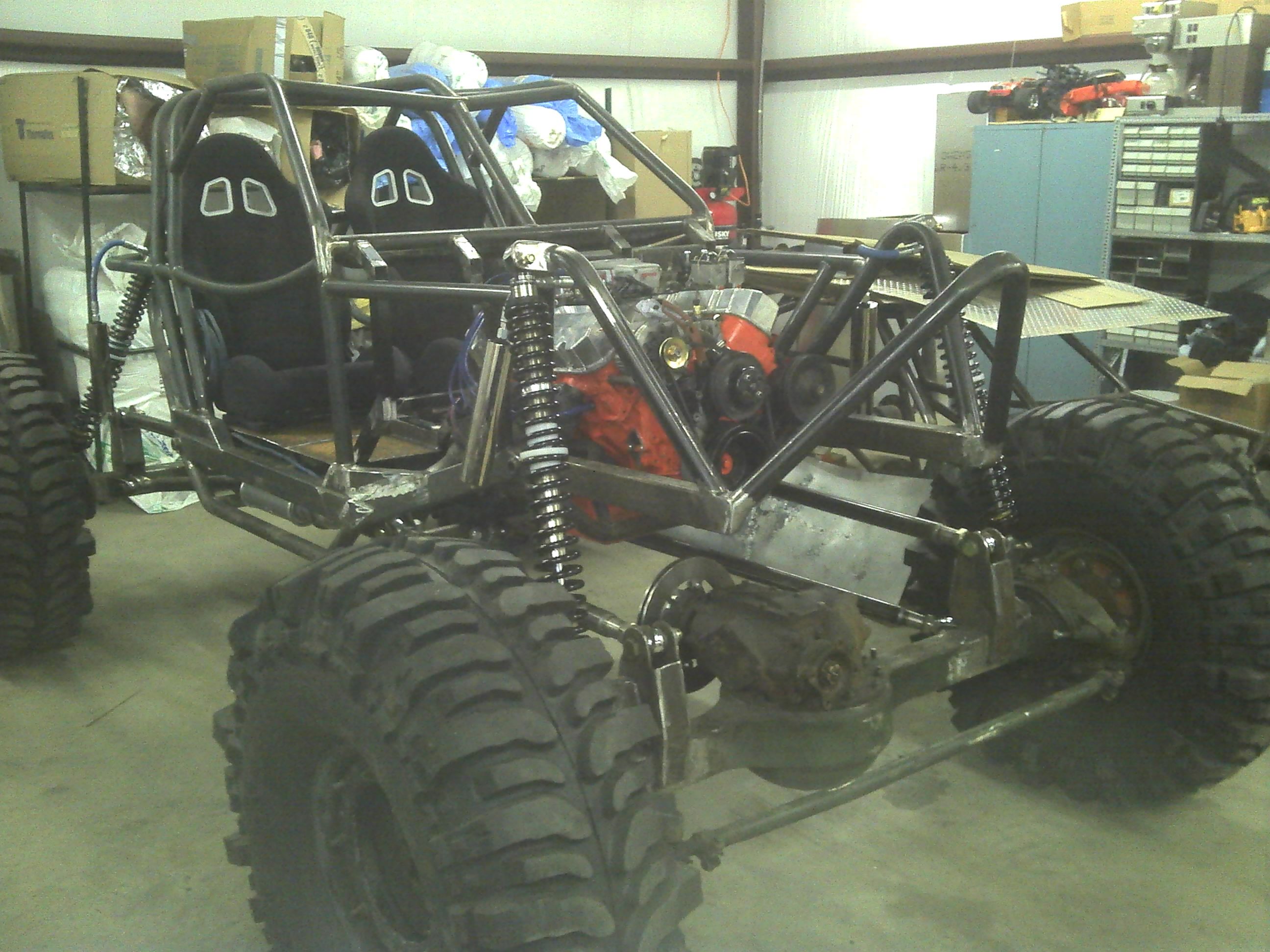

More pics


Attachments

  • 2011-01-23_15-12-54_43.jpg
    372 KB · Views: 151

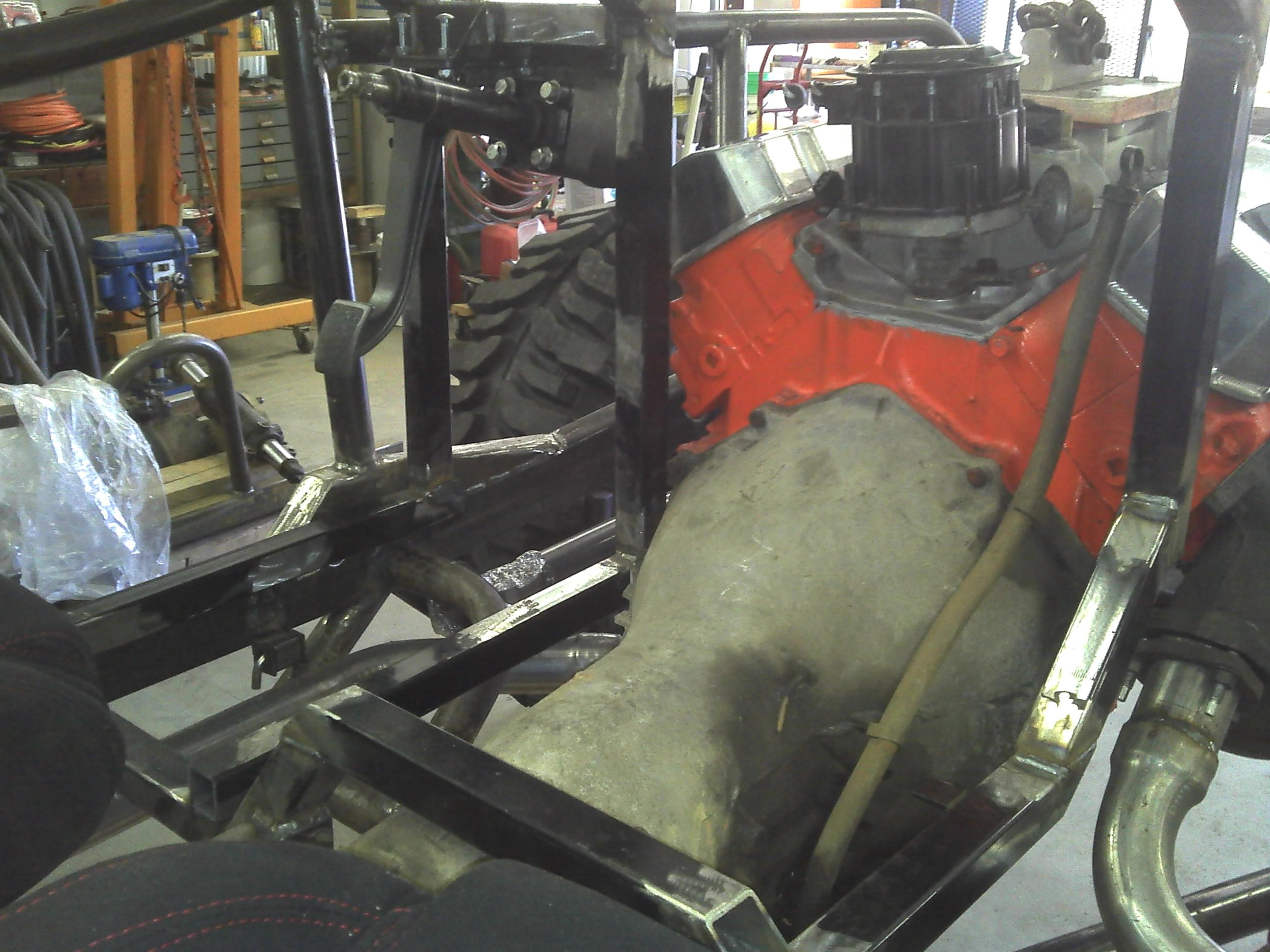

  • 2011-01-23_15-13-12_265.jpg
    477.2 KB · Views: 138
  • buggy front left.jpg
    buggy front left.jpg
    522.6 KB · Views: 146

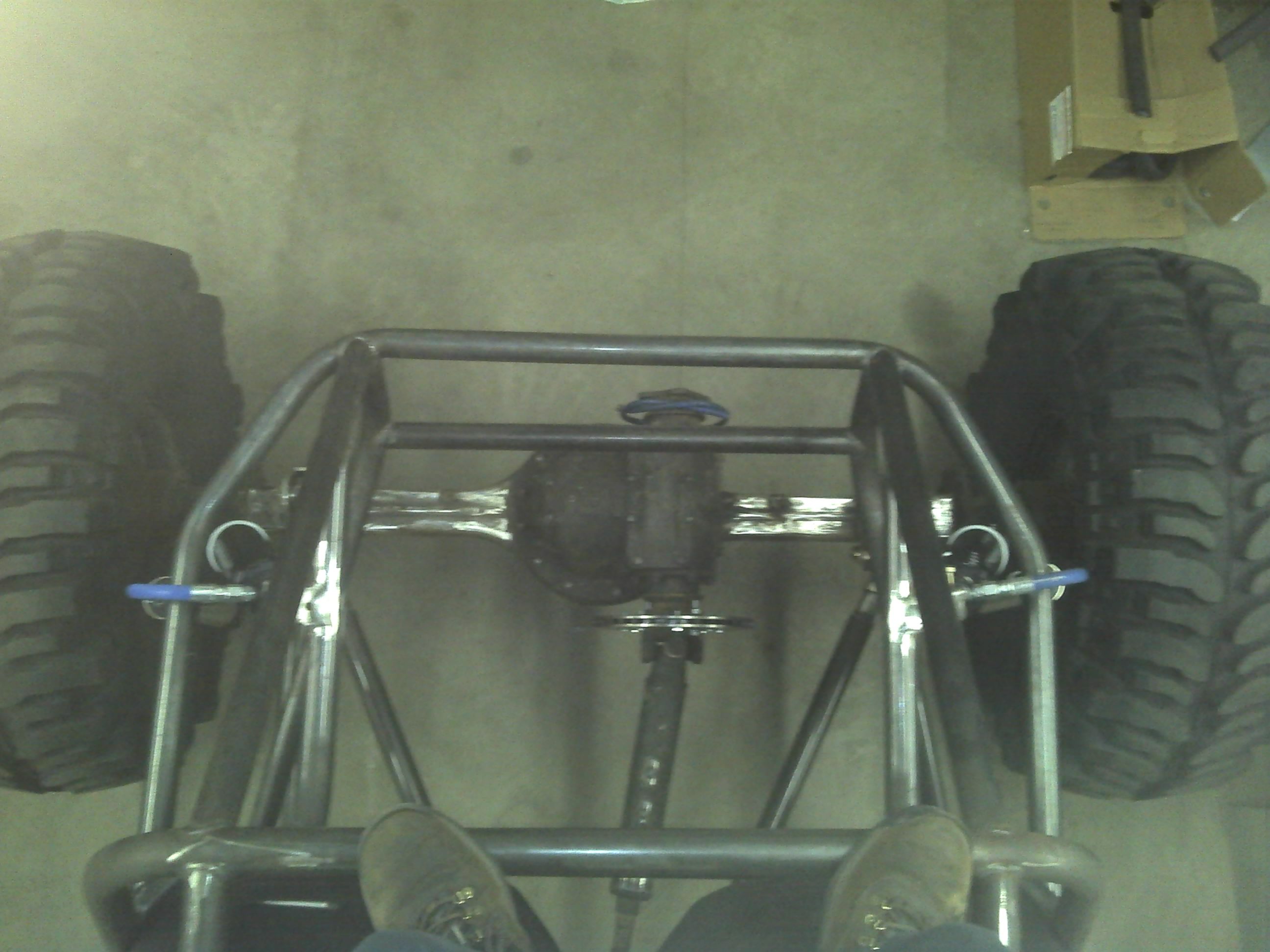

  • buggy rear.jpg
    buggy rear.jpg
    297.2 KB · Views: 136

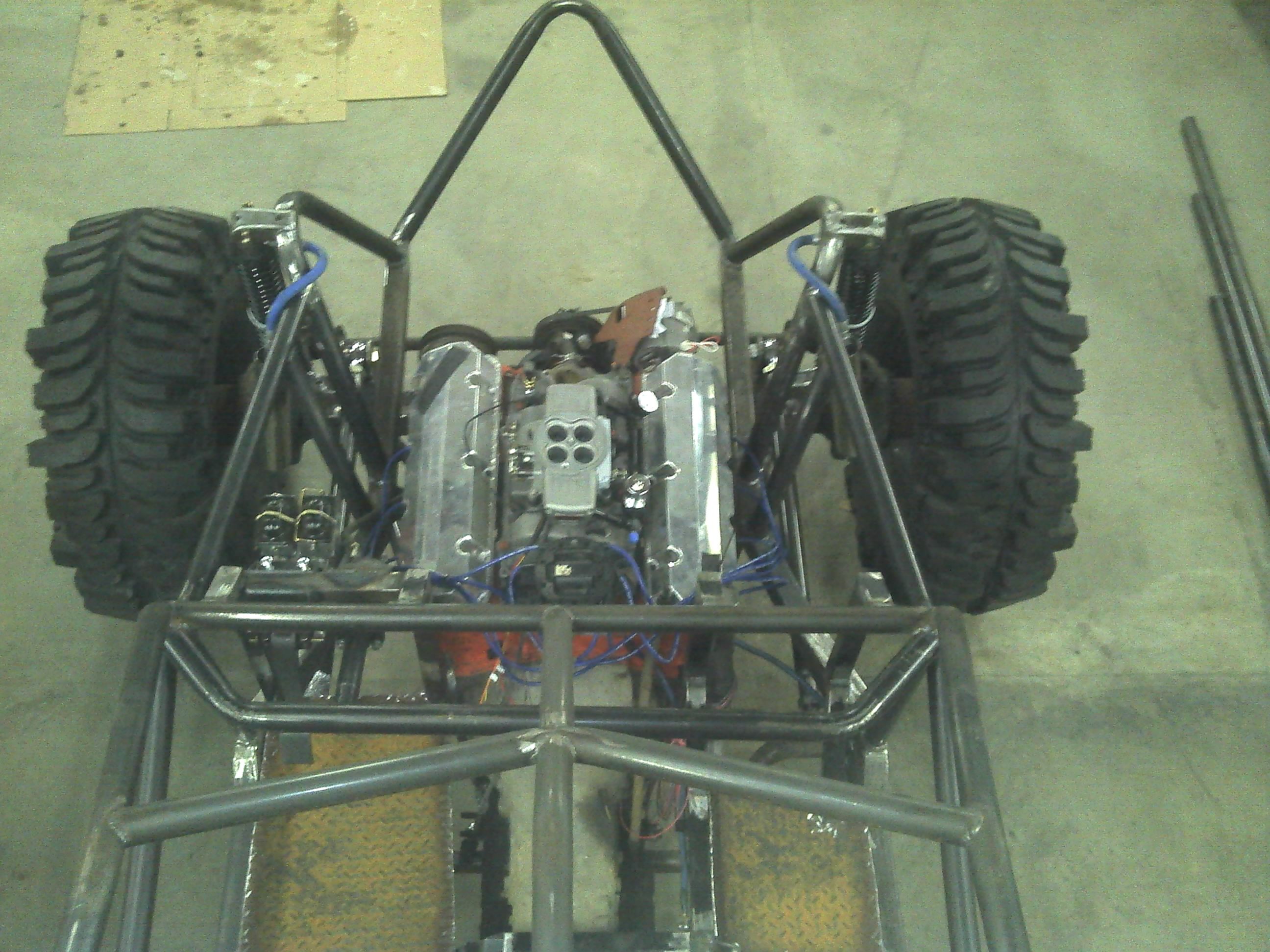

  • buggy top.jpg
    buggy top.jpg
    565.9 KB · Views: 149

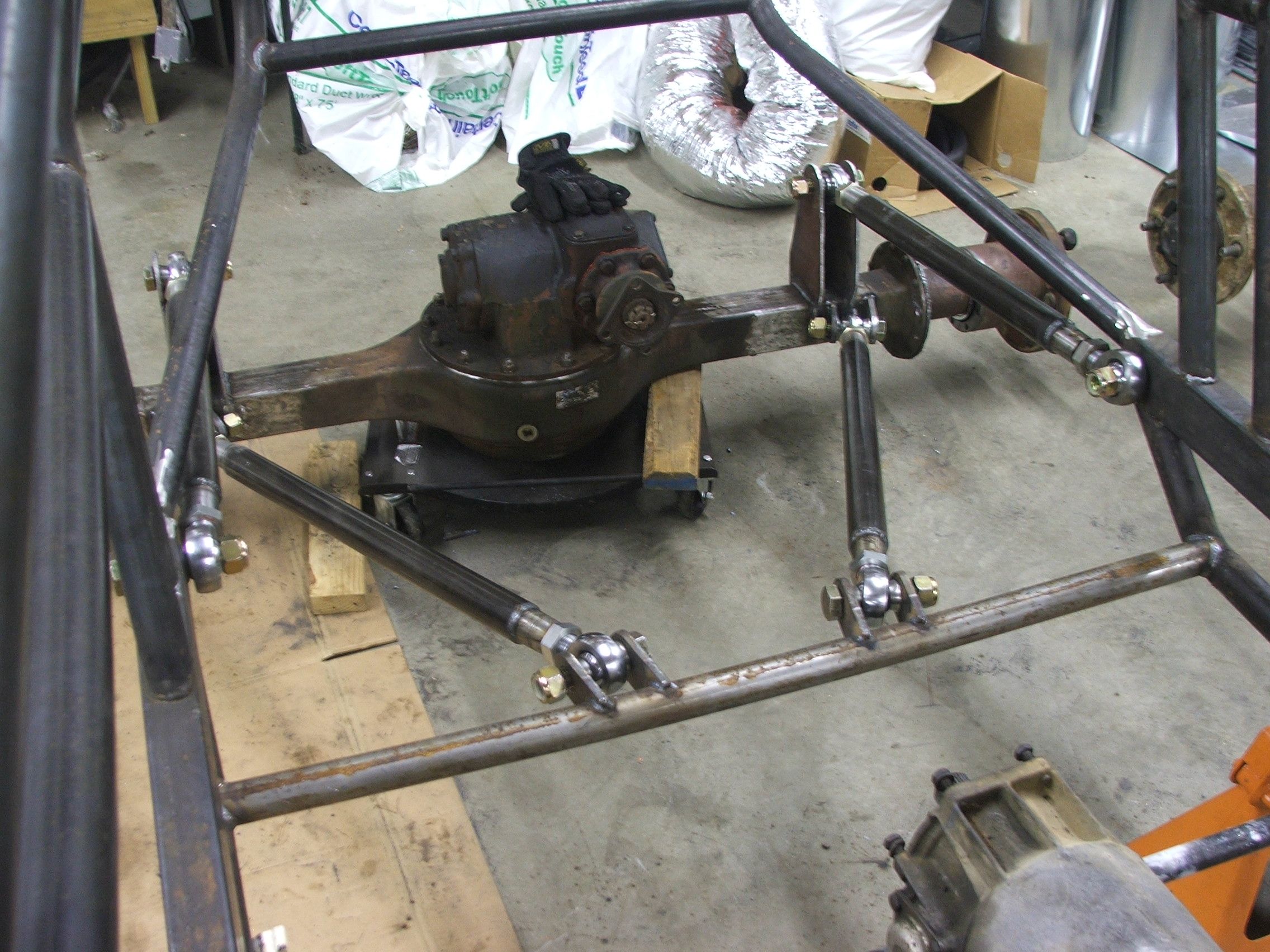

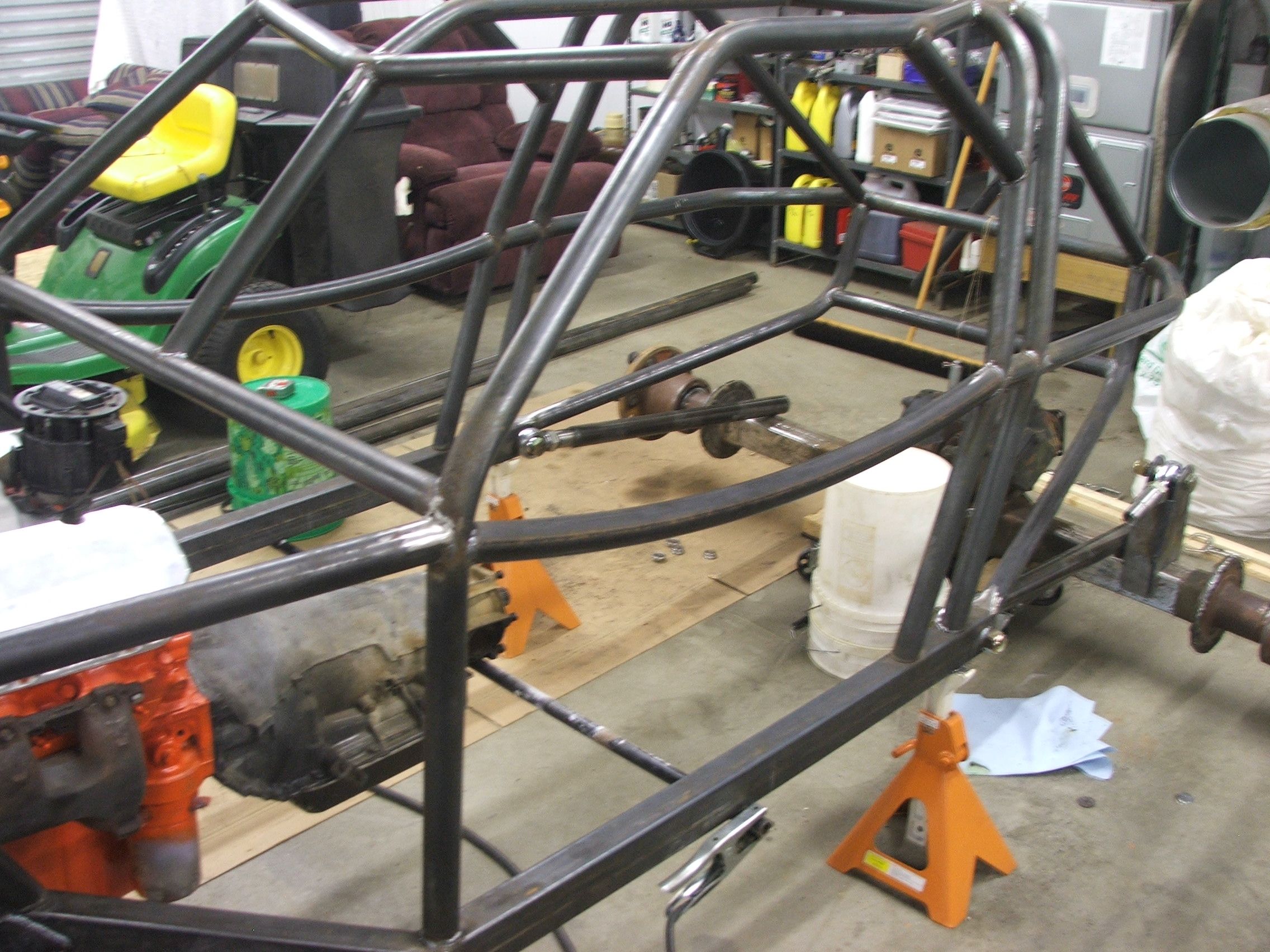

more pics


Attachments

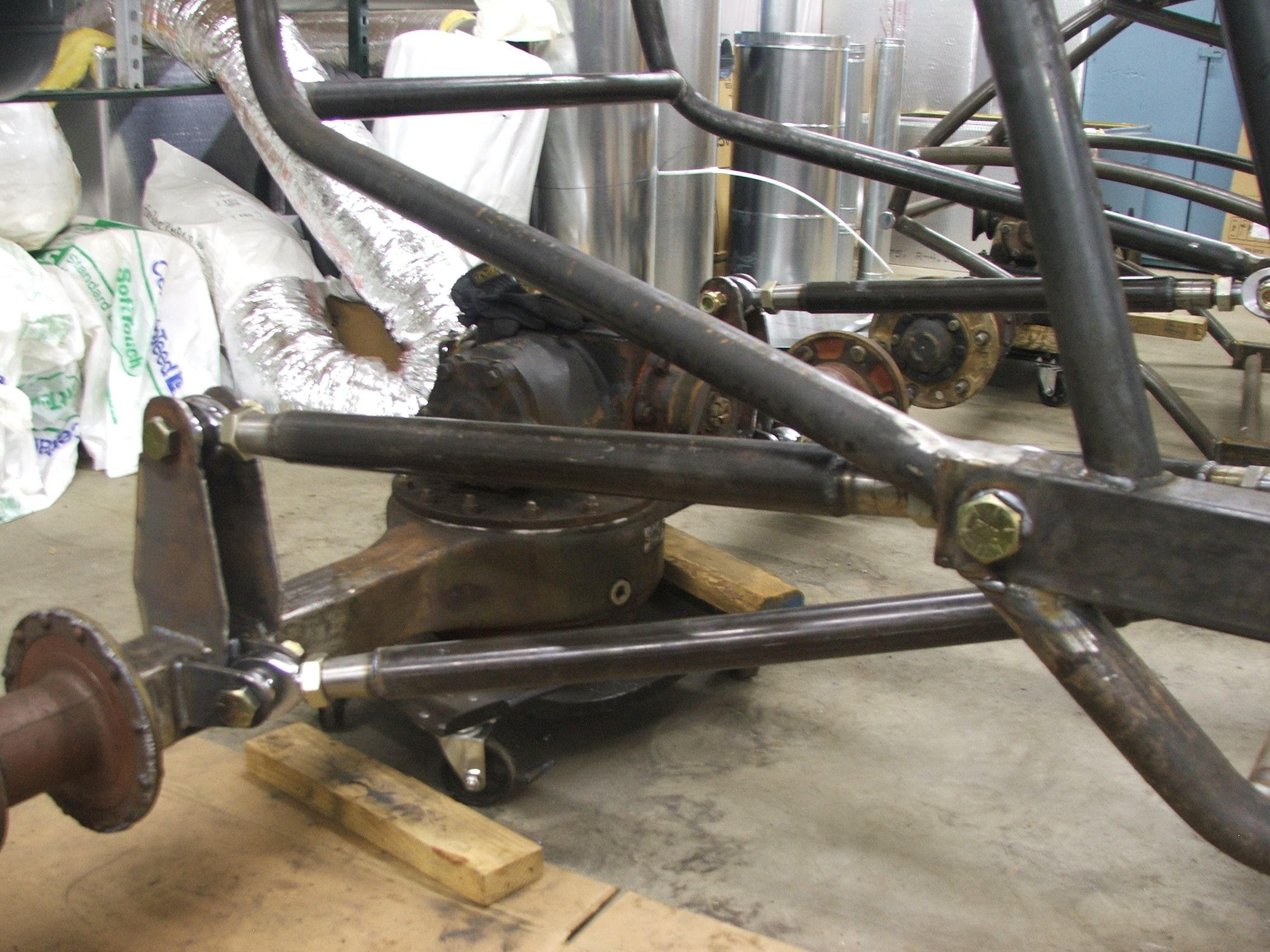

  • DSCF4979.JPG
    477.5 KB · Views: 184
  • DSCF4978.JPG
    581.4 KB · Views: 155
  • DSCF4972.JPG
    406.1 KB · Views: 154
  • DSCF4971.JPG
    574 KB · Views: 138
  • DSCF4970.JPG
    479.1 KB · Views: 142

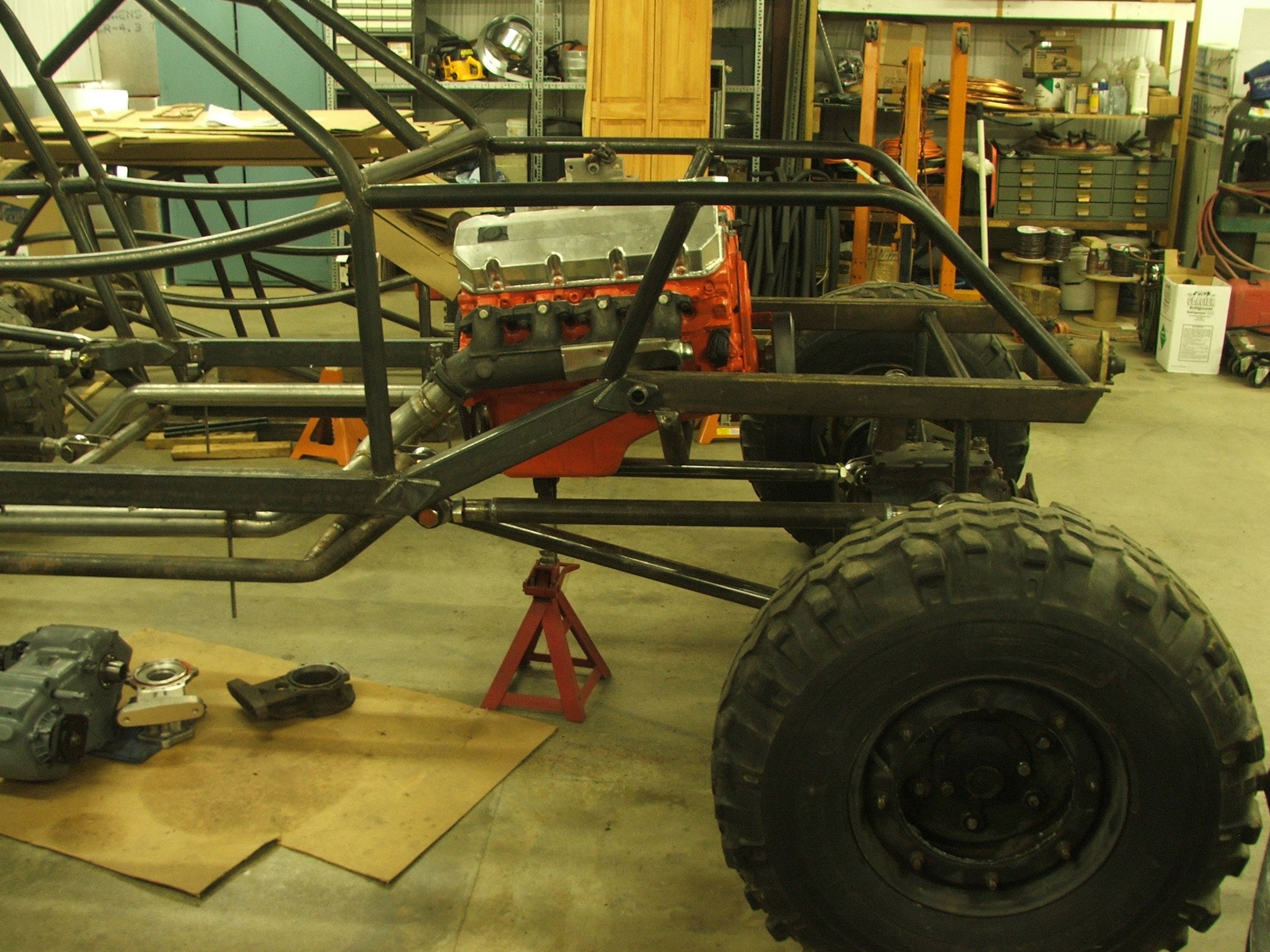

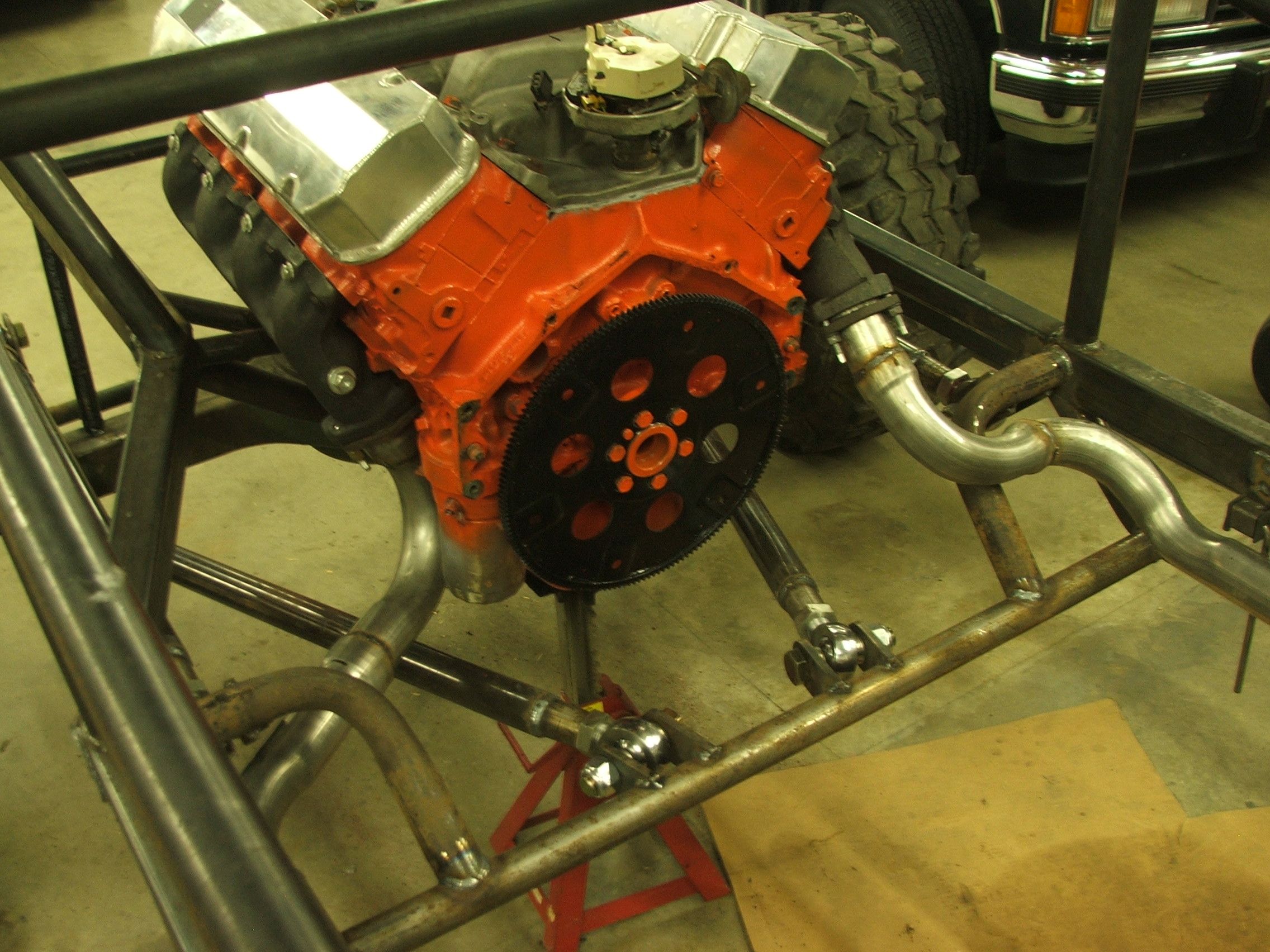

more pics :puke:


Attachments

  • DSCF4980.JPG
    584.9 KB · Views: 163
  • DSCF4981.JPG
    593.5 KB · Views: 159
  • DSCF4982.JPG
    622.3 KB · Views: 152
  • DSCF4984.JPG
    543.4 KB · Views: 150
  • DSCF4983.JPG
    491.1 KB · Views: 145

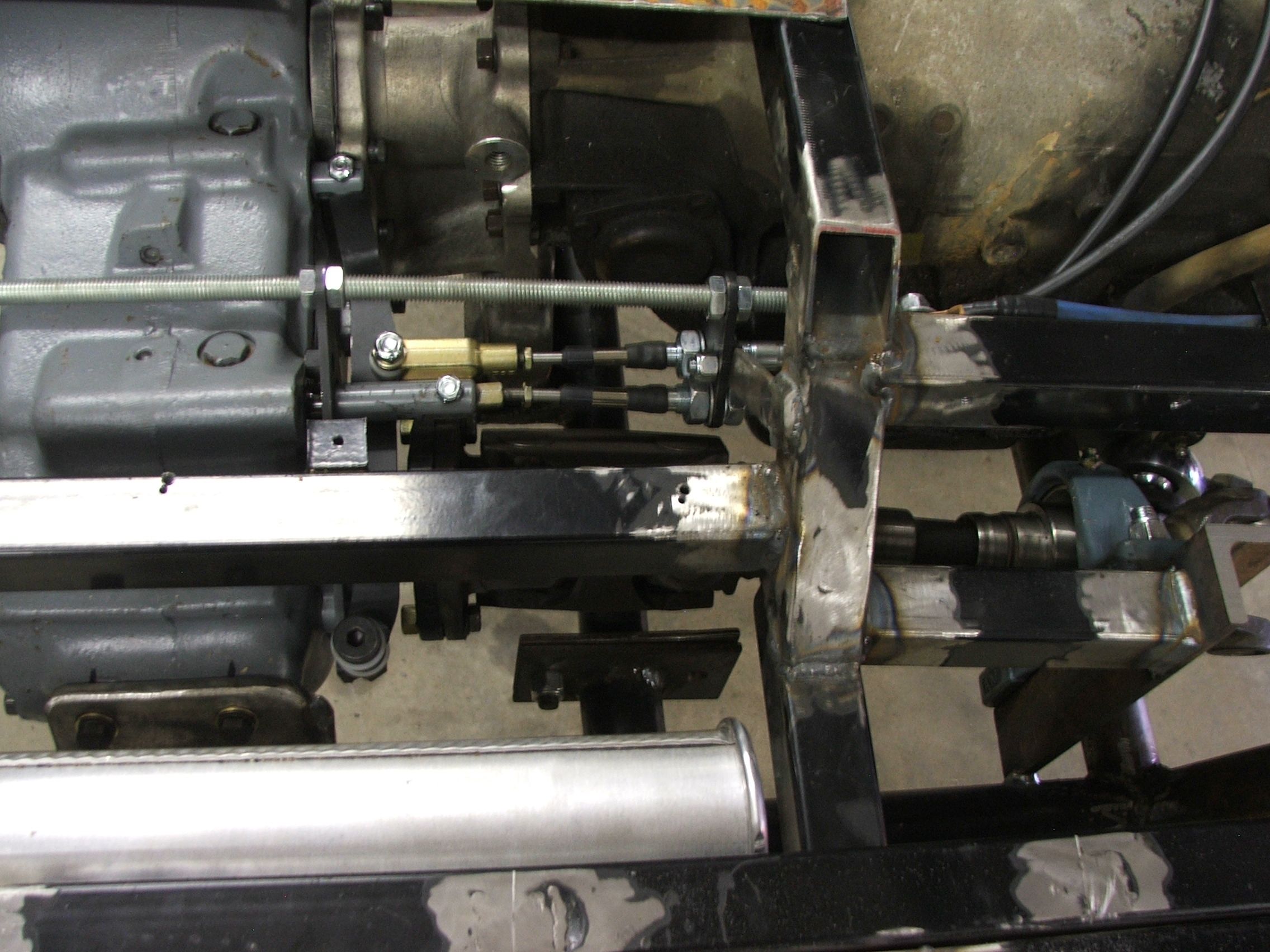

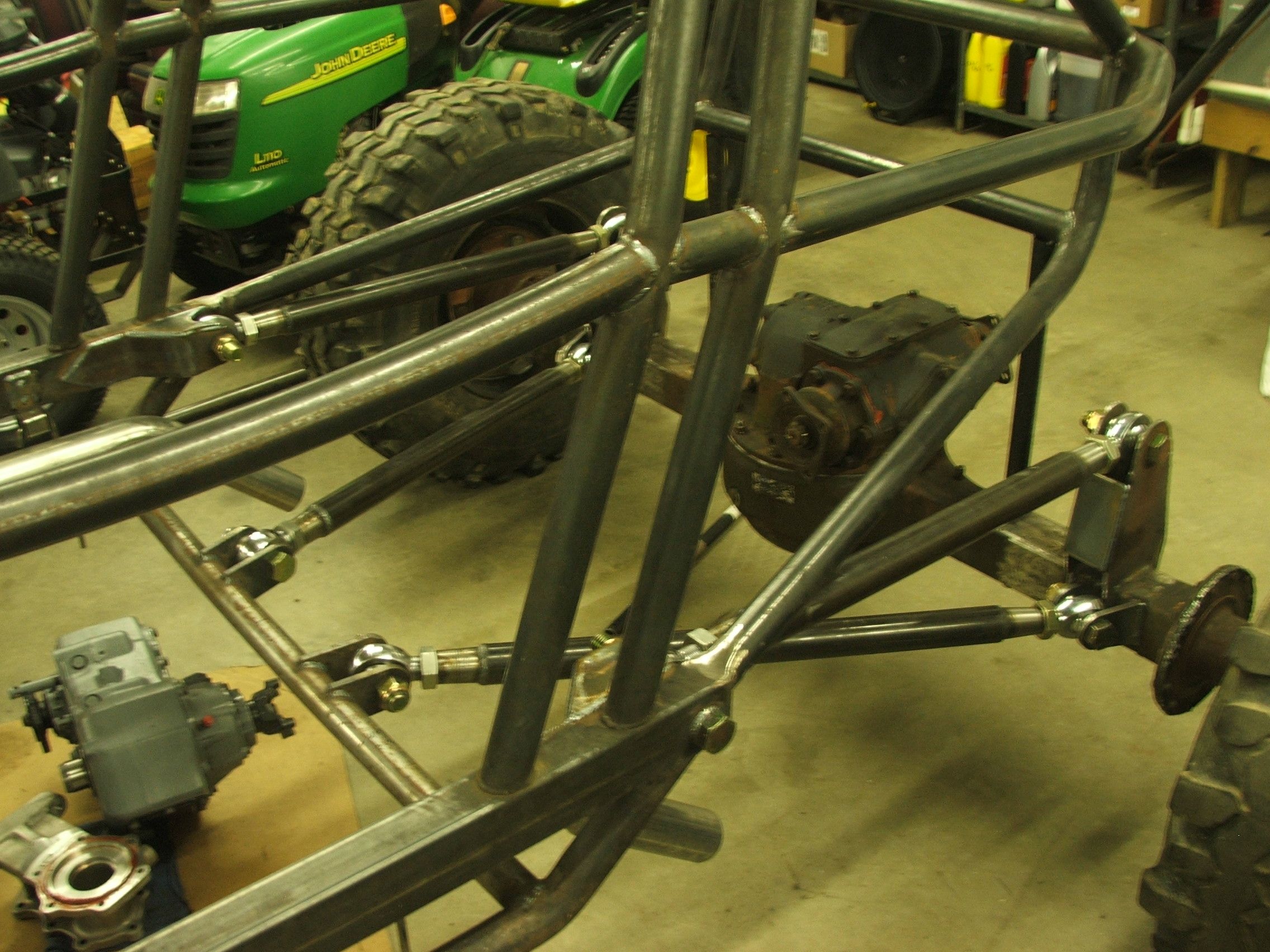

more pics


Attachments

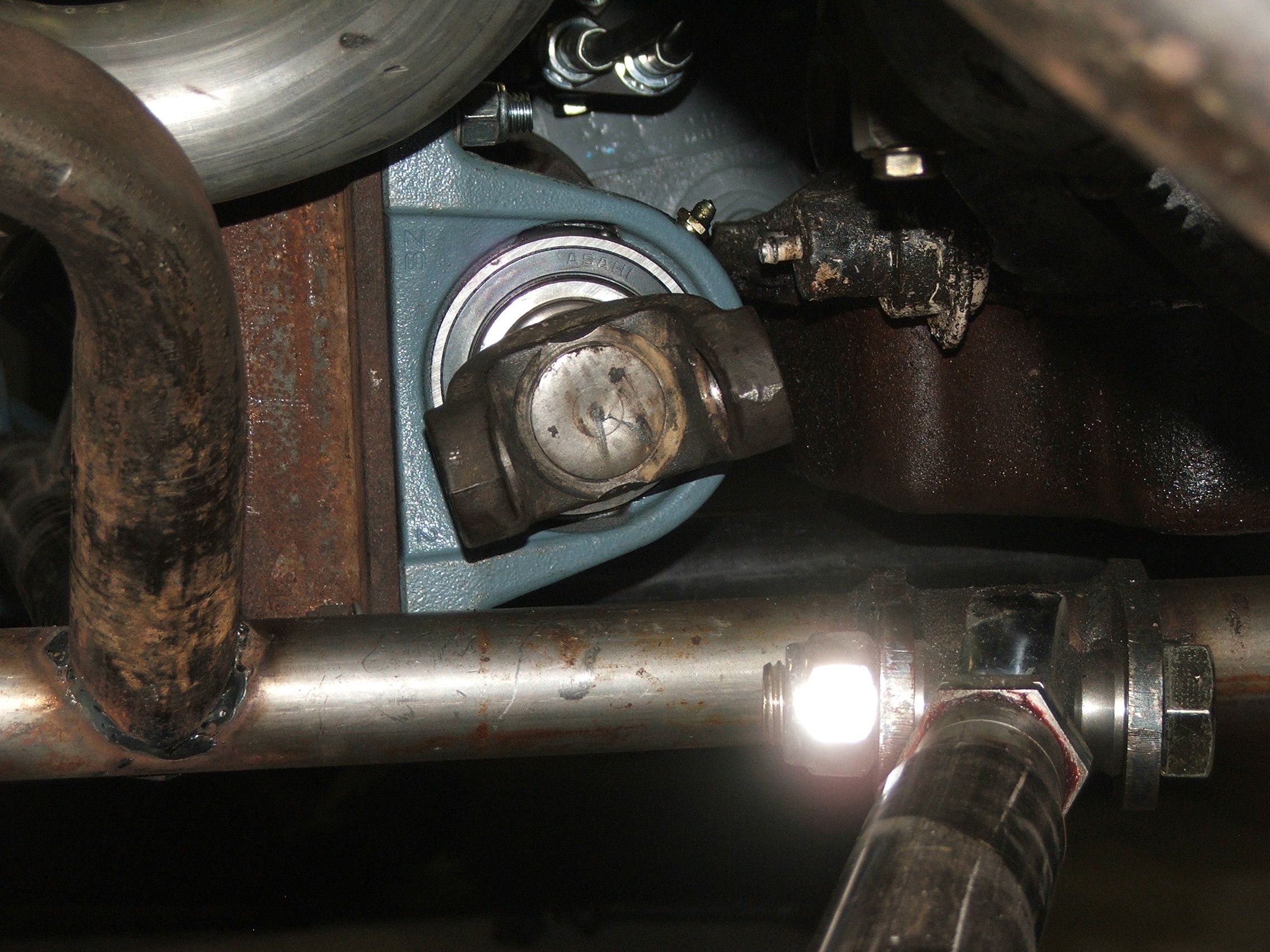

  • DSCF5035.JPG
    588.8 KB · Views: 164

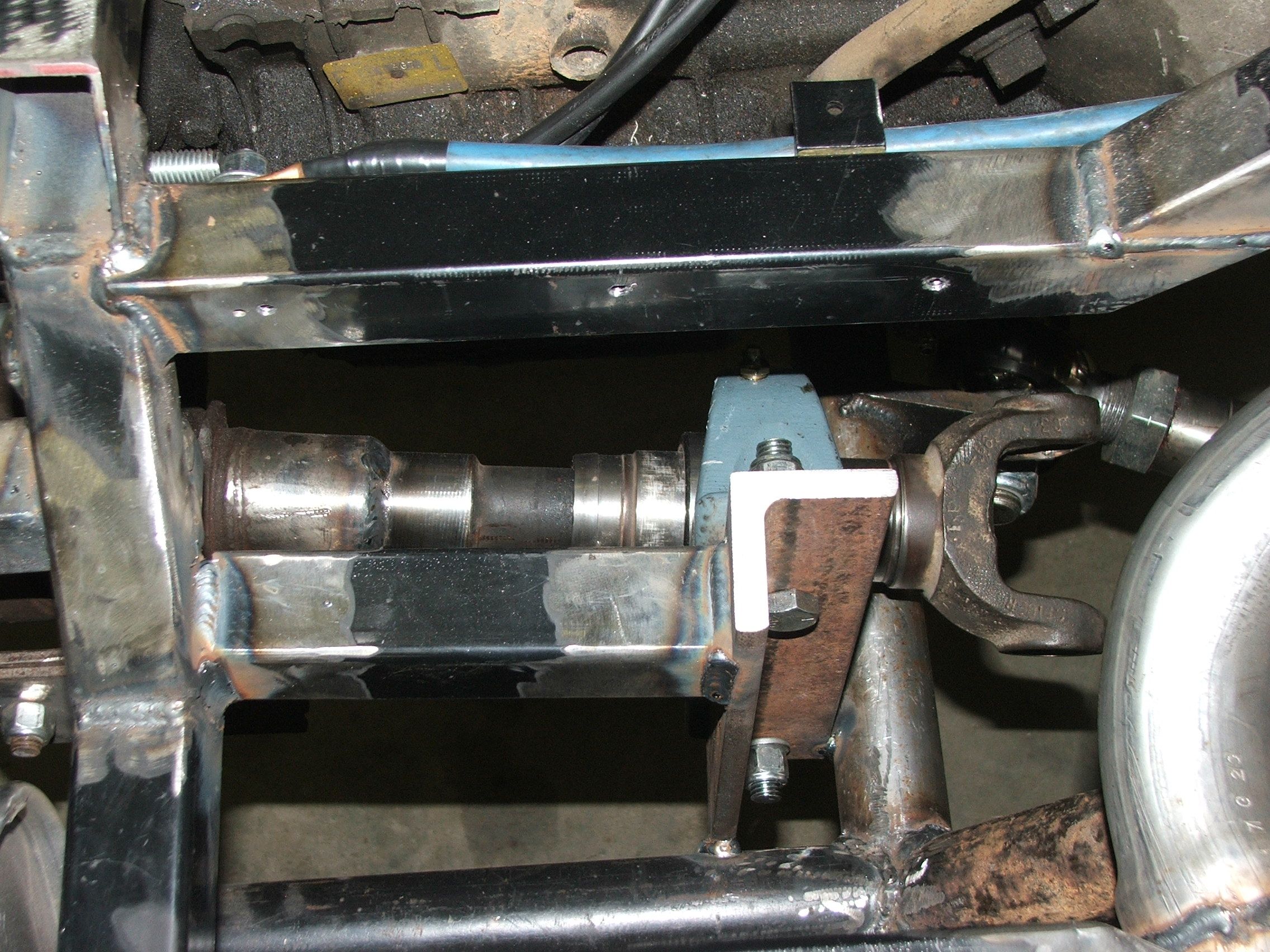

  • DSCF5034.JPG
    688.9 KB · Views: 147
  • DSCF5033.JPG
    348.4 KB · Views: 144
  • DSCF5032.JPG
    432.5 KB · Views: 153
  • DSCF4985.JPG
    569.5 KB · Views: 154
even more pics. Last ones for now :drinkers:


Attachments

  • DSCF5036.JPG
    433.5 KB · Views: 133

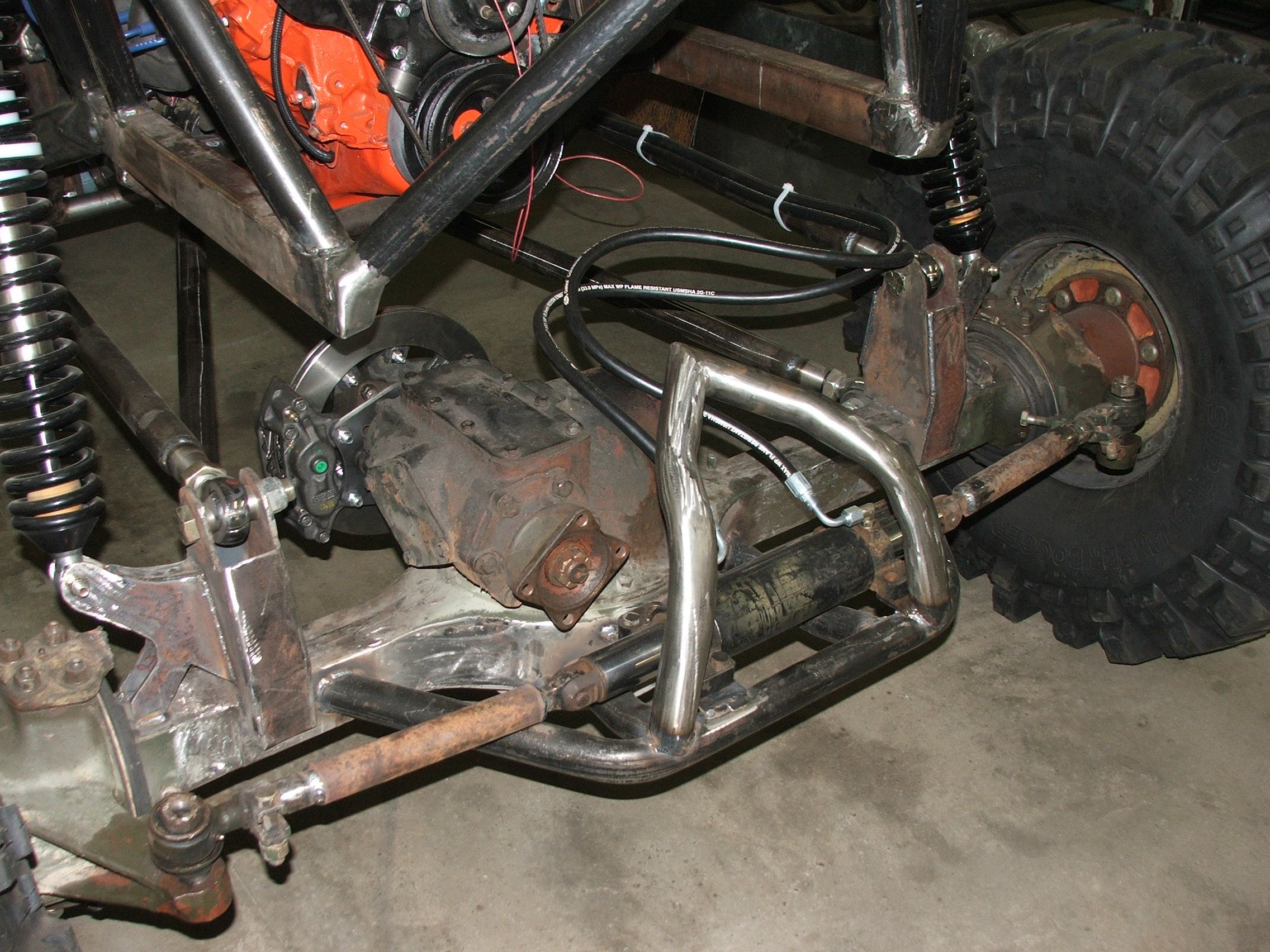

  • DSCF5037.JPG
    680.4 KB · Views: 146

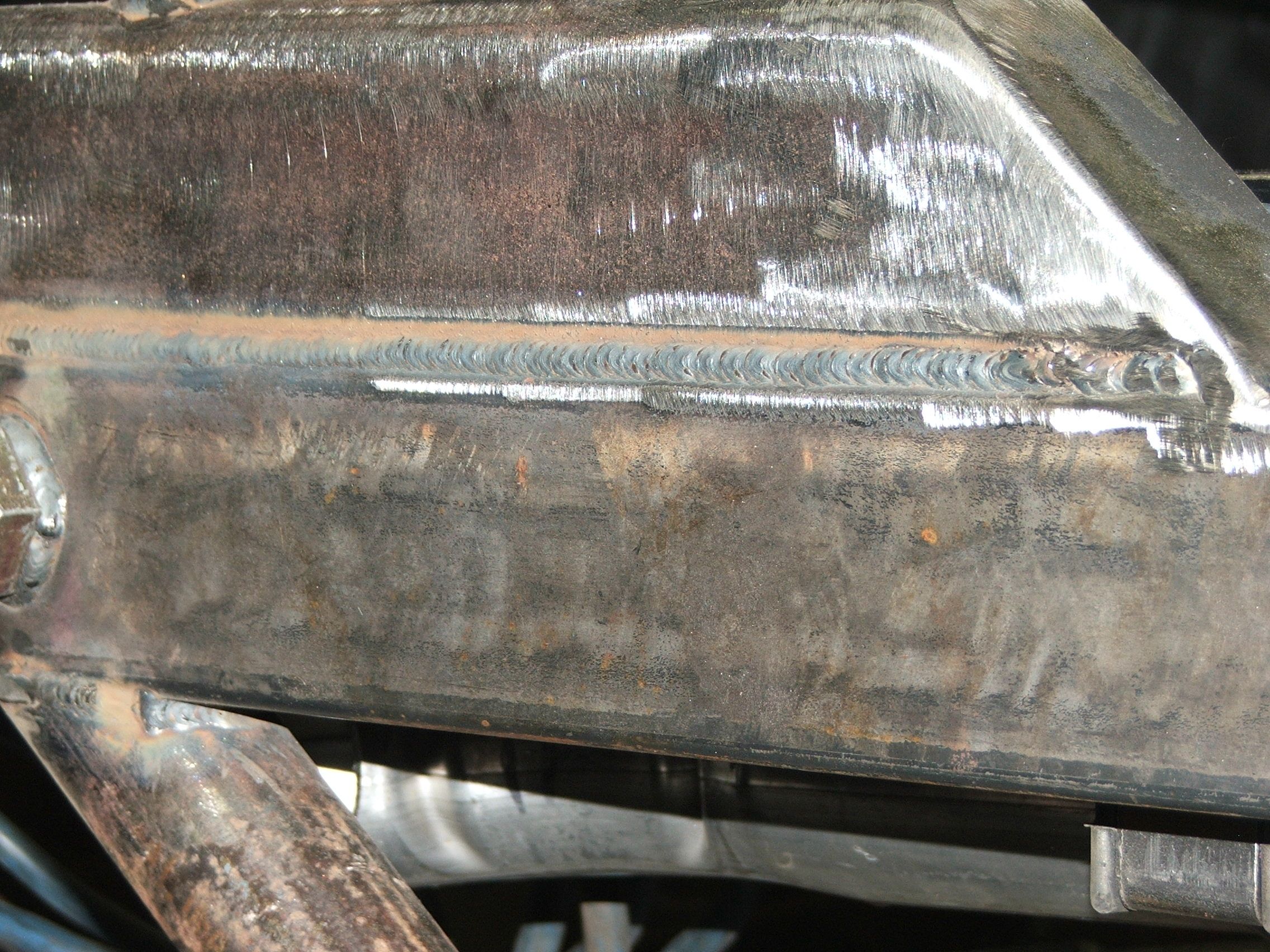

  • DSCF5039.JPG
    762 KB · Views: 148

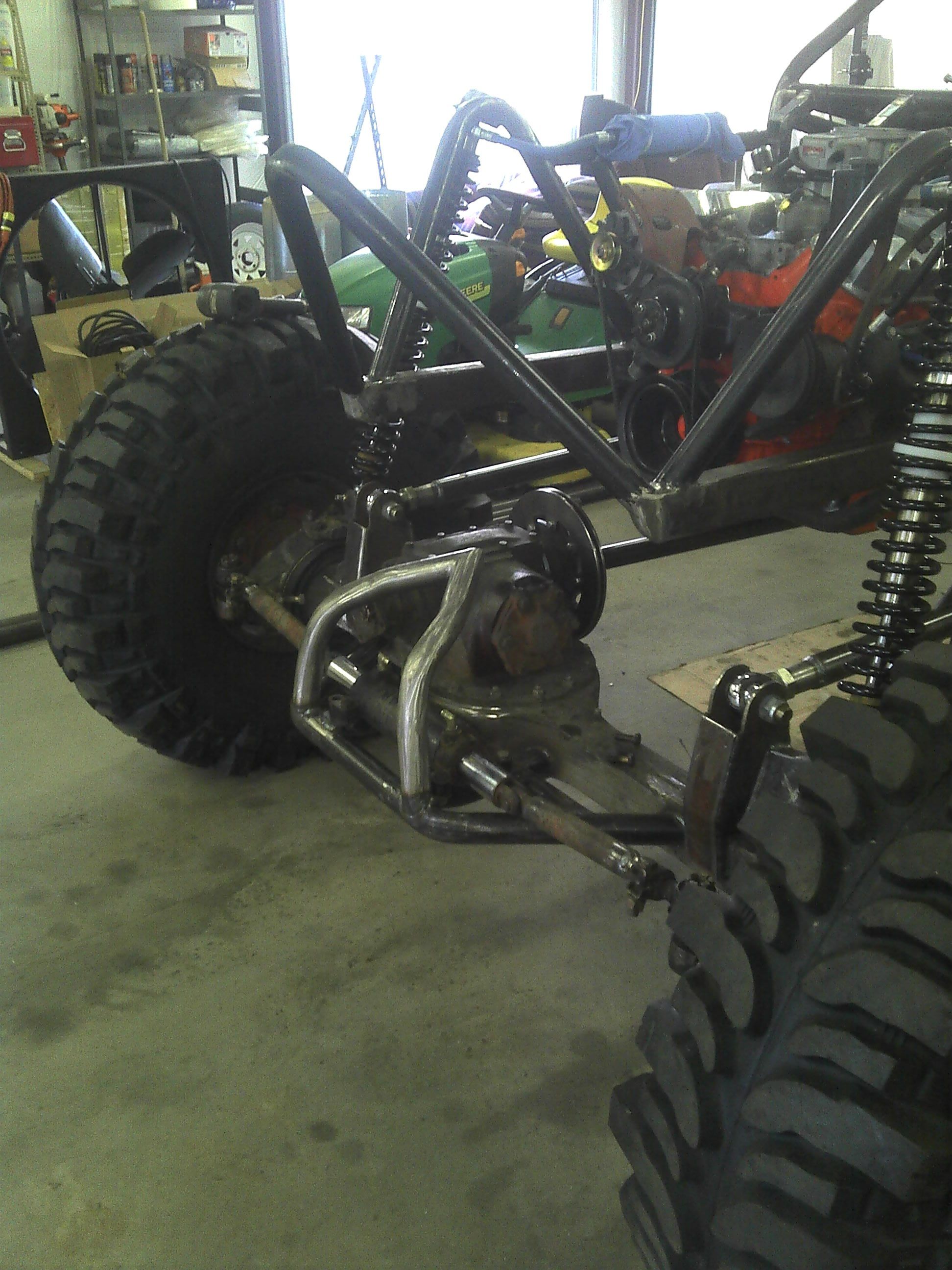

  • horn front.jpg
    horn front.jpg
    540.6 KB · Views: 141

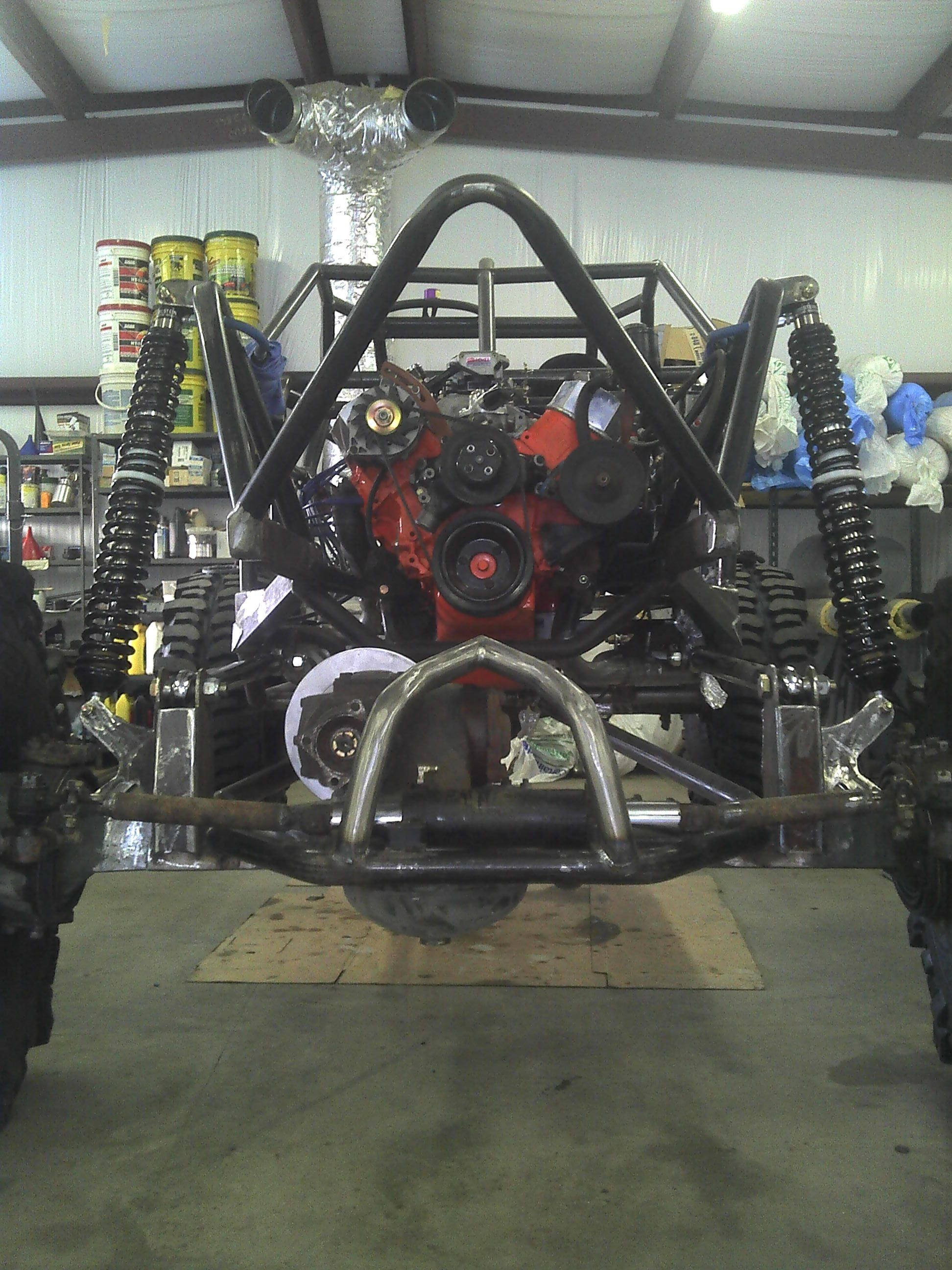

  • horn side.jpg
    horn side.jpg
    619.6 KB · Views: 151

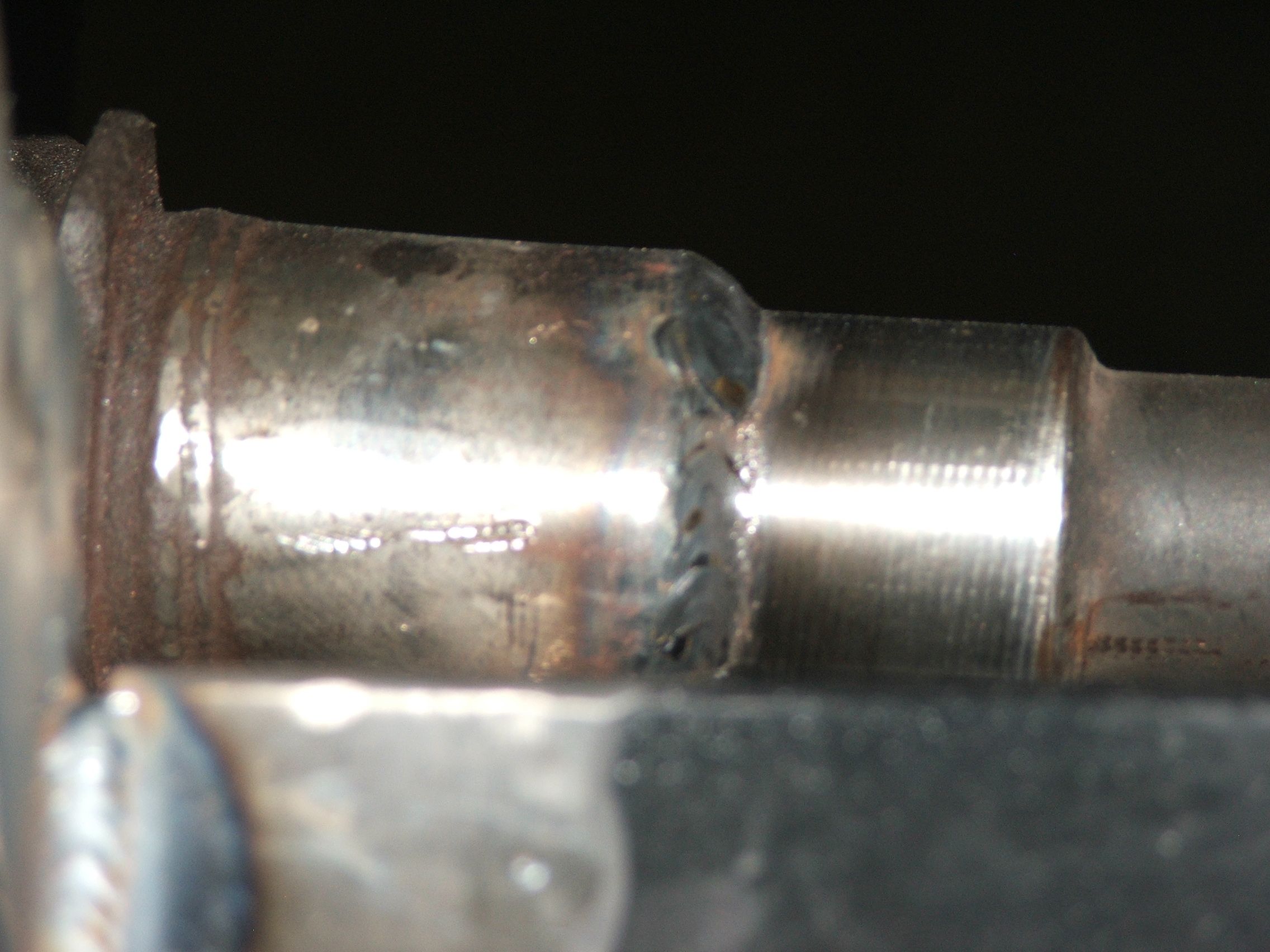

what link inserts are you using? They look a tad long after the link material.. i had to mod mine which looked similar

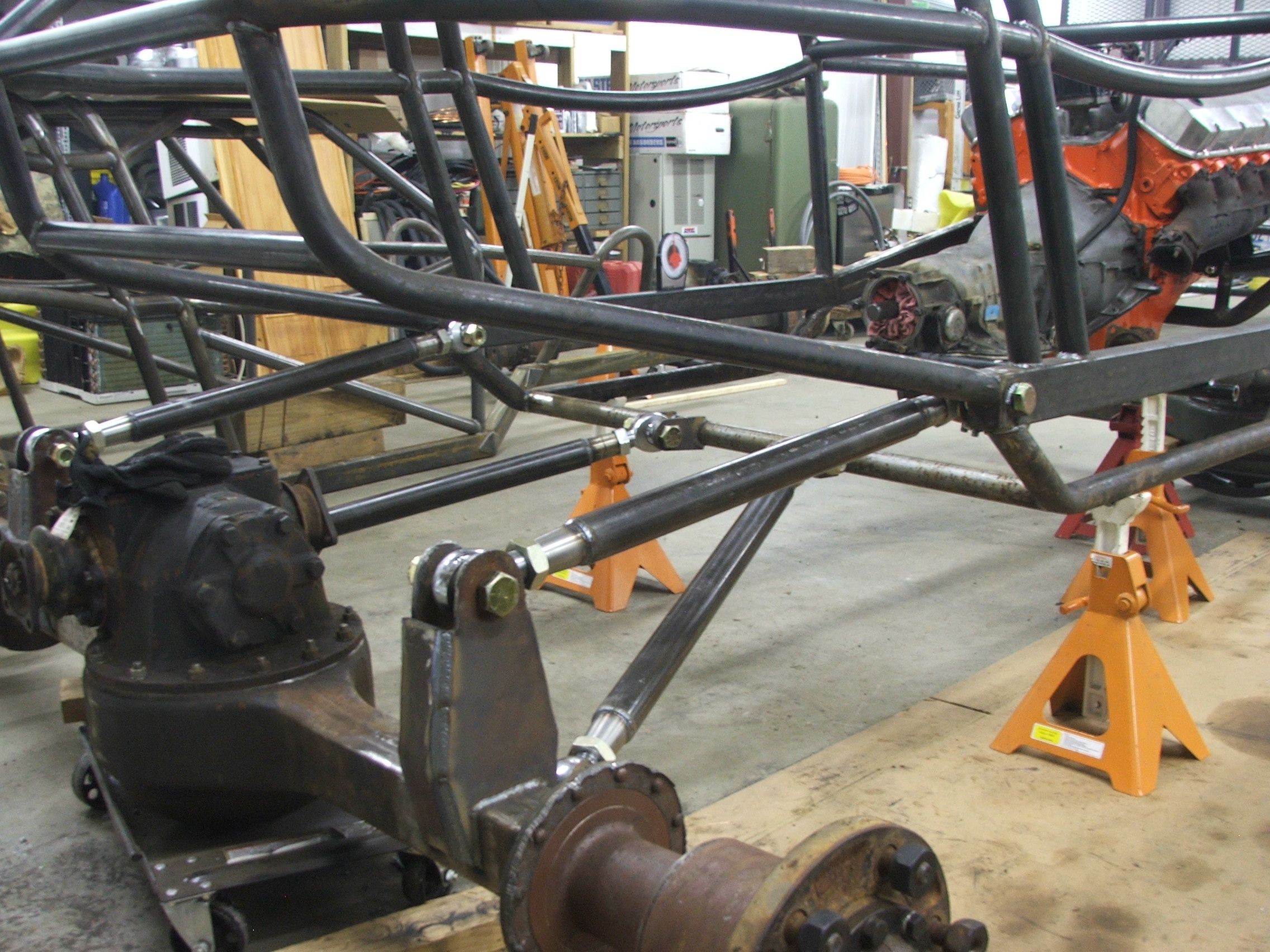

Man i was seriouly worried when i first saw your upper rear link mounts but then scrolled down and seen you did put them in a double shear. Looks good. thumb.gif

The link inserts are long but threaded all the way. They go into the pipe about 2". They save a little pipe due to the length. As far as the strength, these are the first that I have seen and we will put them to the test and tell about how they do. booyang

They look like the ones im using...
Although theyre threaded all the way they seemed a tad long
I turned mine up in my lathe...... and by lathe i mean vice and porta-band :dblthumb:




Sweet build by the way :dblthumb:
