Gm 14 bolt rear steer

[EddieHall]

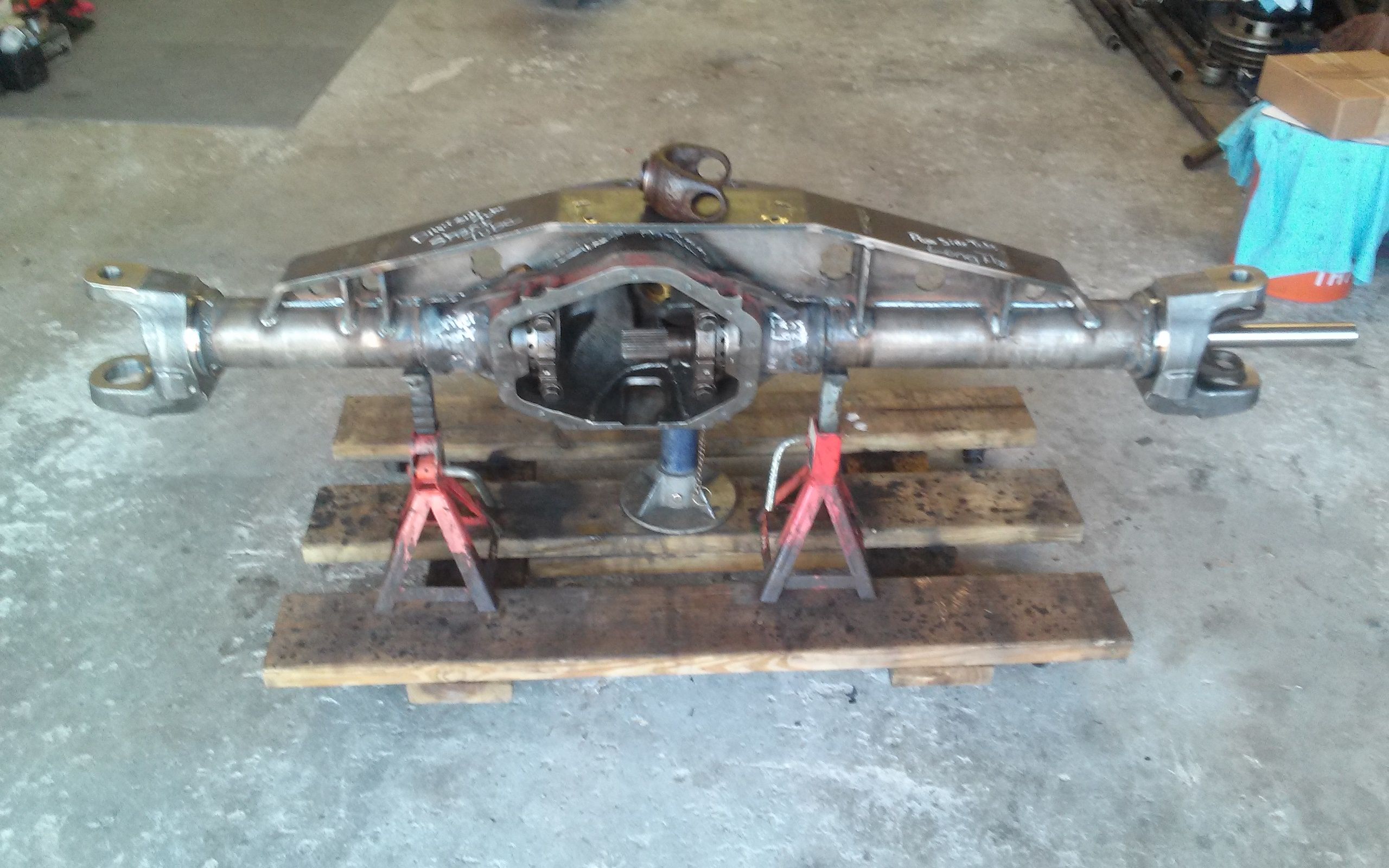

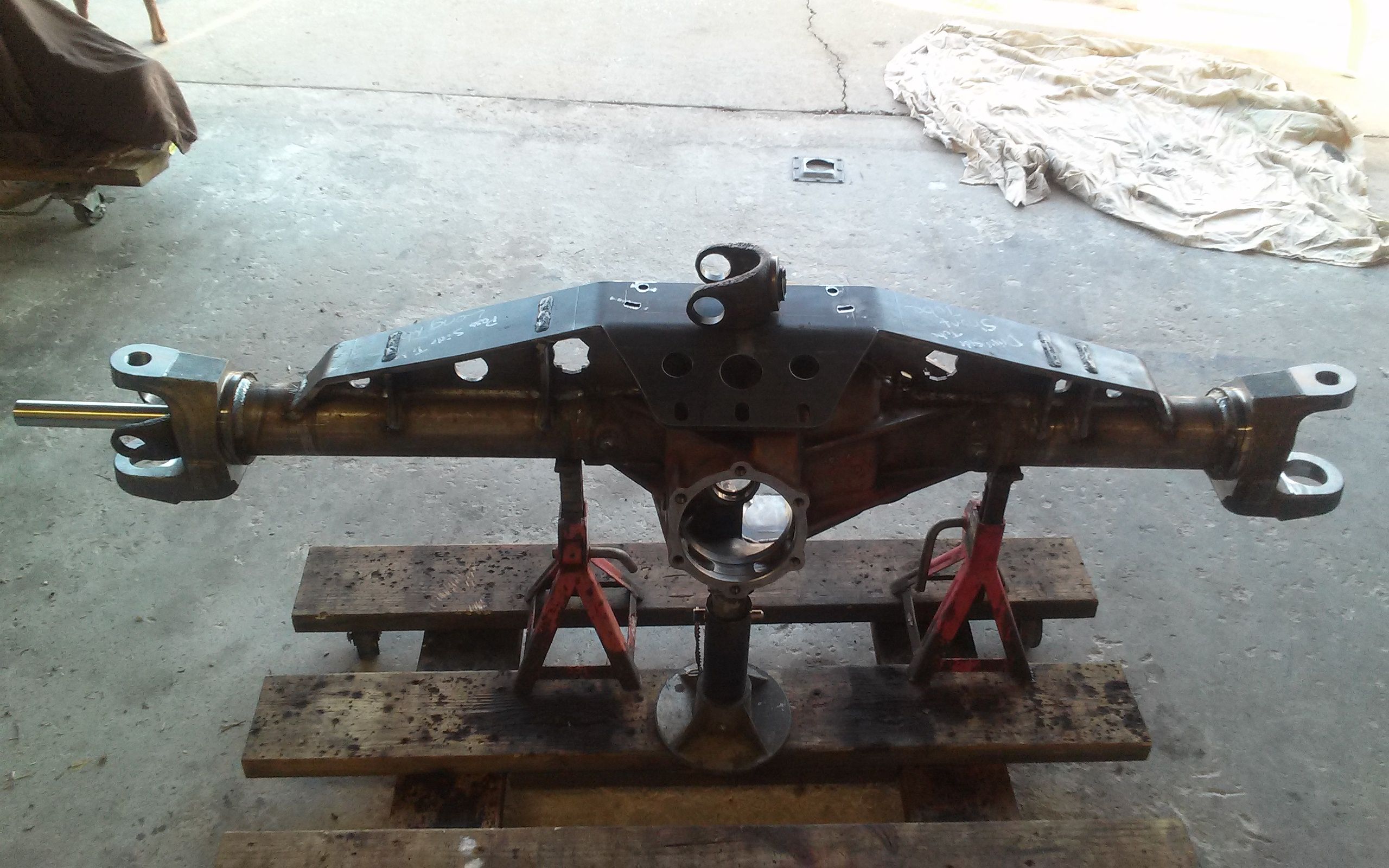

Here's my new axle I jus finished welding up. I used 3.500x.500 DOM and machined the inner tube to use the factory dana seals,solid industries C's, knuckles,ballistic fab shave kit,and truss super joints 35 spline outers 30 spline inners,5.13 locker.



[EddieHall]

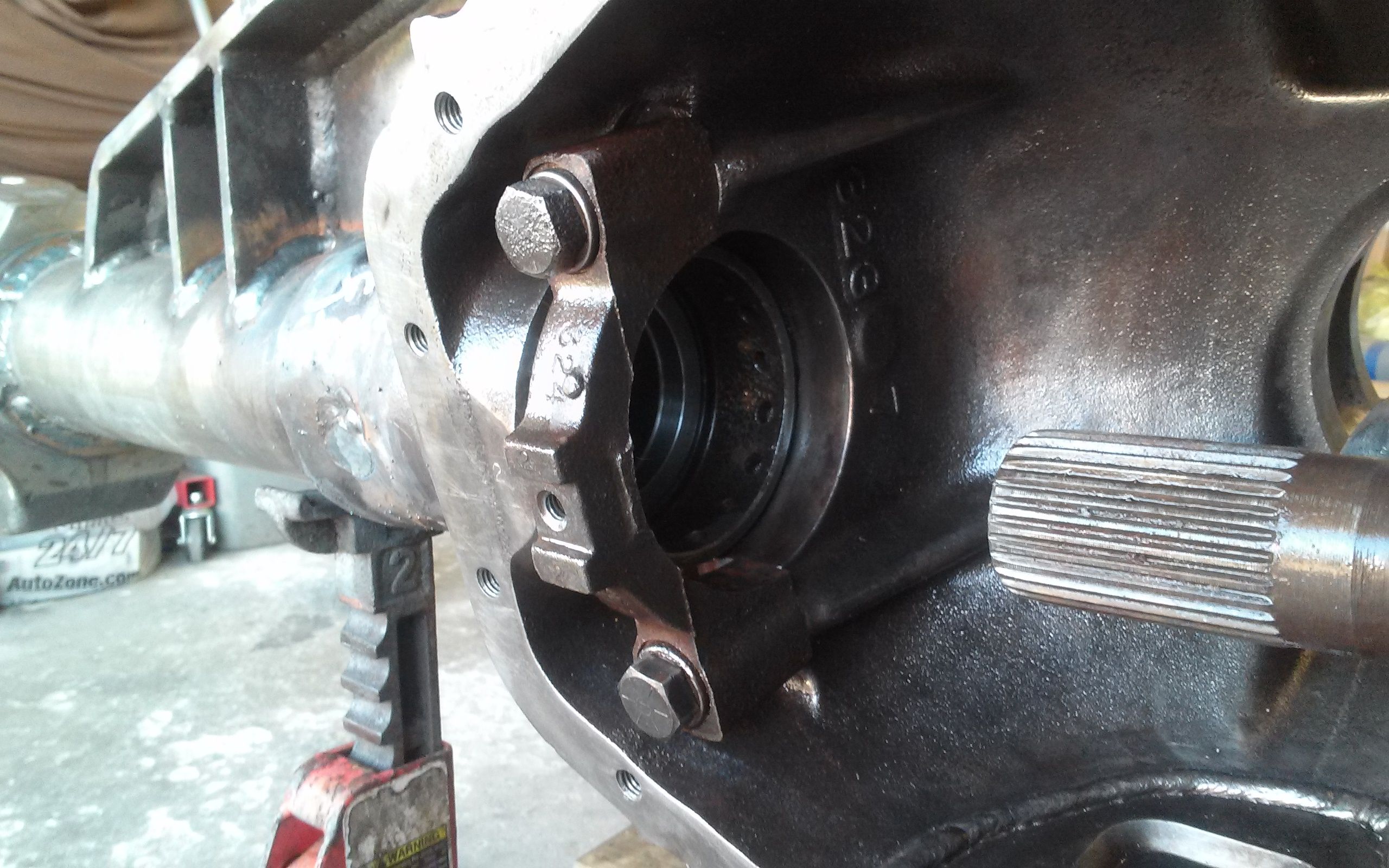

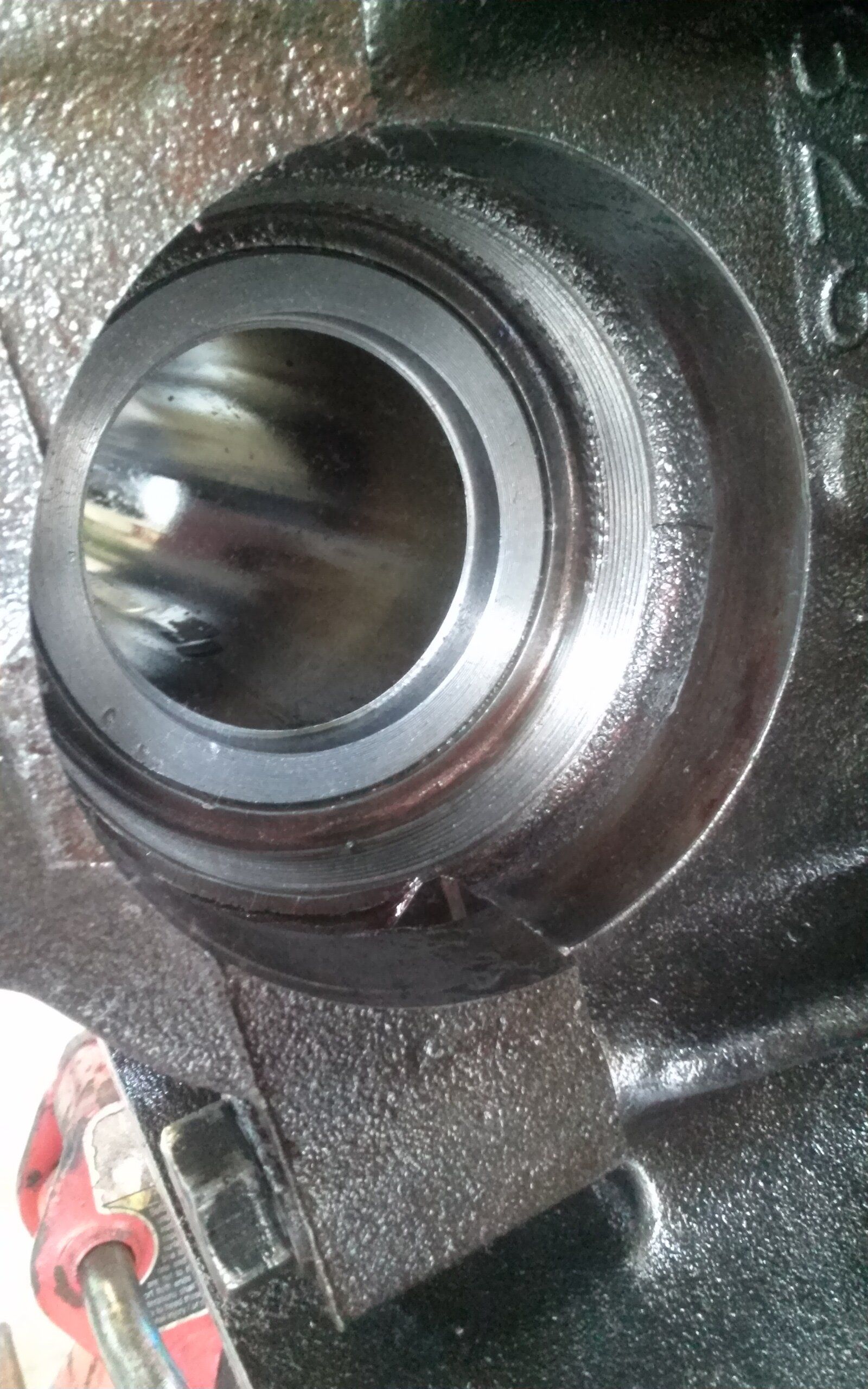

More pics inner seal



[EddieHall]

C pic



[mcutler]

Re:

Nice work

Matt



[EddieHall]

Thanks



[TBItoy]

I'm confused as to what I'm seeing on the alignment bar/shaft?



[Beerj]

Looks like he might be using it to determine axle shaft length. Pretty badass either way.



[smbroady82]

that just what I need for the ole yota! Gears match up and all!

good job on the axle



[EddieHall]

Yes, I machined the stock shafts down so I'm able to determine the length needed ,also ive turned dana 60 shafts. I used an old 30 spline front stub shaft,I just machined the splined shaft off so the yoke/ujoint end can slide to mark the shaft .it can also be used as an alignment bar to weld ends on I have cone bushings to center etc.



[EddieHall]

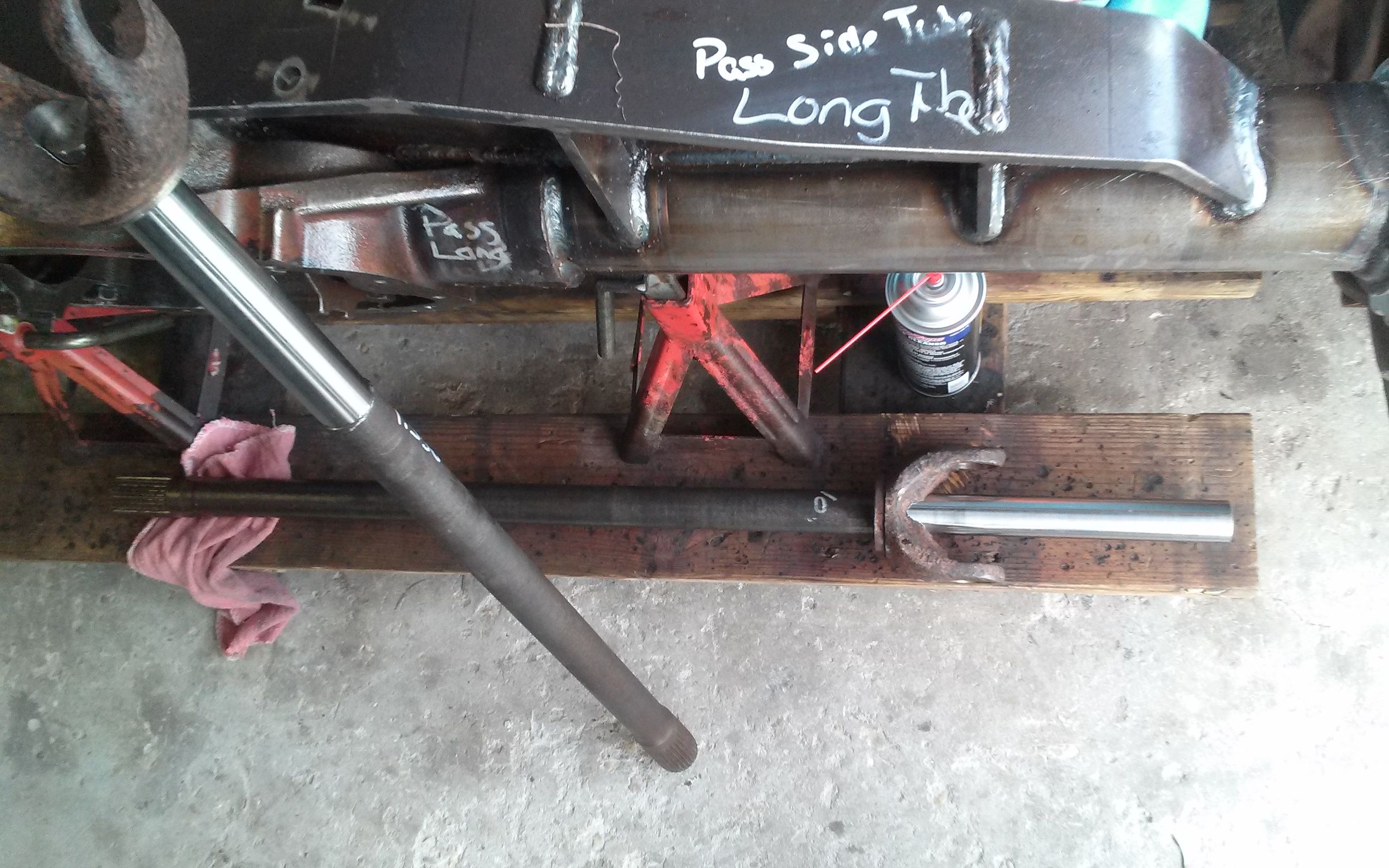

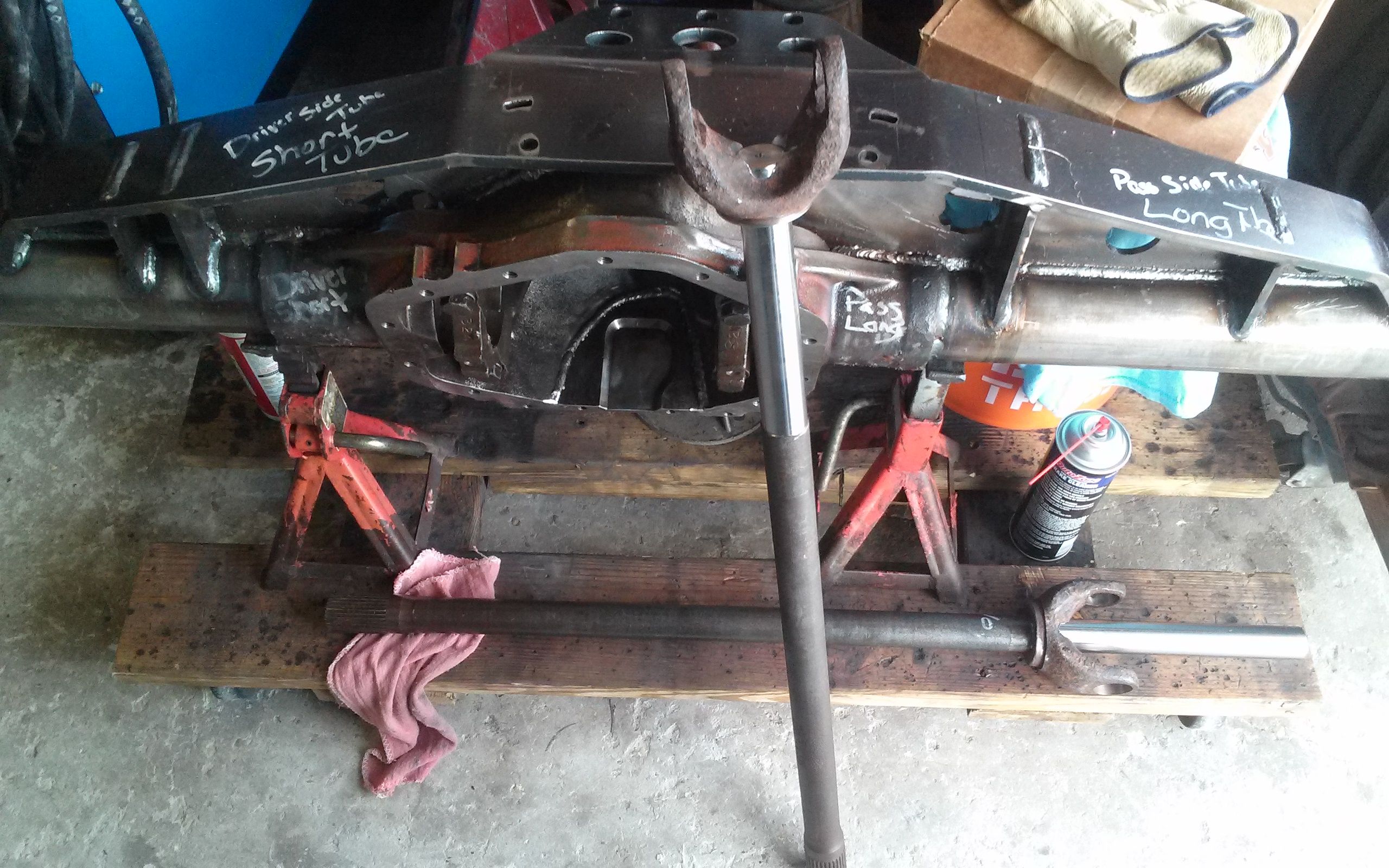

Pics of the mock up shafts



[EddieHall]

On the lathe



[EddieHall]

Pressing in the tubes



[Superzuki1986]

Great job, those are no easy task. Ya gotta love those plug welds.

Here is a customers axle housing I did a while back with a TMR shave kit.

Curtis



[Neal3000]

Nice work....100% Grade-A Beef!



[EddieHall]

That's nice did u machine the inner tube for seal



[EddieHall]

And yes the spot weld were a pain I 1st tried to cut through them and burnt up 2 tips finally I set it up on our Bridgeport,The way gm welded them in was a joke not a straight spot weld looks like there welded at a 45° and not to mention the housing isn't round then they spot weld them and the tubes distorts so when u press them out they galled up the housing so I machined the housing..I've built 2 now and I'm fixing to build a front next..thanks for all the response



[Superzuki1986]

Re: Re: Gm 14 bolt rear steer

That's nice did u machine the inner tube for seal

Yes, this is the only pic I have
It uses a stock Dana 60 seal.

Curtis



[Superzuki1986]

Re: Re: Gm 14 bolt rear steer

And yes the spot weld were a pain I 1st tried to cut through them and burnt up 2 tips finally I set it up on our Bridgeport,The way gm welded them in was a joke not a straight spot weld looks like there welded at a 45° and not to mention the housing isn't round then they spot weld them and the tubes distorts so when u press them out they galled up the housing so I machined the housing..I've built 2 now and I'm fixing to build a front next..thanks for all the response

Carbide tipped hole saw is the trick.

Curtis



[EddieHall]

Yea that's sweet



[EddieHall]

Thanks Wayne at Geartech HD for building my shafts
