winch wiring

Jay1 · Jan 31, 2007

I up graded my winch siloinods to the up right ones and don't know where the wires huck on the siloinods. Any body klnow where they mount or have a picture they can show me of their wires. Its an warn winch.

skrause · Jan 31, 2007

Jay1 said:
I up graded my winch siloinods to the up right ones and don't know where the wires huck on the siloinods. Any body klnow where they mount or have a picture they can show me of their wires. Its an warn winch.

Email Warn with your winch's serial #, they differ over time. You'll have to compare to the old setup and use some logic.

Jay1 · Jan 31, 2007

well the old silionods were the lay down style but they only have the up right style now and don't know where the wires huck on?

skrause · Jan 31, 2007

Jay1 said:
well the old silionods were the lay down style but they only have the up right style now and don't know where the wires huck on?

A solenoid has 4 terminals, two small for the coil and two big for the switch. Neither have to be connected in any special direction. Not that hard to figure out if you have the old schematic to get you started.

Jay1 · Feb 1, 2007

Ya but if I can get a picutre of a newer winch silionods then I could huck it up. I have tryed different was but no luck.

MonkeyMagic · Feb 1, 2007

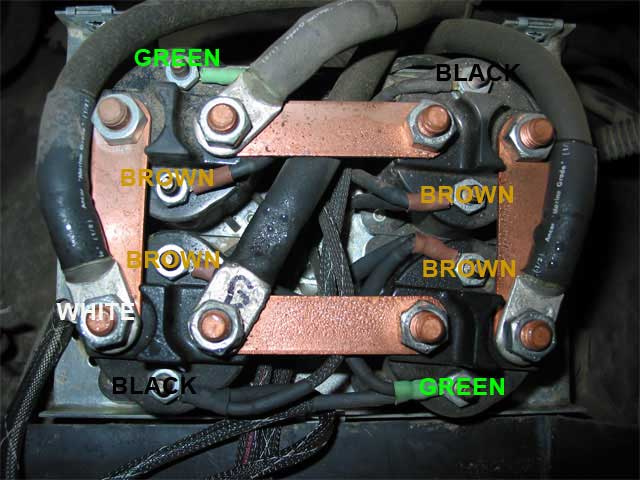

Maybe this will help... This is a diagram of a Warn HS9500i

View attachment 7486

skrause · Feb 1, 2007

TeamJeep said:
Maybe this will help... This is a diagram of a Warn HS9500i

View attachment 7486

Problem is, I think there's a buss bar missing in that pic. You don't need a current pic, what you need to do is duplicate the old circuit using the new components.
