2006 duramax 2500hd SAS

[EddieHall]

Hey guys jus did a solid axle swap on a 2500hd using the 2006 superduty front axle 4 link and king 2.5 coilovers if anybodys thinking of doing
this.i hav a few tips not a easy swap but there sweet once done,,im trying to upload pics. Gotta figure out how to shrink the files



[EddieHall]

More pics 4link arms



[kushKrawlin]

Holy **** ! Man all I can say is wow!! Impressive, and insane at the same time! Badass man!!! Love that ****!



[bad80cj]

More pics!



[jdsharp81]

Sweet! Ive got a 7.5 LMM id love to swap over to solid axle. About how much would one need to have in reserve to buy parts?



[EddieHall]

Now im doing the back he loves it to much everything is new r rebuilt 11k



[EddieHall]

More pics!

ill post more tomorrow



[EddieHall]

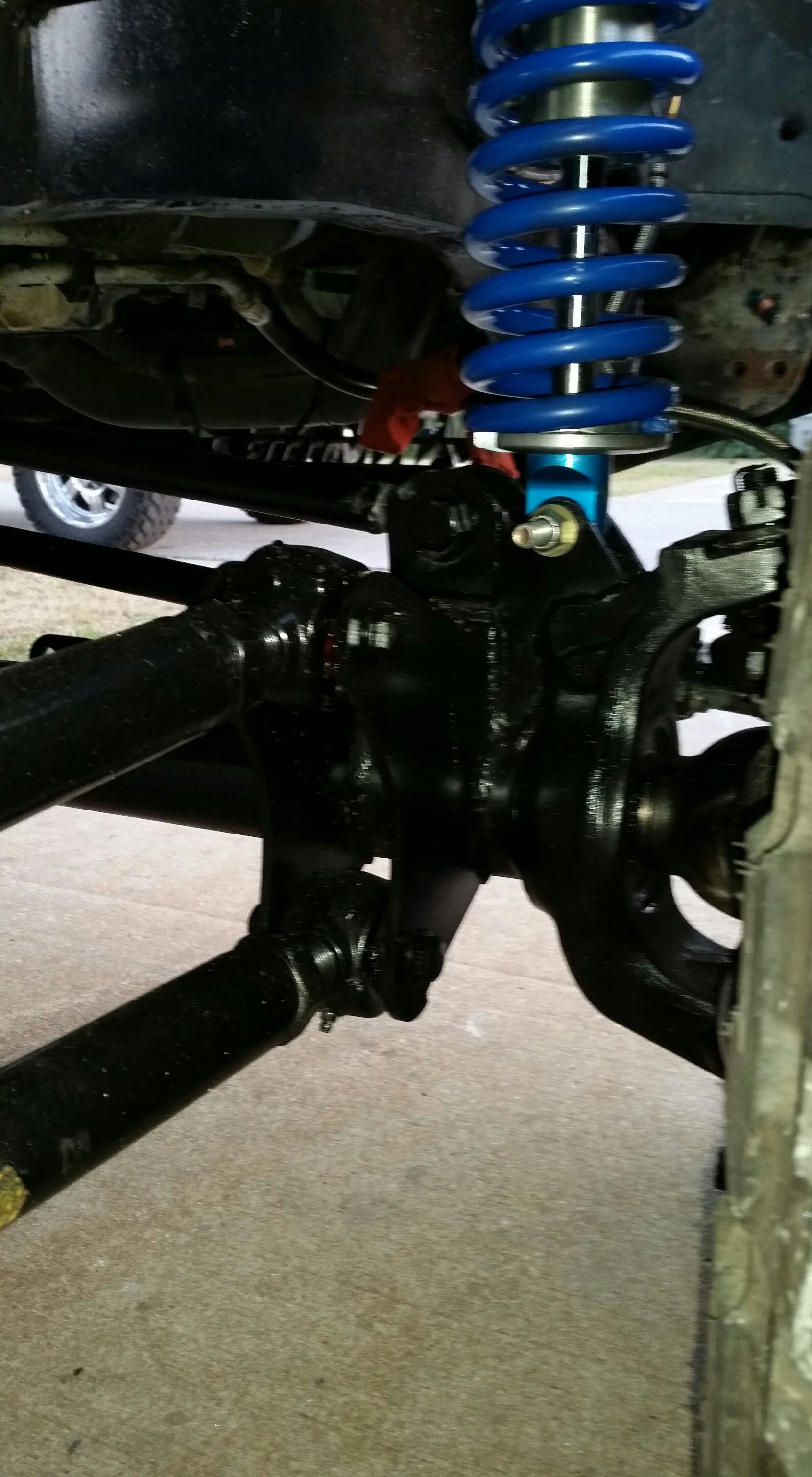

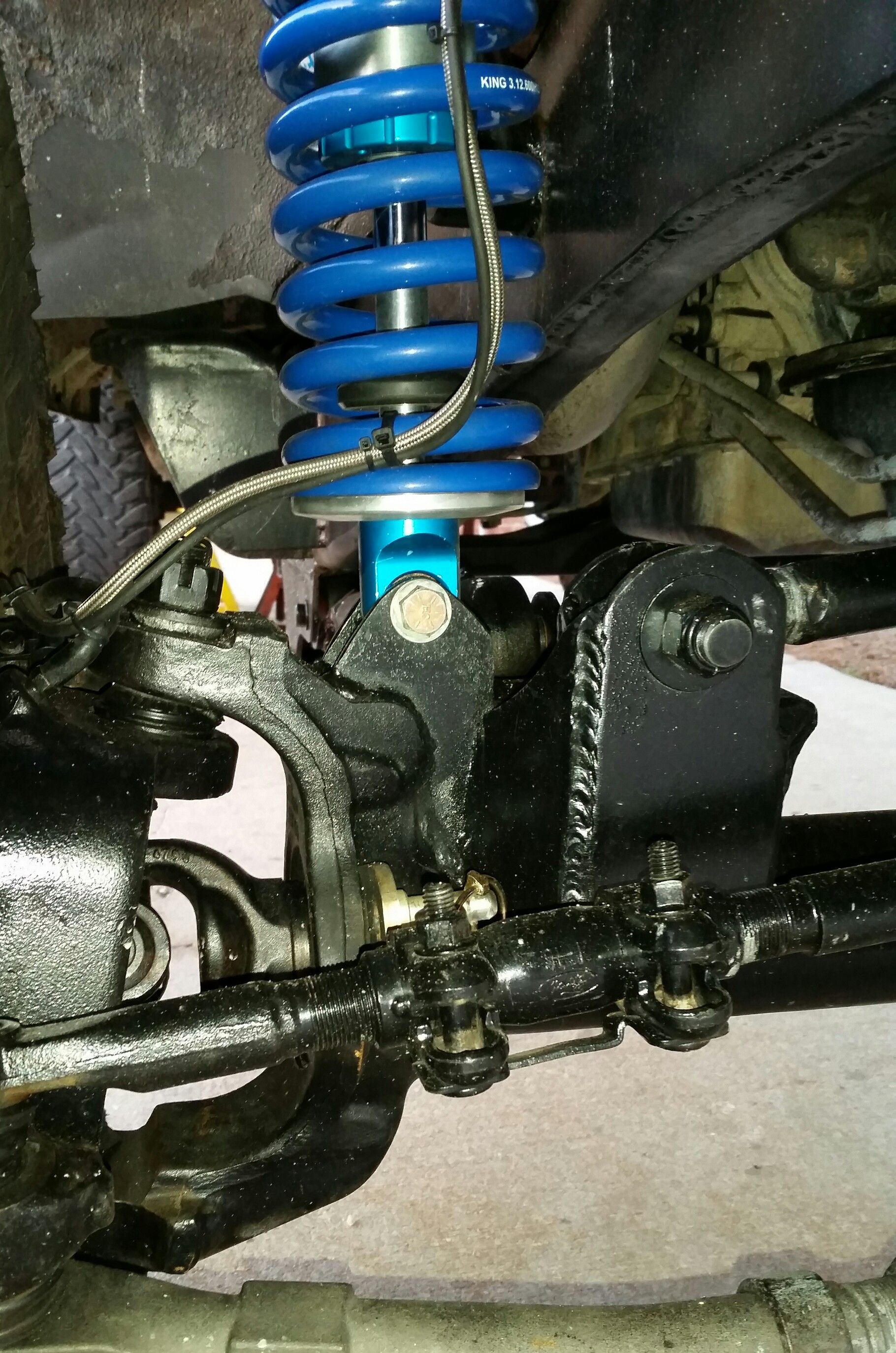

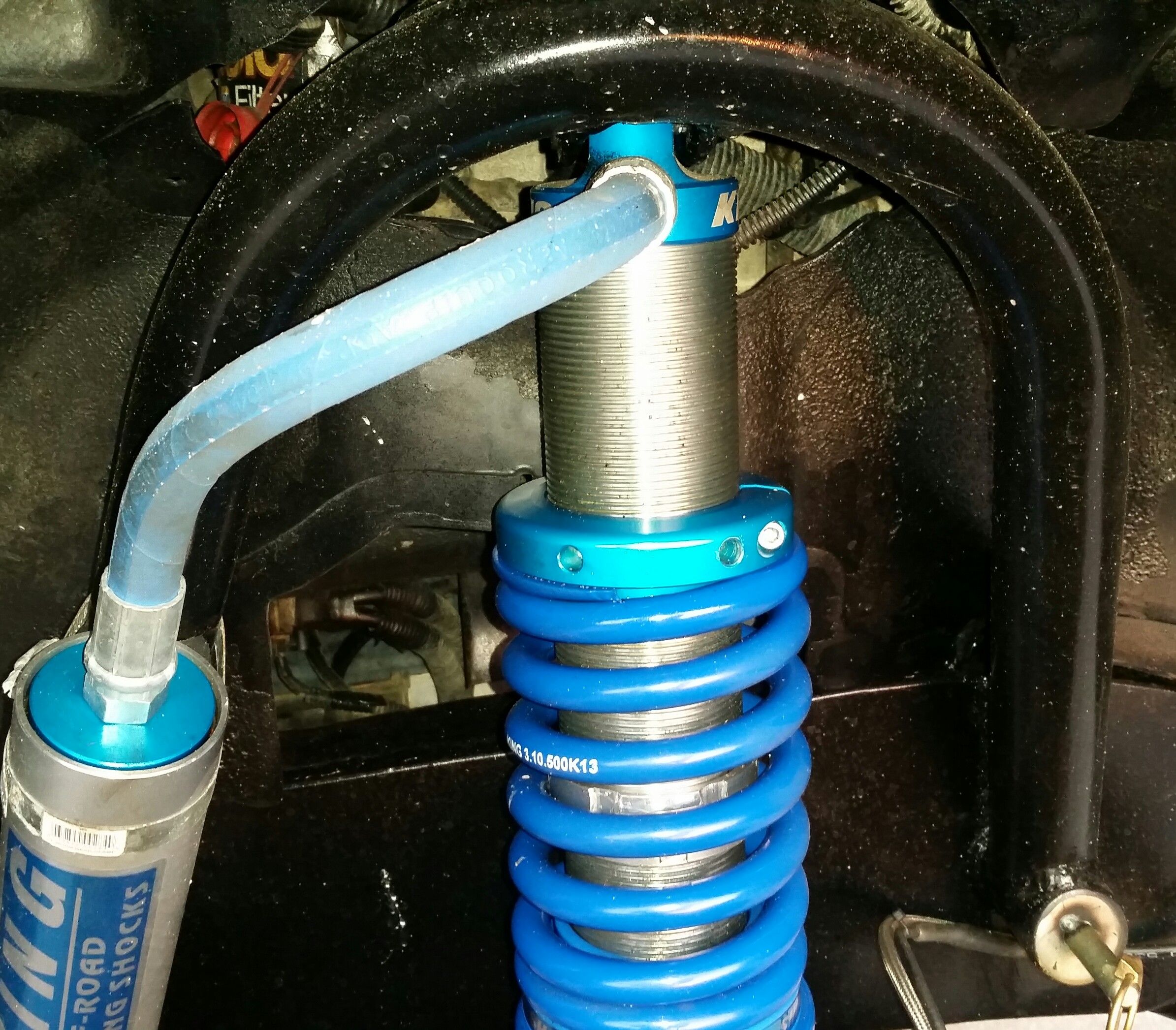

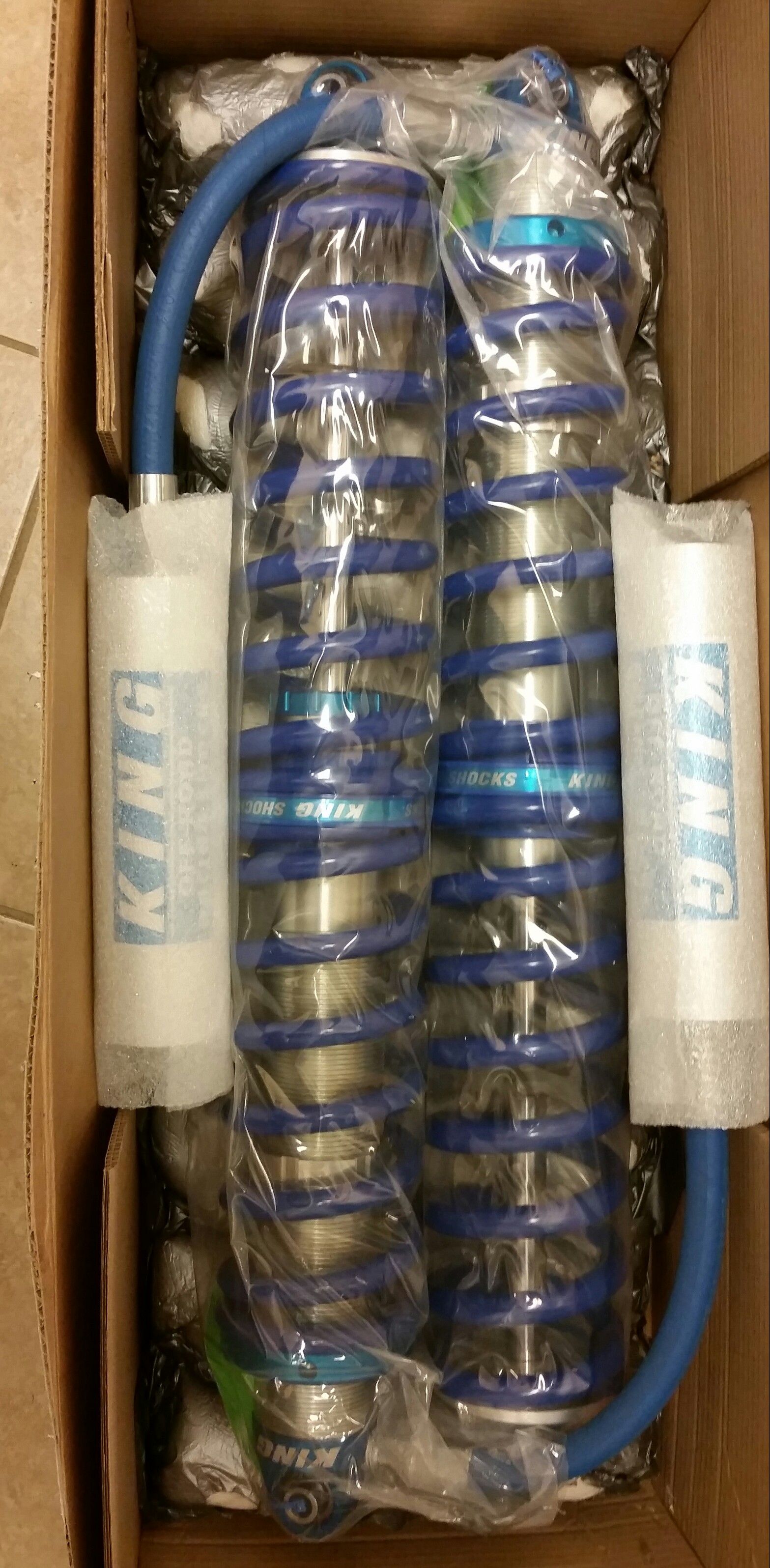

Shocks



[EddieHall]

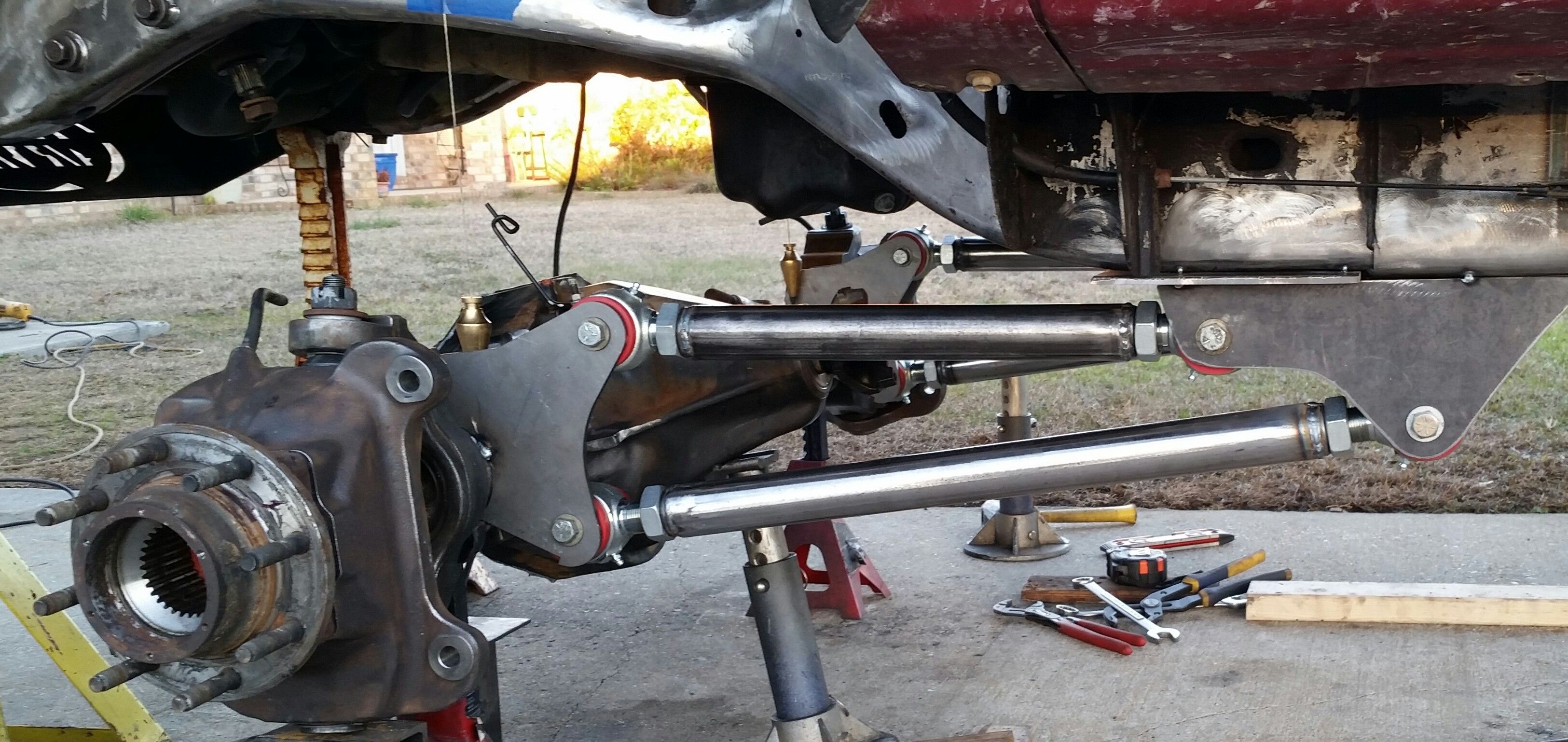

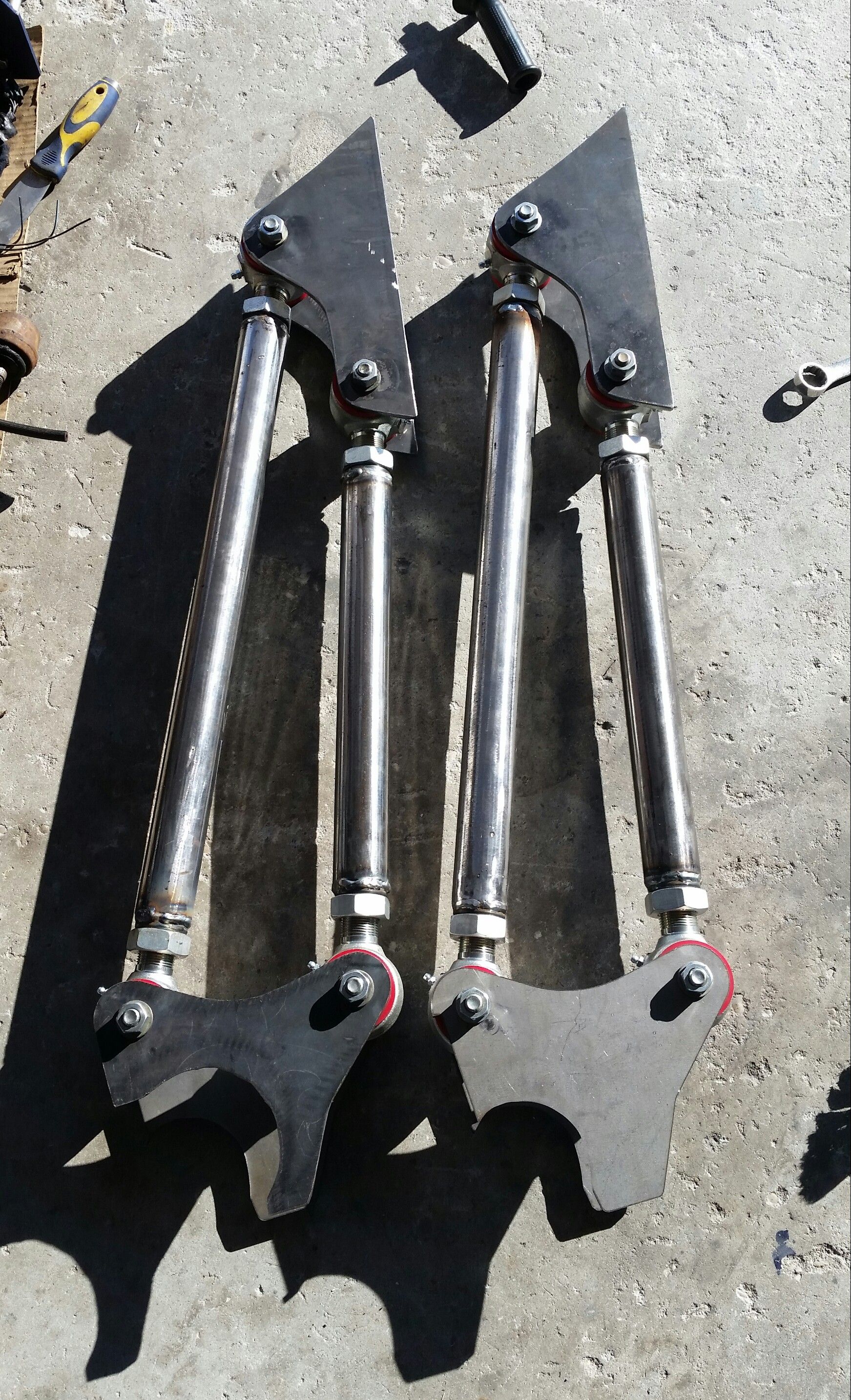

4link arms with the ballistic joints



[EddieHall]

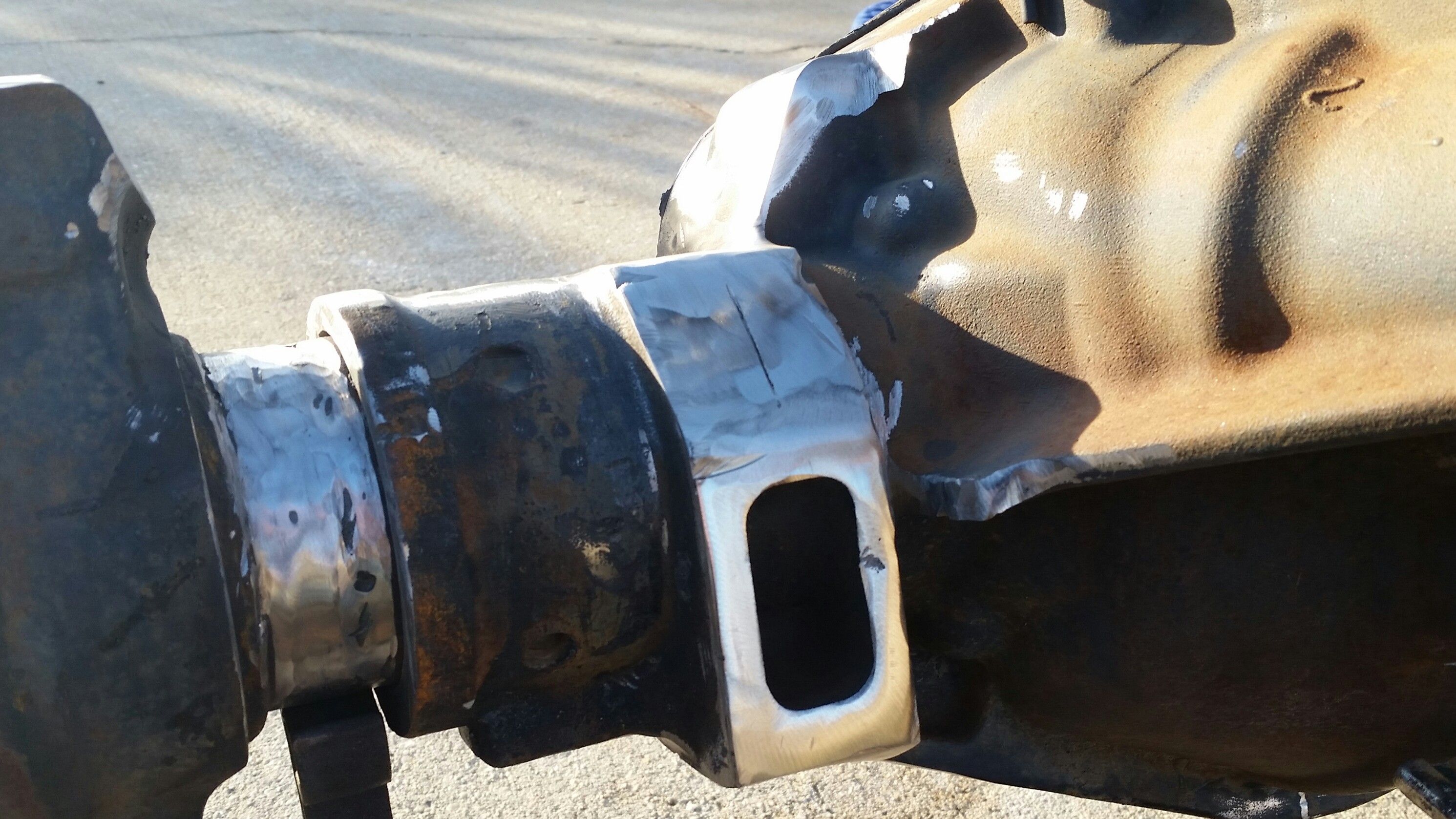

06 superduty dana 60 with the bushing cut off



[EddieHall]

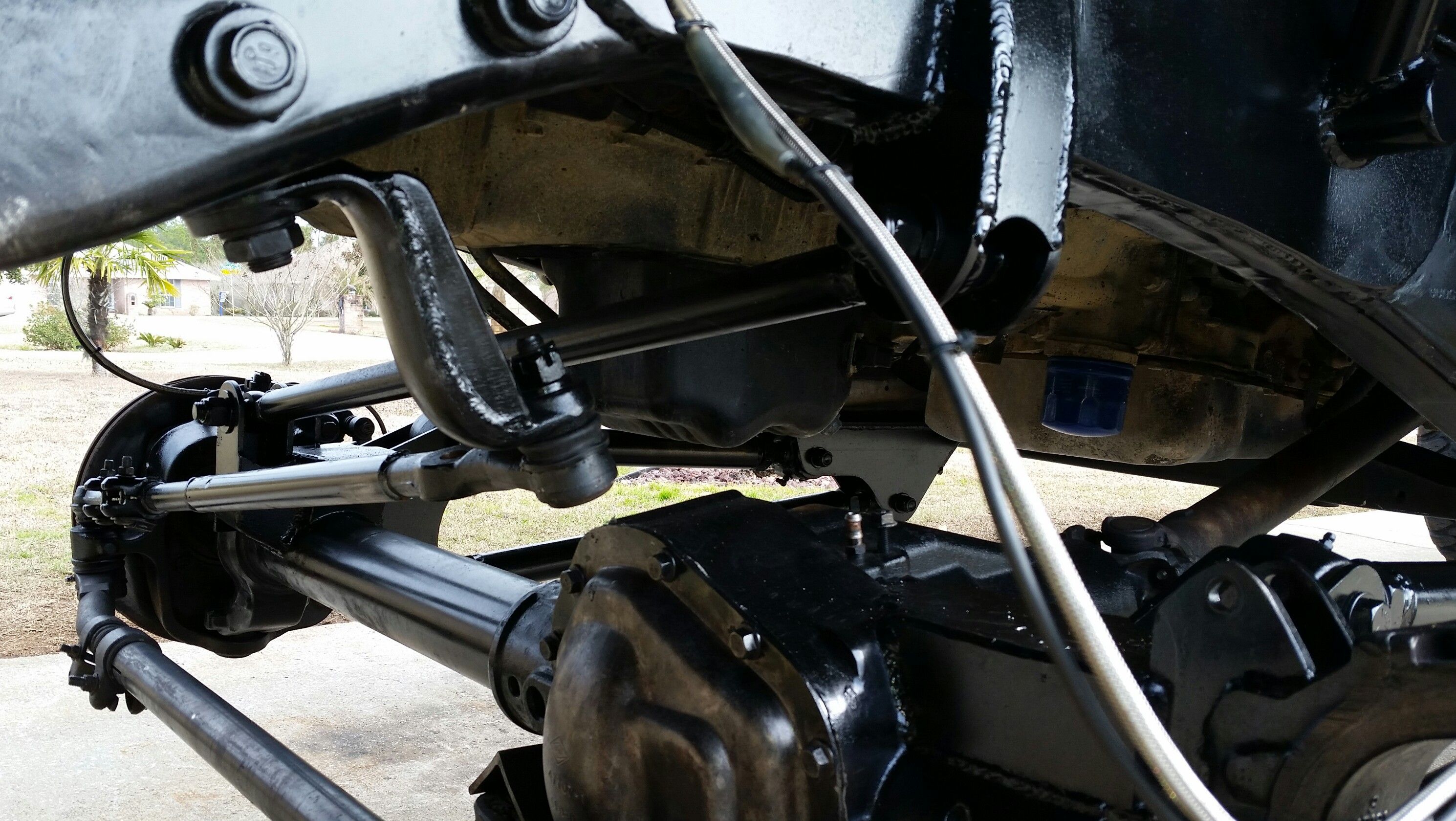

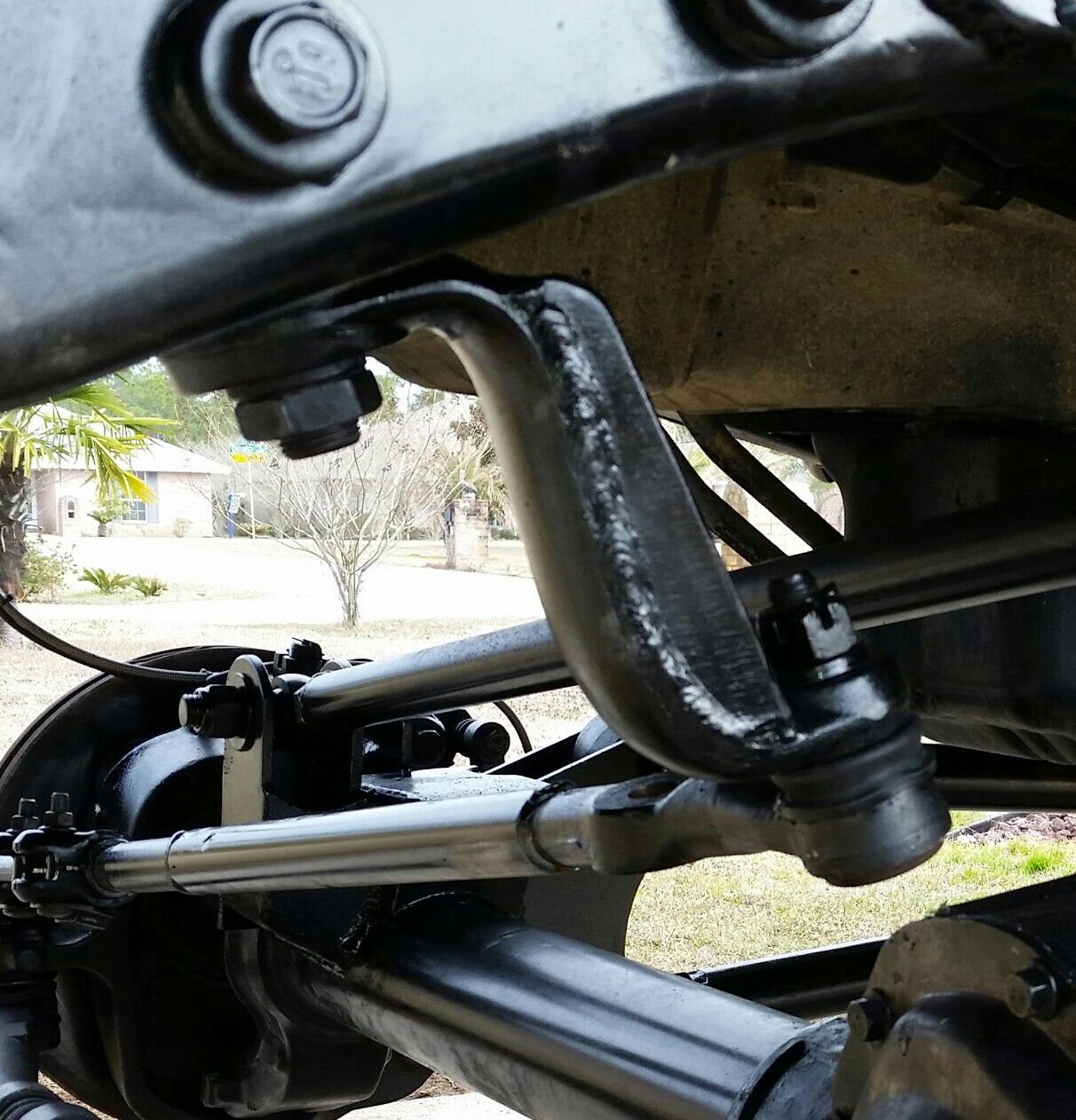

Steering arm jeep grand Cherokee xj



[EddieHall]

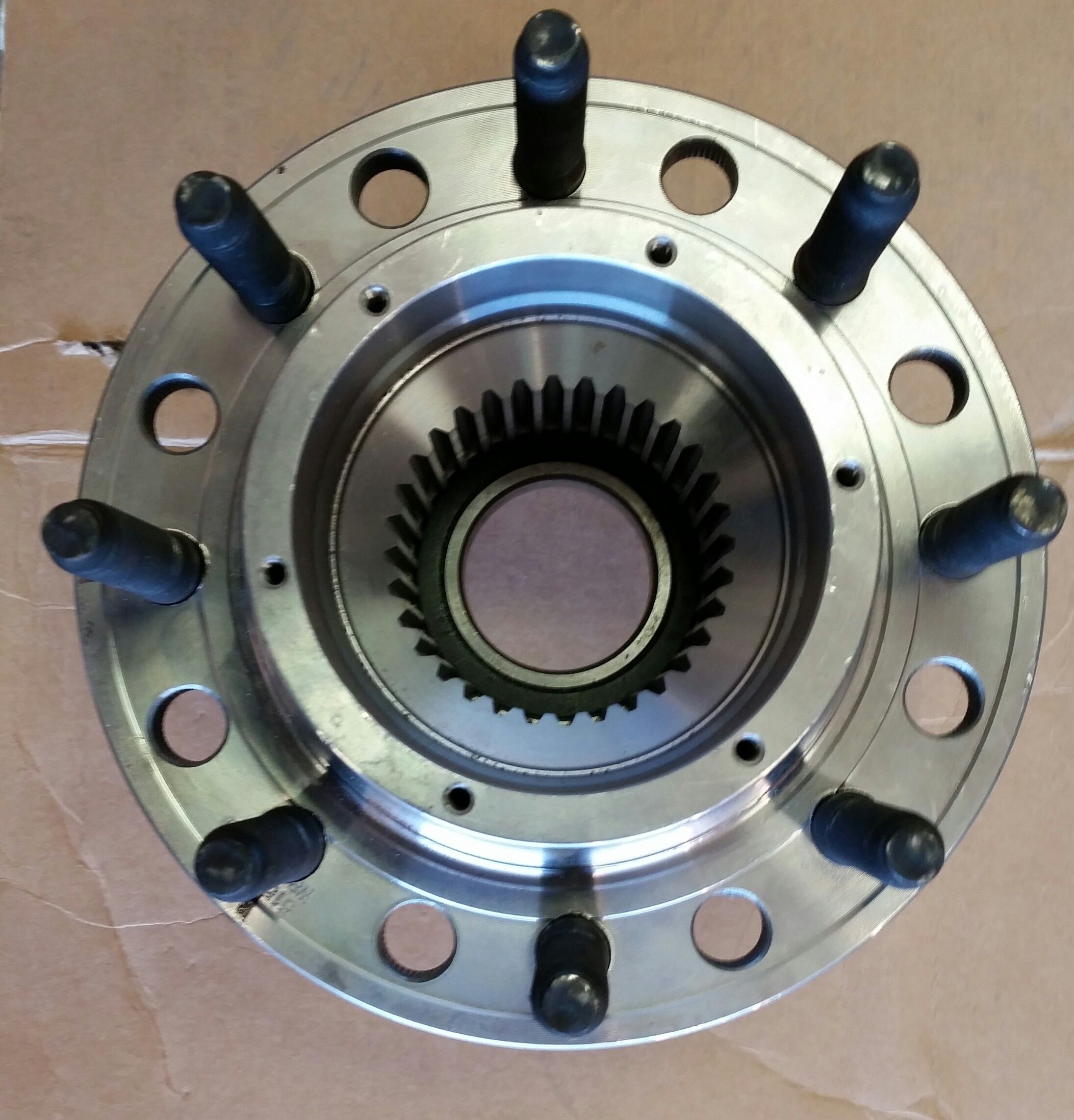

If n e body out there is planning on doing this swap i hav a jig to machine the 8x170 to 8x6.5 if u ship em to me ill drill them and machine the studs 100$ per hub and by the way its the same wheel base as the rear



[EddieHall]

More pics



[EddieHall]

Pics.



[EddieHall]

Pics.



[knaffie]

Re:

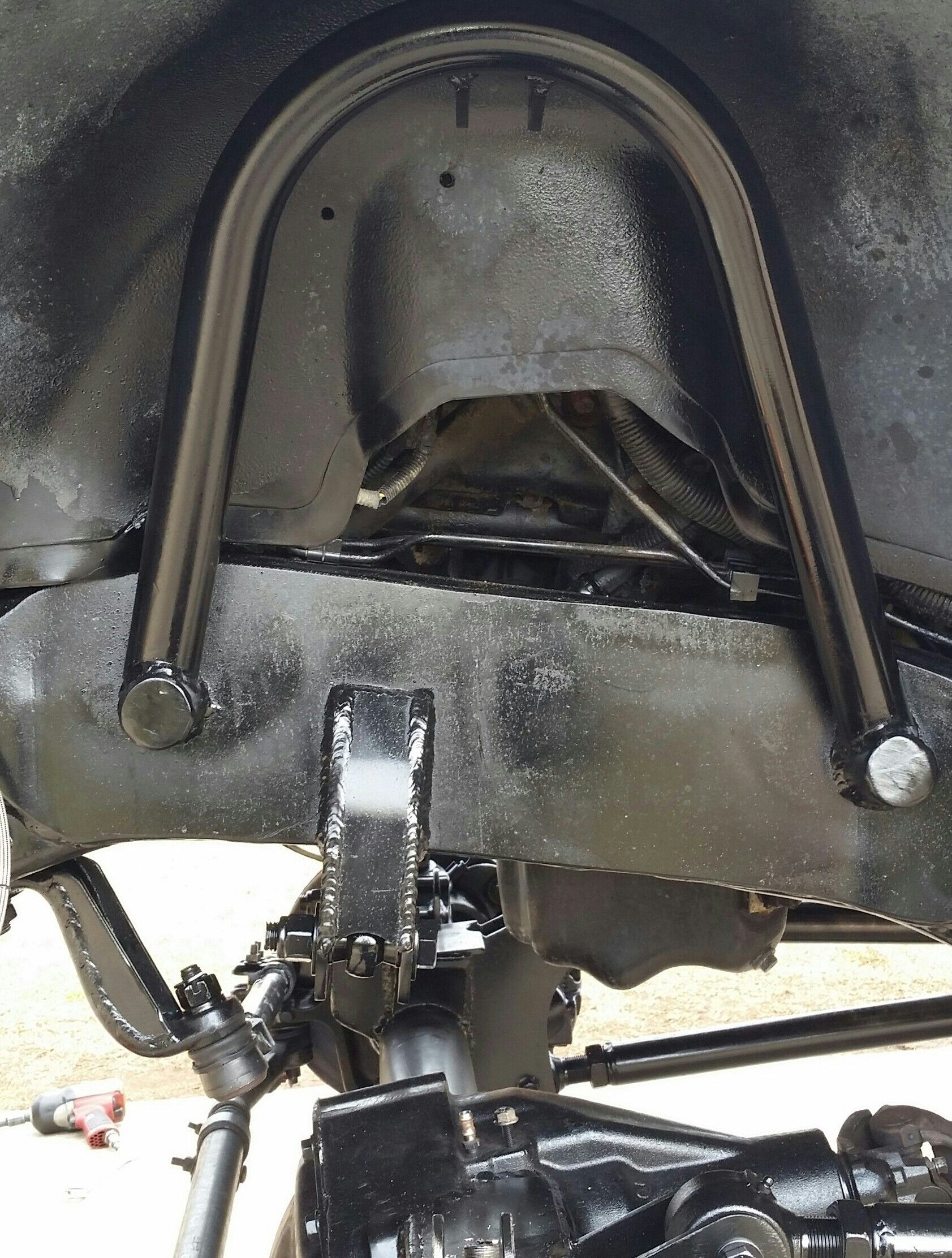

Is the frame plated where the shock hoop attaches to it? No 3rd leg or over engine brace for the shock towers?

Sent from my Nexus 10 using Tapatalk



[EddieHall]

1/4 inch and i cut hole through the frame and welded it on the inside and i used 1 3/4 dom 1/4 wall and i welded a brace the on the rear of the hoop thats hidden for looks no hoop needed across



[Bumpers]

Re:

Thats the way to do it right there. Sick



[EddieHall]

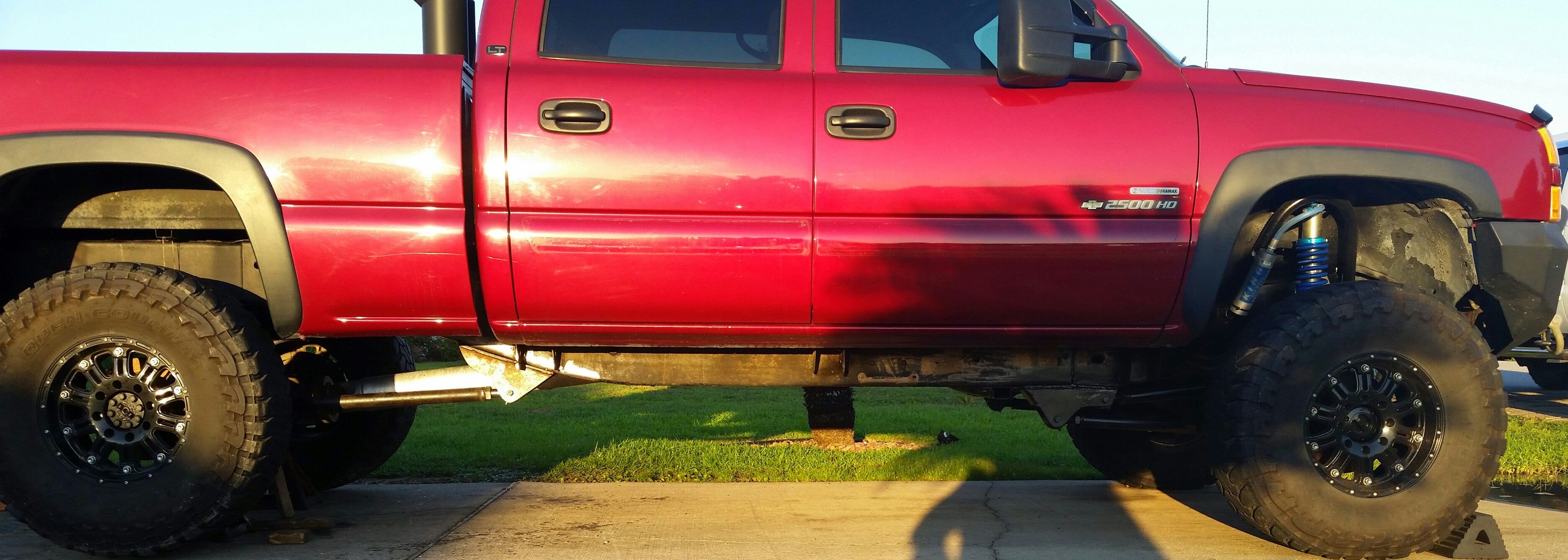

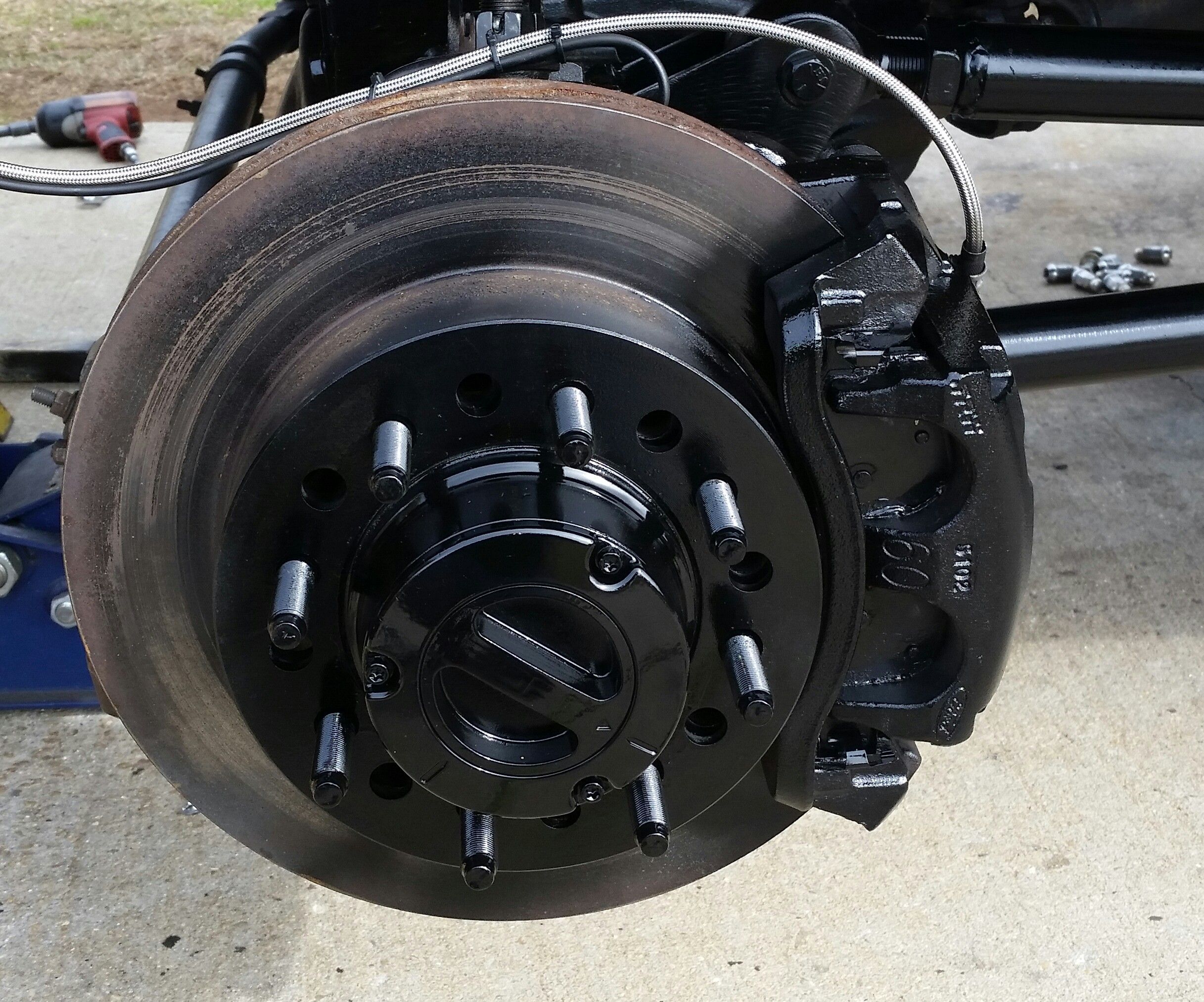

Thank u the ride is unexplainable until the rear end hit the speed bumps..notice the ford logo is gone n the hub i filled it n



[EddieHall]

Triangulated rear now
