Reid knuckles super 60's
-
Help Support Hardline Crawlers :
4 seater buggy.
- Thread starter 77GreenMachine
- Start date
Megawaylong
New Member
- Joined
- Feb 14, 2013
- Messages
- 4
- Reaction score
- 0
40 spline inners & 47 spline outers
Ok, now that makes more sense.
Why go to 47sp outers instead of the direct drive units that go in the unit bearings ?
ole heep
Well-Known Member
Pics and price?

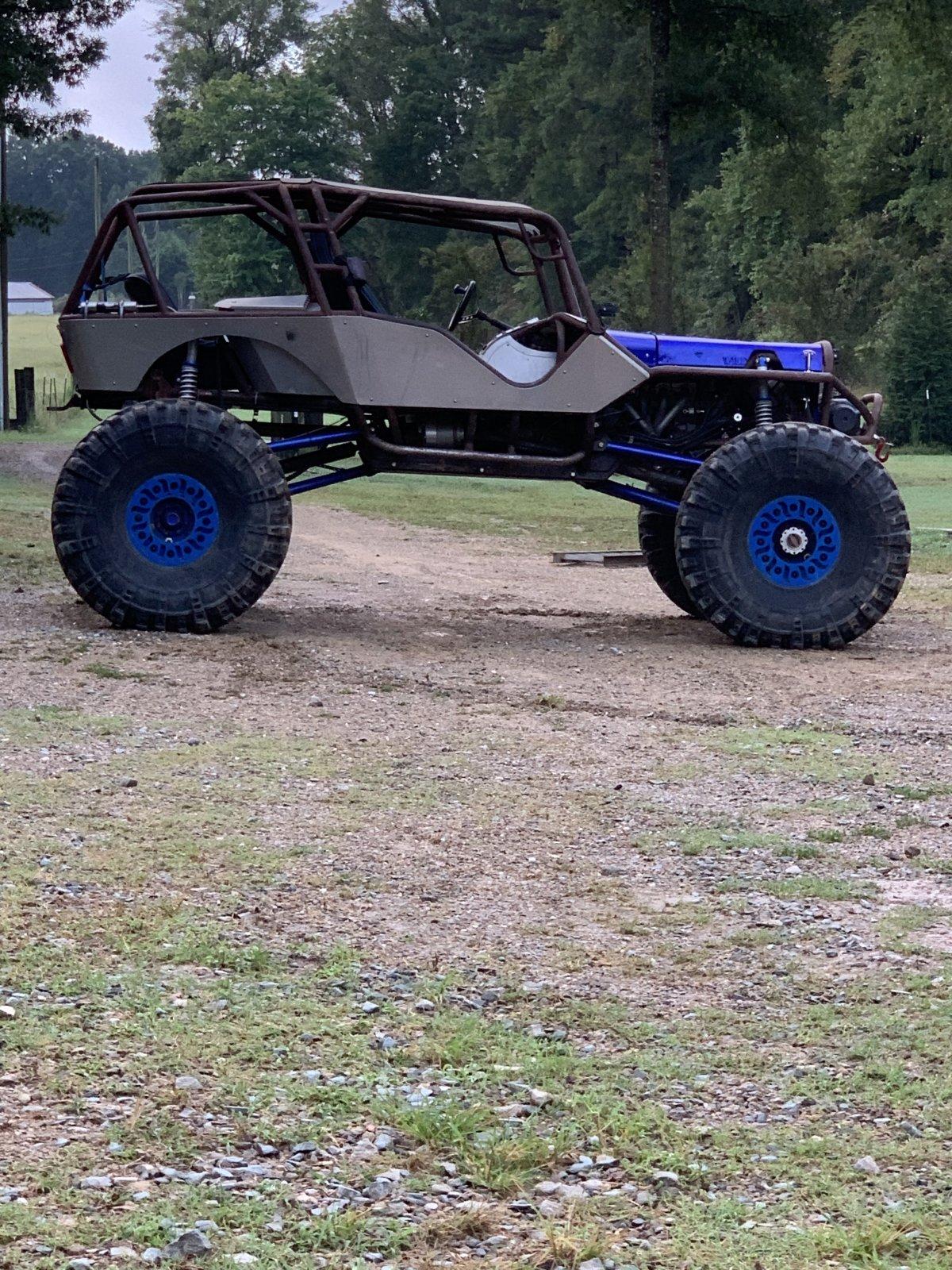

Rock Buggy For Sale
This totally custom Buggy is titled as a '48 Willy's Jeep.(Title included)
This is a totally custom four seater with racing seats and front and rear harnesses. This buggy gets great fuel mileage and has extreme turning options with front and rear steer. Locking hubs and lockers make this a nearly unstoppable vehicle for any terrain imaginable. This rig has been kept clear of mud and sand while I expect it would do amazing in any terrain with its exceptional power, lightweight and extremely versatile suspension and steering options.
If you're looking for an Extreme Custom Buggy that will take you anywhere you may want to go and most likely further than you had imagined this may be the vehicle of choice for you.
Motor Aluminum
2004 LS1
Headers/3" exhaust all the way back
Z-06 intake turned backwards into cab for clean air suction
Custom tuned to run on 93 octane gasoline
K/N Air Filter
Deep/rear some oil pan
Large Front mounted aluminum radiator with custom Thermostat controlled 2-speed electric fan integrated into the computer.
3" Magnaflow exhaust
Transmission Aluminum
Custom built turbo 400 transmission with 4L80 internals.
High volume oil pan.
Aluminum oil cooler.
Transfer Case Billet aluminum
Stak 3 speed transfer case Low5.44/Midrange 3.0/High1:1. Billet Aluminum
Suspension
Fox 2 x 16 coil over triple shocks on all four corners w/ remote reservoirs
options for 2x4" air bumps on all four corners.
Single triangulated Four linked Front and rear.
2.63" ballistic joints
Limiting Straps
Axles Powder Coated Black
2.5 ton Rockwells Full Width custom built with mohawks on the bottom/Detroit lockers in the rear/welded in the front/steering front and rear/iWilwood Disc brakes on all four wheels and rear mounted pinion brakes.
Double ended steering rams mounted on both axles.
Full Hydraulic Howe pumps/Reservoir and Double Ended Rams w/ Heavy Duty Hoses
Chromoly axle shafts in rear axle.
Warn locking hubs/Front Axle
Wheels Powder Coated Blue
Custom hummer H1 wheels with double bead lock and custom HDPE internal locking ring.
Tires
Super swamper 47 inch LTB
Winch
Worn 16.5 TI 12 Volt
Battery
Yellow top deep cycle
Power shut off's/1 Keyed/1 Switched
Fuel-cell Aluminum RCI
15 gallon custom fuel-cell with Corvette fuel filter/High pressure fuel pump
Roll cage
1 3/4" DOM tubing
Links Powder Coated blue
Lowers 2" 1/2" wall
Uppers 2" 1/4" wall
Custum Aluminum Dash with blue lit auto meter gauges.
Many double activated switches mounted in console.
Quick release steering wheel with suicide Knob
Custom Rear Steer lockable control handle.
Electric actuated front and rear brake locks
Floor mounted manual brake locks for parking brakes.
PRP Racing Seats with four point harnesses.
Rear mounted 2" receiver hitch.
Willys hood and grill are Powder Coated Blue/Plain aluminum panels all the way around with Aluminum drop tailgate.
Lexan windshield and ceiling Optional
Extra wires for optional radio/CB/speakers
-Headlights/turn signals/rock lights/brake lights all custom
-Custom aluminum lockable console and tool boxes/Cooler.
Aluminum Floor.
-125" Wheelbase
-Price $37,500 OBO
This totally custom Buggy is titled as a '48 Willy's Jeep.(Title included)
This is a totally custom four seater with racing seats and front and rear harnesses. This buggy gets great fuel mileage and has extreme turning options with front and rear steer. Locking hubs and lockers make this a nearly unstoppable vehicle for any terrain imaginable. This rig has been kept clear of mud and sand while I expect it would do amazing in any terrain with its exceptional power, lightweight and extremely versatile suspension and steering options.
If you're looking for an Extreme Custom Buggy that will take you anywhere you may want to go and most likely further than you had imagined this may be the vehicle of choice for you.
Motor Aluminum
2004 LS1
Headers/3" exhaust all the way back
Z-06 intake turned backwards into cab for clean air suction
Custom tuned to run on 93 octane gasoline
K/N Air Filter
Deep/rear some oil pan
Large Front mounted aluminum radiator with custom Thermostat controlled 2-speed electric fan integrated into the computer.
3" Magnaflow exhaust
Transmission Aluminum
Custom built turbo 400 transmission with 4L80 internals.
High volume oil pan.
Aluminum oil cooler.
Transfer Case Billet aluminum
Stak 3 speed transfer case Low5.44/Midrange 3.0/High1:1. Billet Aluminum
Suspension
Fox 2 x 16 coil over triple shocks on all four corners w/ remote reservoirs
options for 2x4" air bumps on all four corners.
Single triangulated Four linked Front and rear.
2.63" ballistic joints
Limiting Straps
Axles Powder Coated Black
2.5 ton Rockwells Full Width custom built with mohawks on the bottom/Detroit lockers in the rear/welded in the front/steering front and rear/iWilwood Disc brakes on all four wheels and rear mounted pinion brakes.
Double ended steering rams mounted on both axles.
Full Hydraulic Howe pumps/Reservoir and Double Ended Rams w/ Heavy Duty Hoses
Chromoly axle shafts in rear axle.
Warn locking hubs/Front Axle
Wheels Powder Coated Blue
Custom hummer H1 wheels with double bead lock and custom HDPE internal locking ring.
Tires
Super swamper 47 inch LTB
Winch
Worn 16.5 TI 12 Volt
Battery
Yellow top deep cycle
Power shut off's/1 Keyed/1 Switched
Fuel-cell Aluminum RCI
15 gallon custom fuel-cell with Corvette fuel filter/High pressure fuel pump
Roll cage
1 3/4" DOM tubing
Links Powder Coated blue
Lowers 2" 1/2" wall
Uppers 2" 1/4" wall
Custum Aluminum Dash with blue lit auto meter gauges.
Many double activated switches mounted in console.
Quick release steering wheel with suicide Knob
Custom Rear Steer lockable control handle.
Electric actuated front and rear brake locks
Floor mounted manual brake locks for parking brakes.
PRP Racing Seats with four point harnesses.
Rear mounted 2" receiver hitch.
Willys hood and grill are Powder Coated Blue/Plain aluminum panels all the way around with Aluminum drop tailgate.
Lexan windshield and ceiling Optional
Extra wires for optional radio/CB/speakers
-Headlights/turn signals/rock lights/brake lights all custom
-Custom aluminum lockable console and tool boxes/Cooler.
Aluminum Floor.
-125" Wheelbase
-Price $37,500 OBO
77GreenMachine
Member
- Joined
- Oct 18, 2015
- Messages
- 23
- Reaction score
- 17
ridered3
Not Rigless
Awesome setup and hopefully you weigh that setup sometime.
77GreenMachine
Member
- Joined
- Oct 18, 2015
- Messages
- 23
- Reaction score
- 17

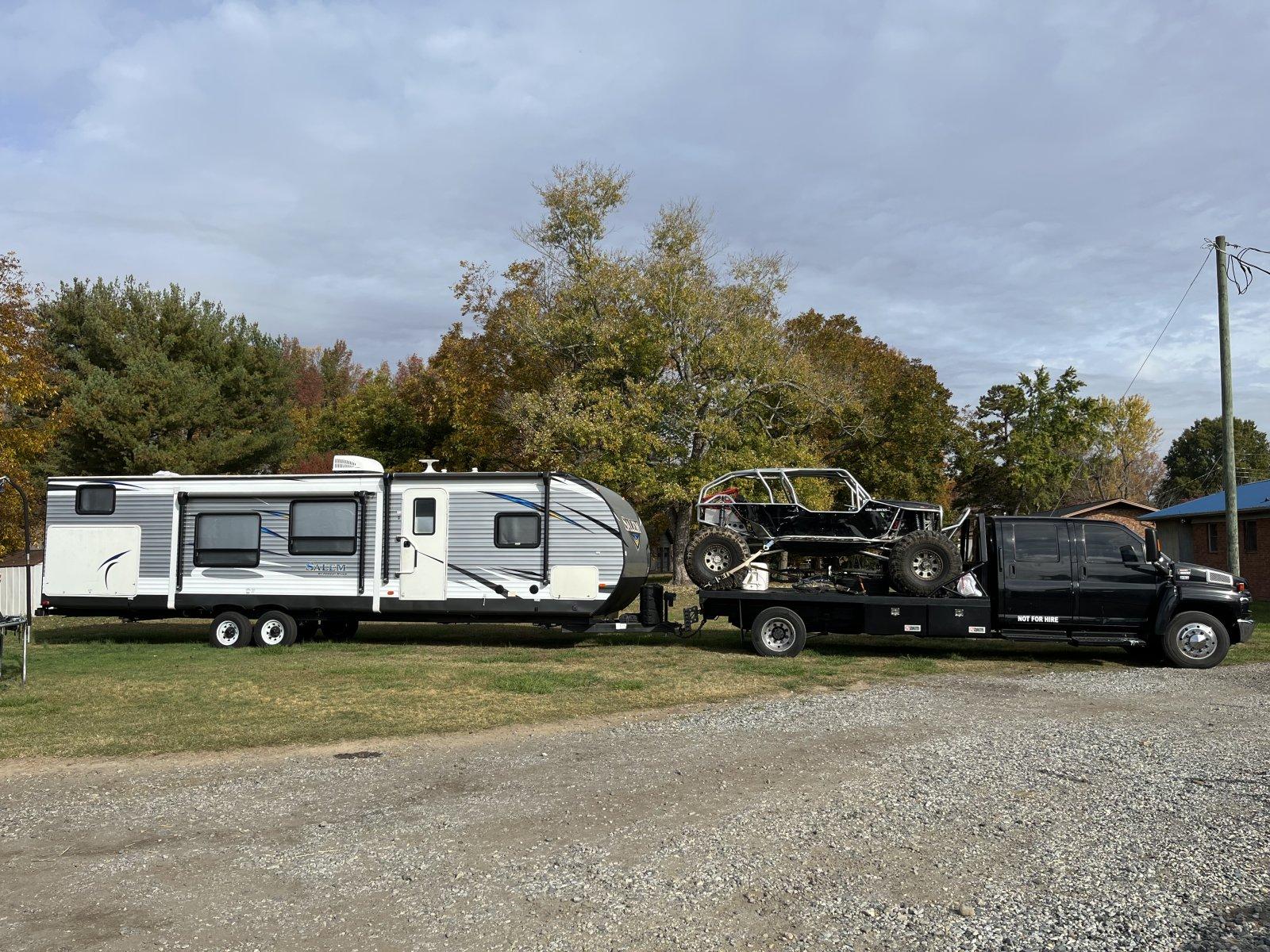

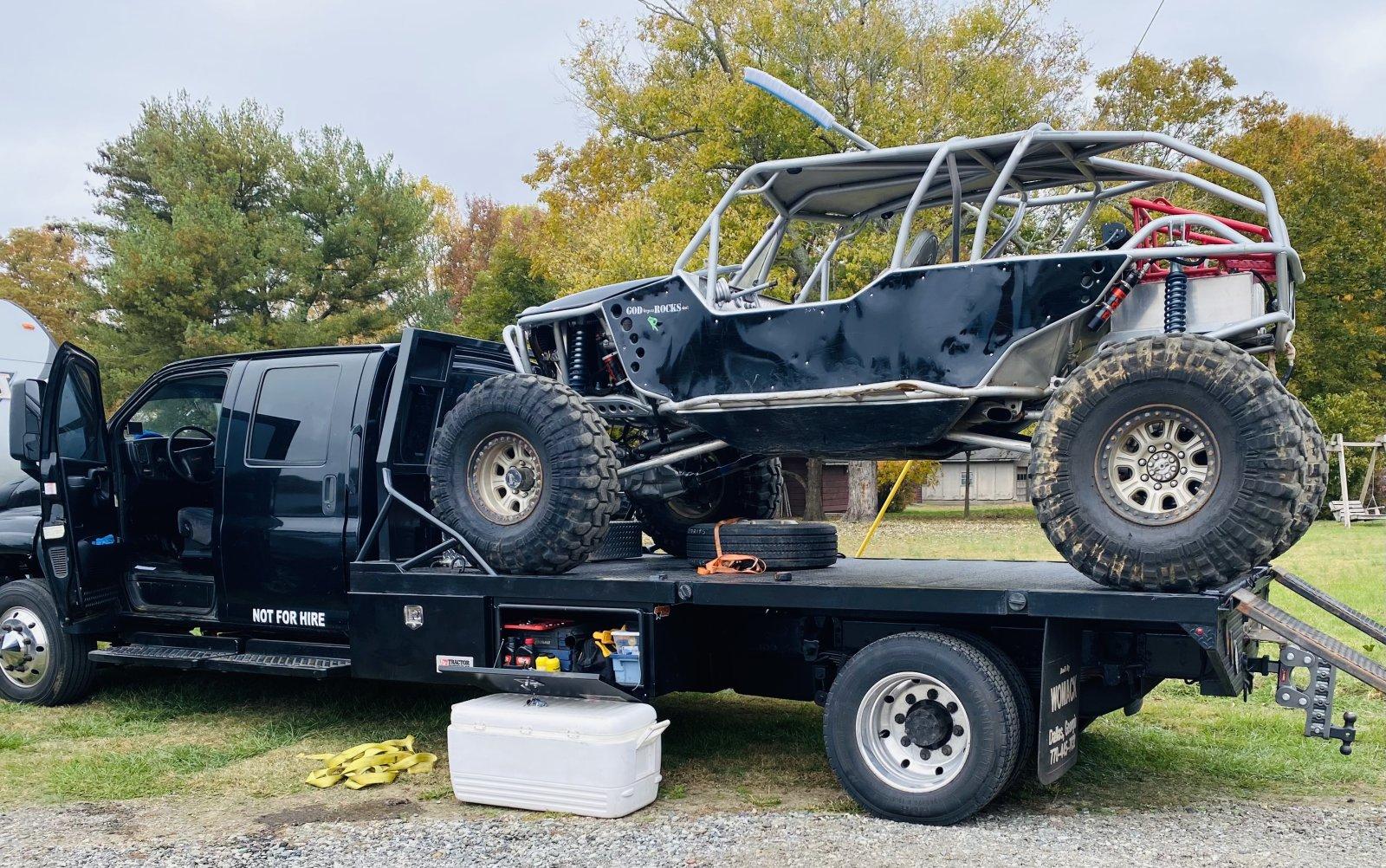

I'm a little skeert to know lol. But I need to. With my old camper and my old YJ I was 23,100
I imagine this rig is 5500 and I know this camper is 5-6k heavier than the old one
ridered3
Not Rigless
Understandable there for sure.I'm a little skeert to know lol. But I need to. With my old camper and my old YJ I was 23,100
I imagine this rig is 5500 and I know this camper is 5-6k heavier than the old one
77GreenMachine
Member
- Joined
- Oct 18, 2015
- Messages
- 23
- Reaction score
- 17
If you're curious about this journey and want to follow along, search for Talton Off Road and Travel on FB and IG, and we also just made our first YouTube video.
and subscribed.
