Finally....Da new rig..

So the wife found a way to make me relax--stick me on a cruise ship for a week,lol..

So home an hour and I was right back at it....

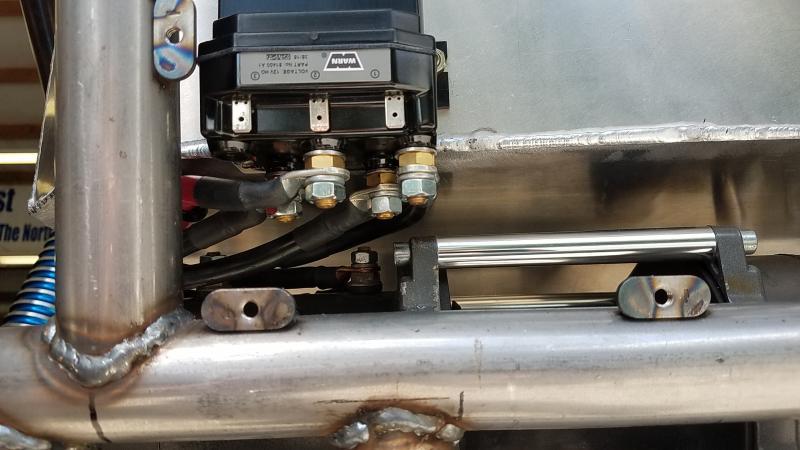

So started working on the rear of the car and got the rear winch controller wired to the winch..


Attachments

  • 20170716_105305.jpg
    50.7 KB · Views: 203

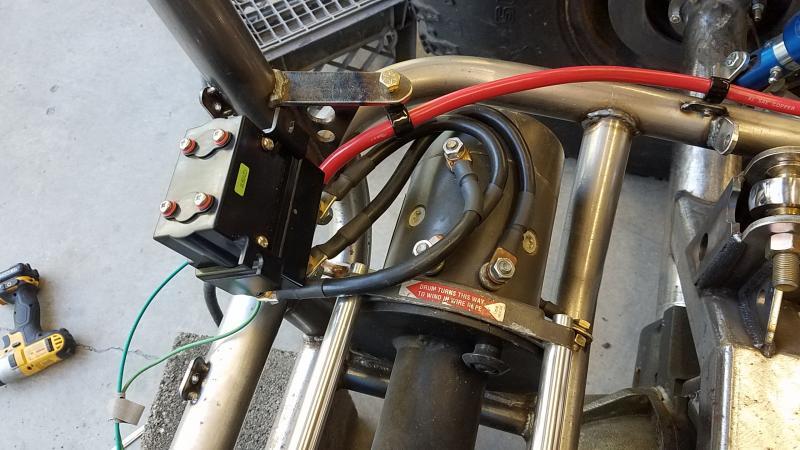

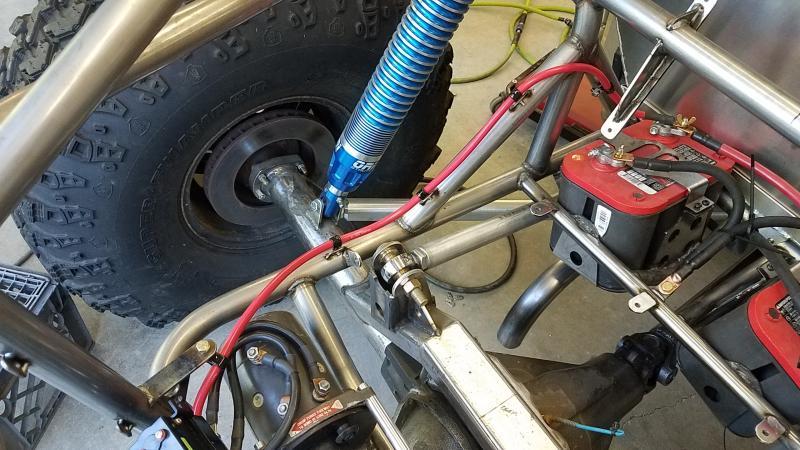

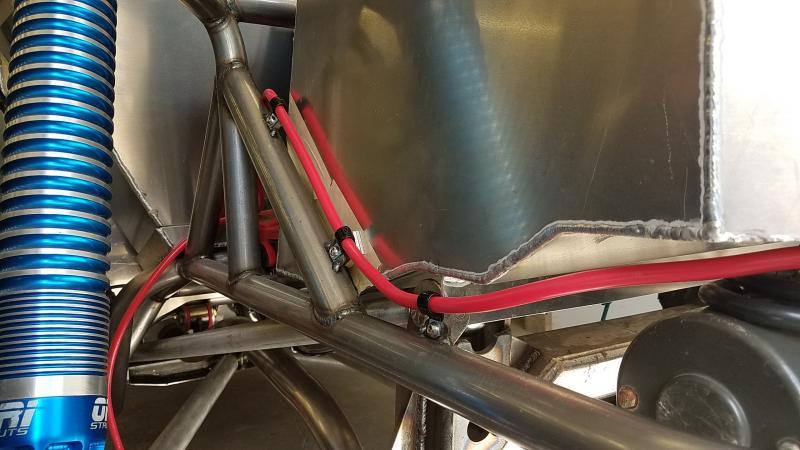

Next I ran the power cable to the batteries.


Attachments

  • 20170716_194225.jpg
    66.1 KB · Views: 201
  • 20170716_105308.jpg
    55.4 KB · Views: 204
  • 20170716_194119.jpg
    77.9 KB · Views: 200

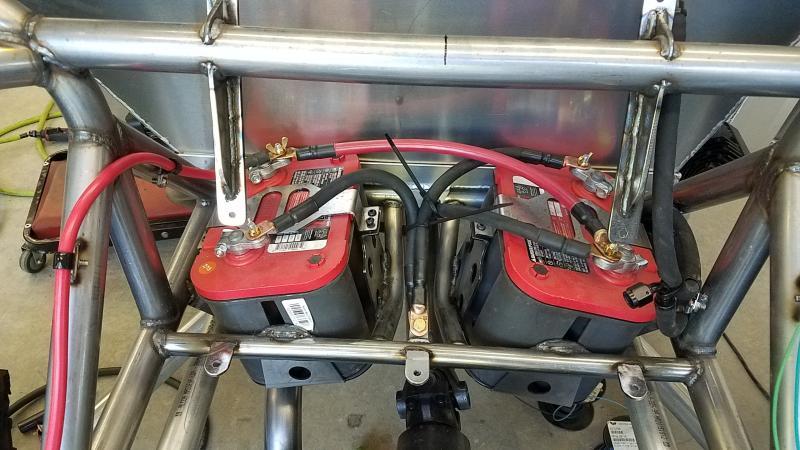

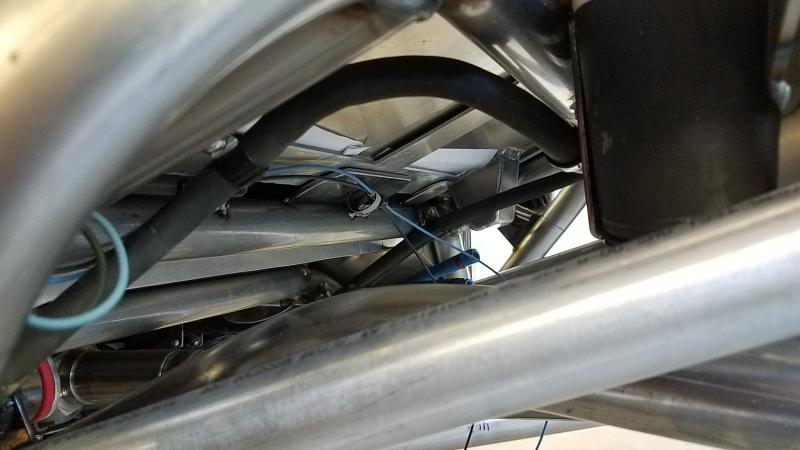

I got the batteries all wired up and the 2/0 main cable started running forward to the center of the chassis. I will finish that later once I get a bunch of interior stuff done up and started pulling panels...


Attachments

  • 20170716_194123.jpg
    68.3 KB · Views: 204
  • 20170716_194138.jpg
    41.1 KB · Views: 204

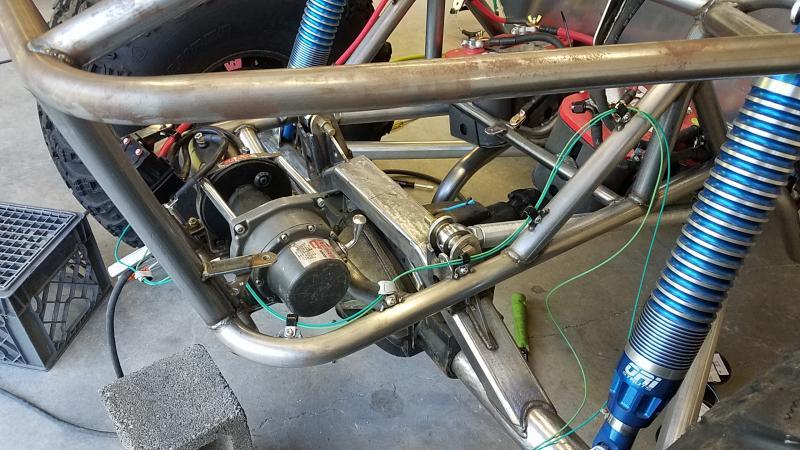

So I got all the tabs done for the rear to front harness. Once the harness meets the trans cooler lines it will just follow it to the fuel pump and I will figure it out from there when I hit that point.

So all the metal work is done on the rear except the tabs for the body panels.


Attachments

  • 20170716_194127.jpg
    81.9 KB · Views: 191

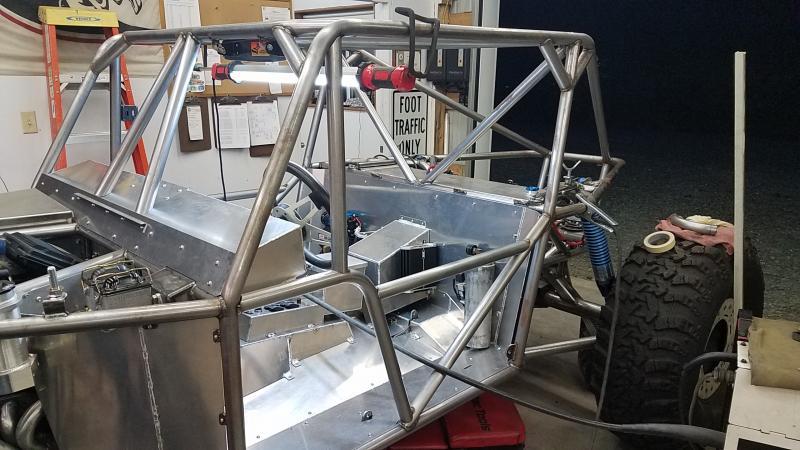

So the time had come to finally do the door bars. I still have one cross tube to do but I can't do that until I get the outer floor panels pulled--that will be done soon.. I ran the back bar lower due to I like having a spot for my elbo to sit...


Attachments

  • 20170718_214028.jpg
    69.9 KB · Views: 201

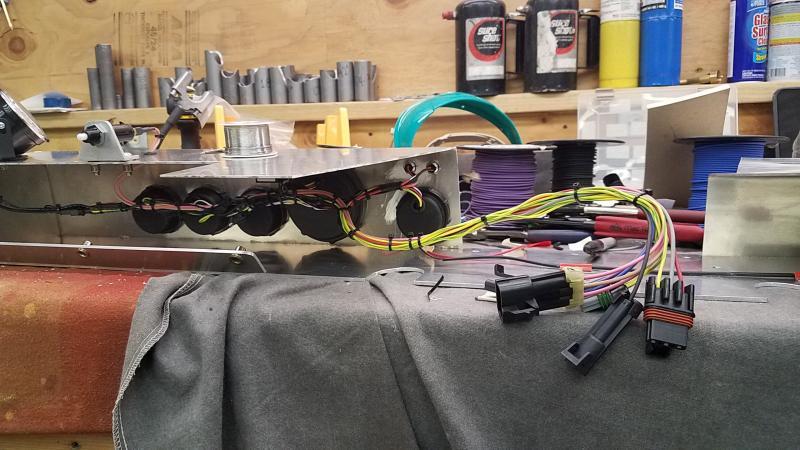

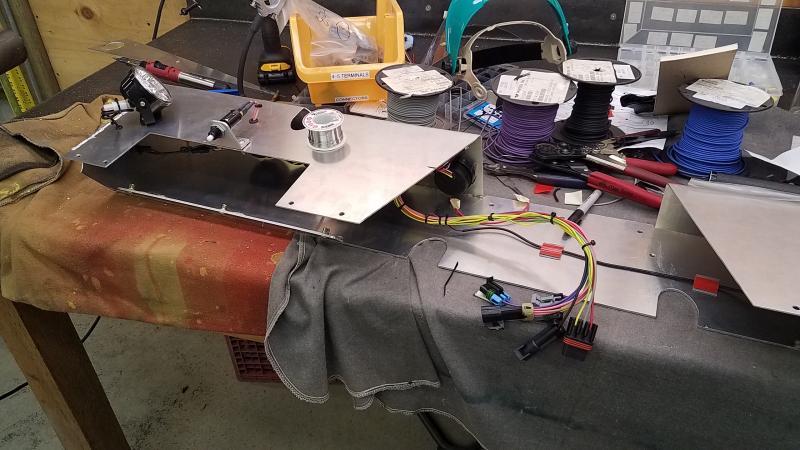

So time for a little fun and one thing I really do enjoy doing. Now my plan is to build the rig in a modular fashion as much as possible so I will be doing as much wiring as I can that can be torn apart for paint. I got the dash top wired up.


Attachments

  • 20170719_231559.jpg
    64 KB · Views: 203
  • 20170719_231602.jpg
    67.3 KB · Views: 202

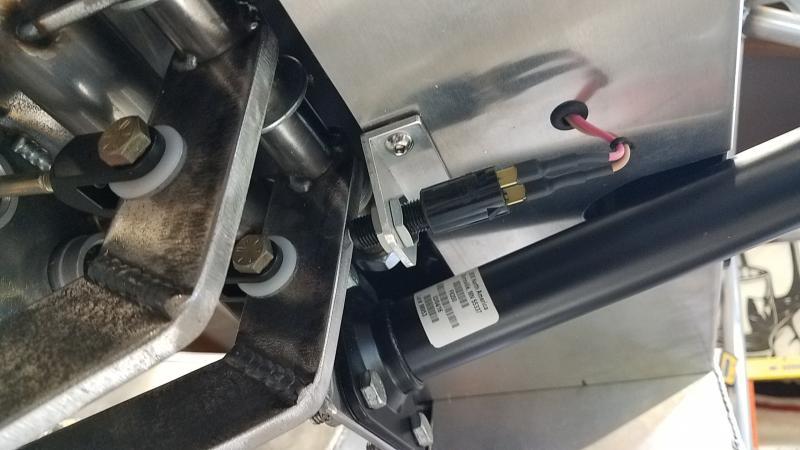

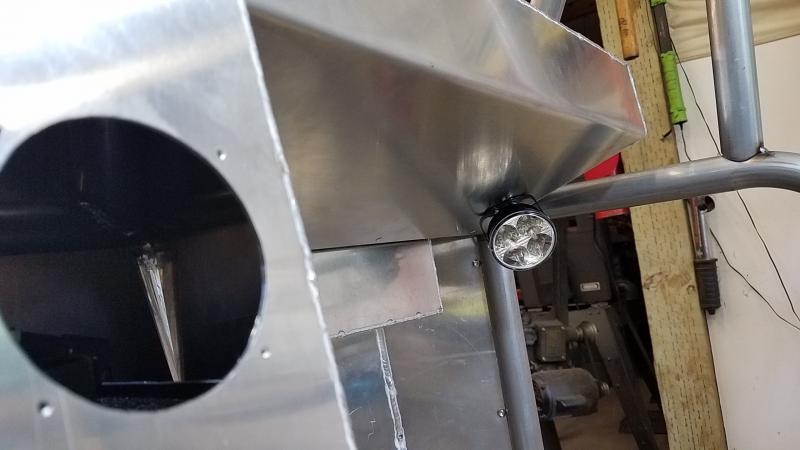

The dash panel gave me a perfect spot the brake switch and I also added 2 led lights under the dash for some form of interior lighting. I had something similar (not near as good) on my old toy and loved it.


Attachments

  • 20170720_183358.jpg
    46.8 KB · Views: 195
  • 20170720_183406.jpg
    37 KB · Views: 197

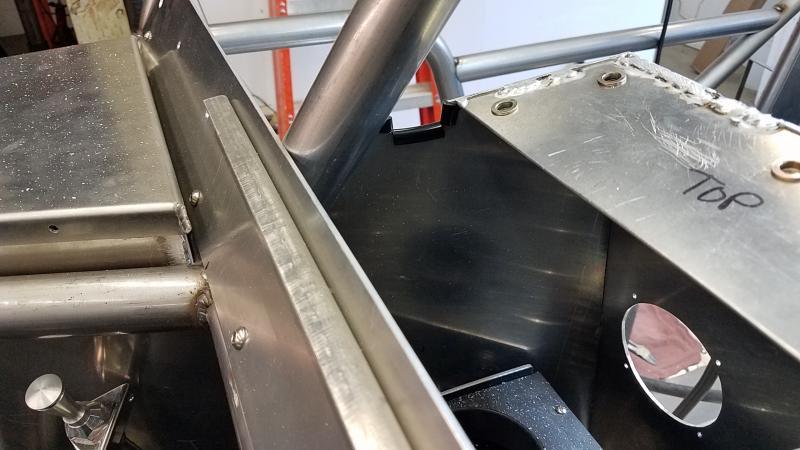

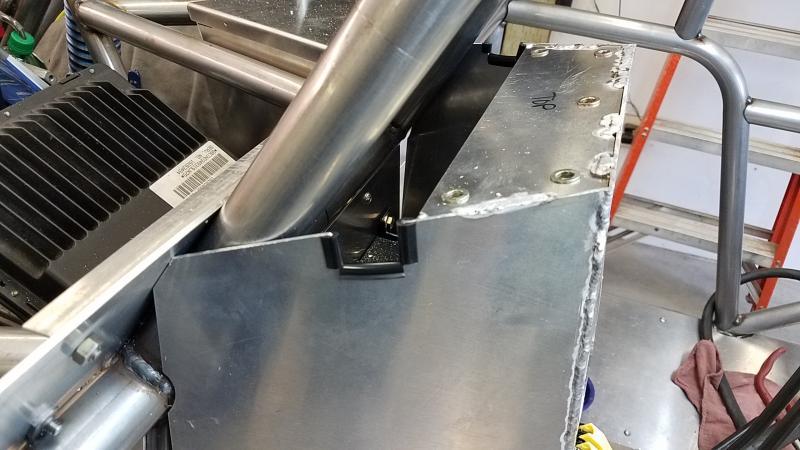

For the dash harness to fit perfectly I had to notch the center console.


Attachments

  • 20170720_182956.jpg
    57.6 KB · Views: 196
  • 20170720_183000.jpg
    51.8 KB · Views: 190

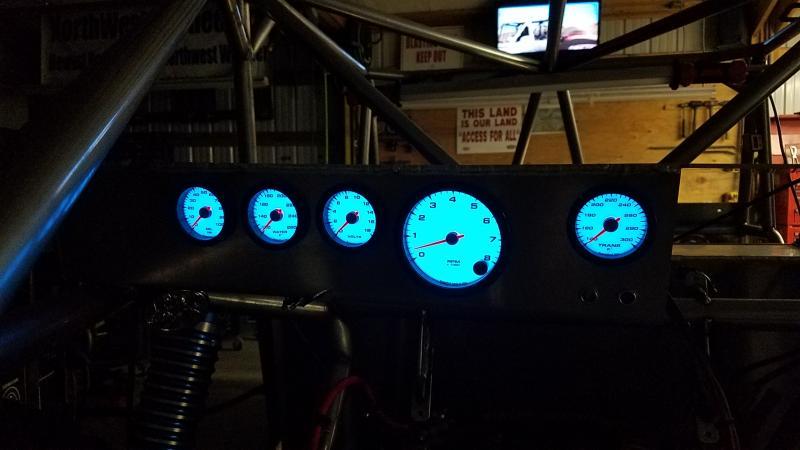

I just had to see what the gauges looked like...


Attachments

  • 20170719_232032.jpg
    39.3 KB · Views: 195

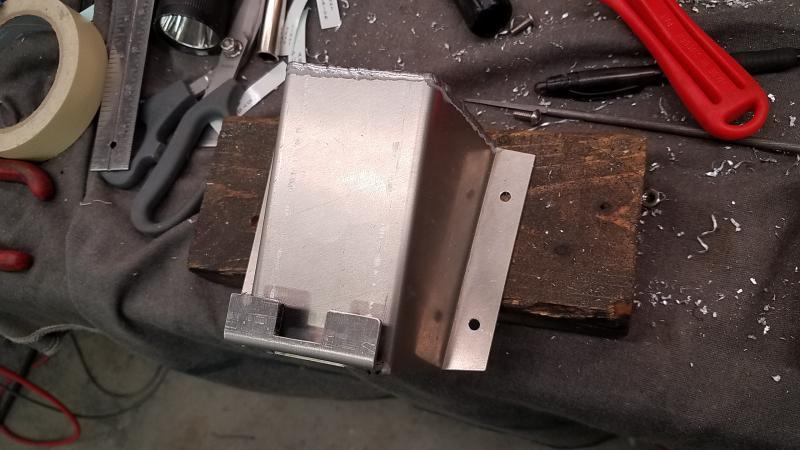

So I figured out where I wanted my Ipod but I didn't want it like in my toy simply Velcro'd on--I wanted a secure mount and something that would not let it be taken easily...

This is what I came up with


Attachments

  • 20170721_194749.jpg
    51.6 KB · Views: 172

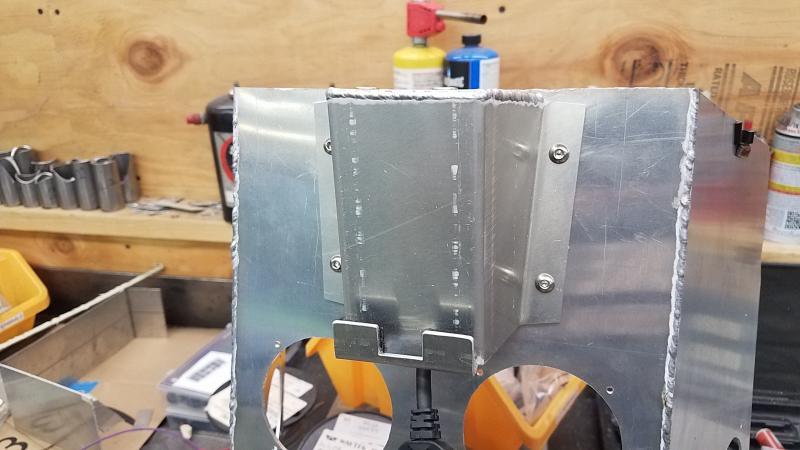

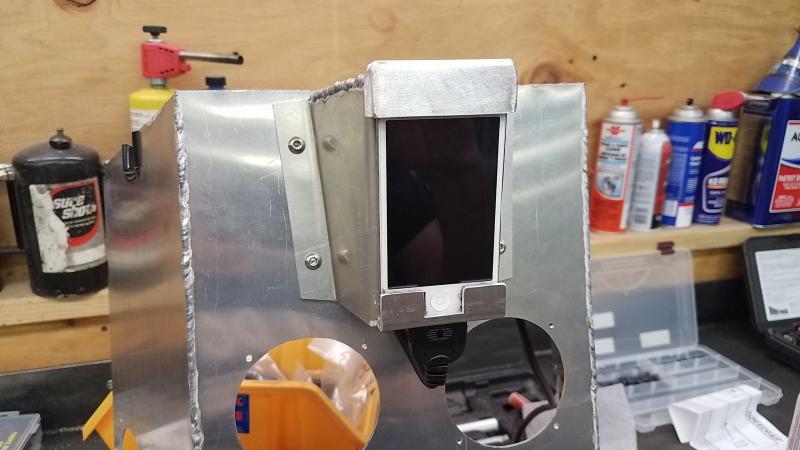

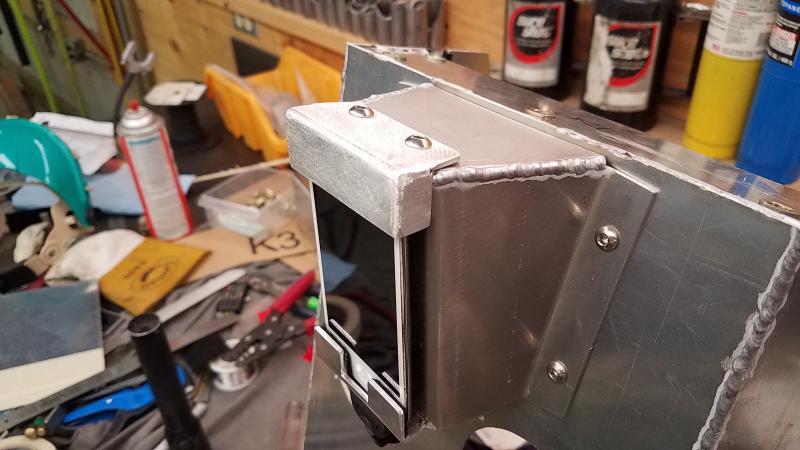

And there it is with the top portion that secures it into place..


Attachments

  • 20170721_195058.jpg
    51.1 KB · Views: 168
  • 20170721_195104.jpg
    45.5 KB · Views: 165

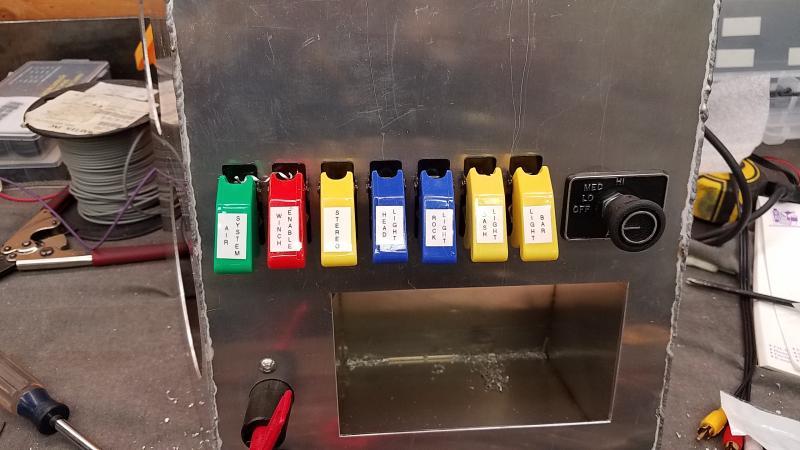

I figured it was a very wise idea to label the damn switch's because there is no way I will remember what is what,lol.. My toy had like 5 and I was always forgetting what was what.

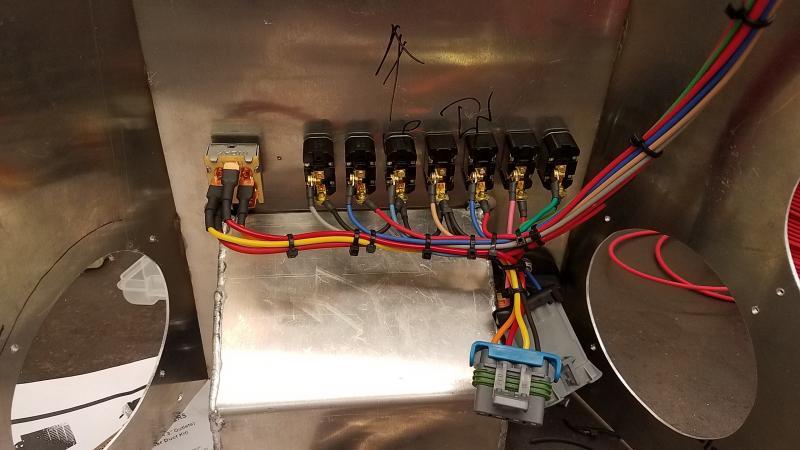

I also got the center console wired up. The feed wires to the master ignition switch will come from a separate loom.


Attachments

  • 20170721_200154.jpg
    52.7 KB · Views: 169
  • 20170722_110256.jpg
    48.1 KB · Views: 170

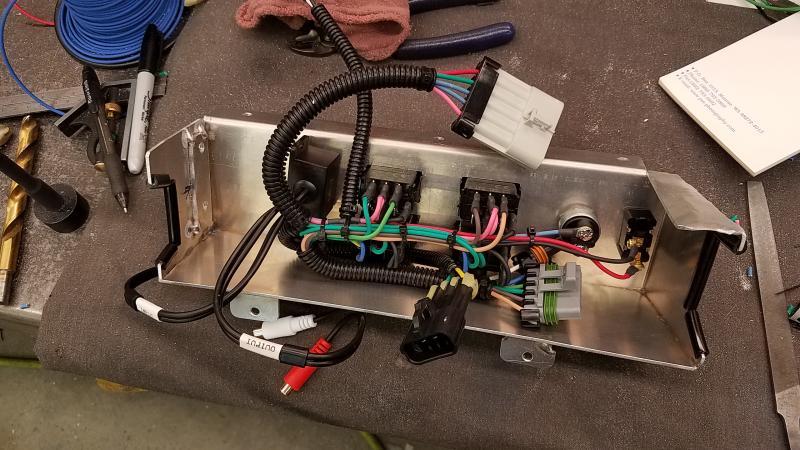

Next I got the switch pod wired up and again its going to be fully removable.


Attachments

  • 20170723_105316.jpg
    74.6 KB · Views: 167

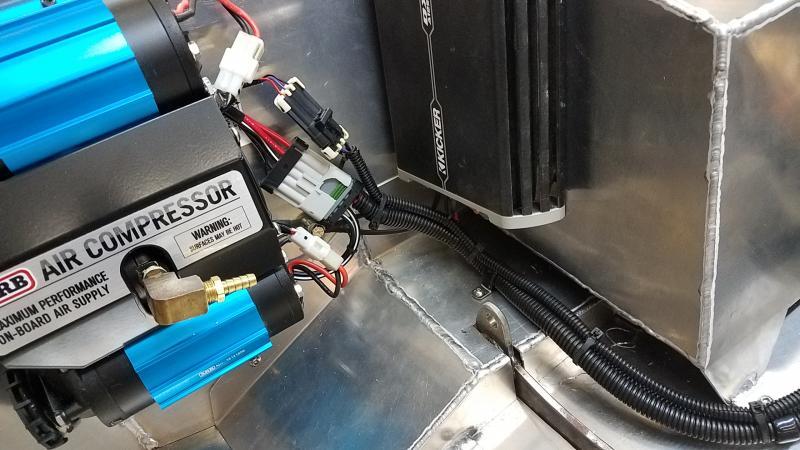

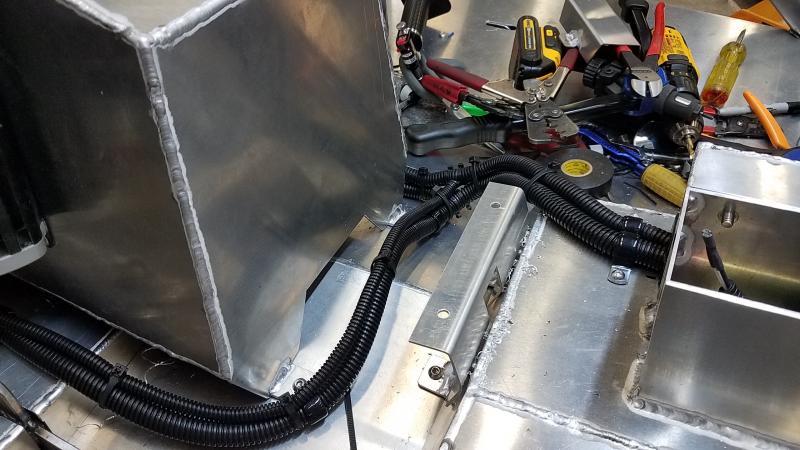

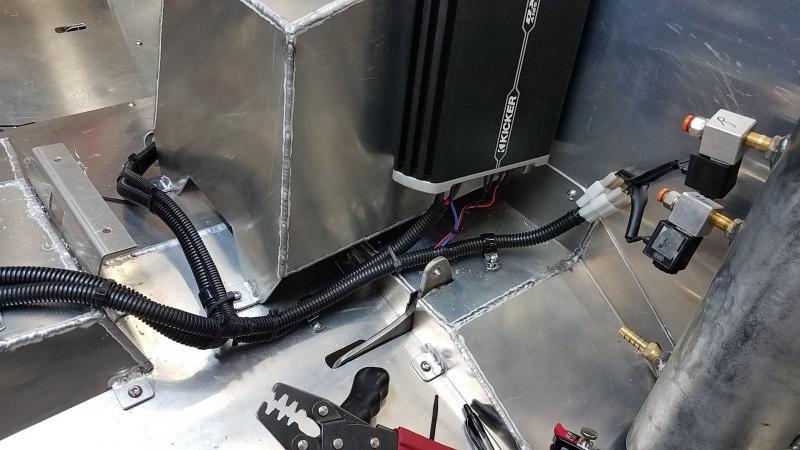

Now onto the cab wiring. I always prefer to start at the end and work my way forward so I started at the compressor and worked from there.

My plan is to totally complete the wiring in the cab so I can simply pull it out for paint.


Attachments

  • 20170723_220625.jpg
    56.9 KB · Views: 162
  • 20170723_220613.jpg
    62 KB · Views: 168
  • 20170723_220610.jpg
    62.7 KB · Views: 155

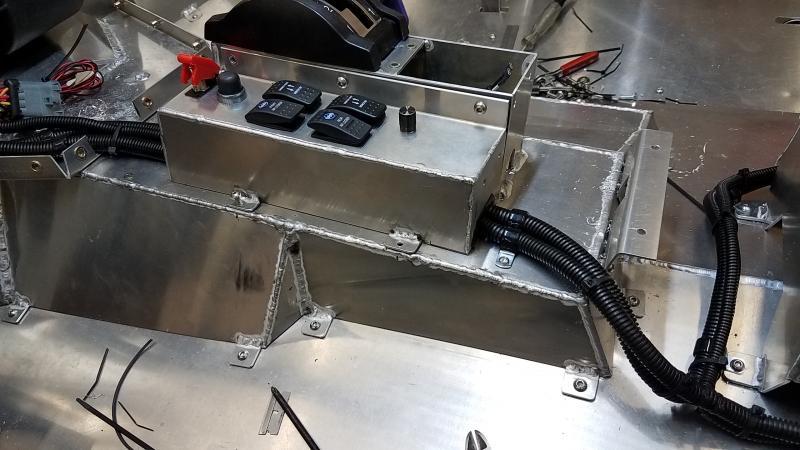

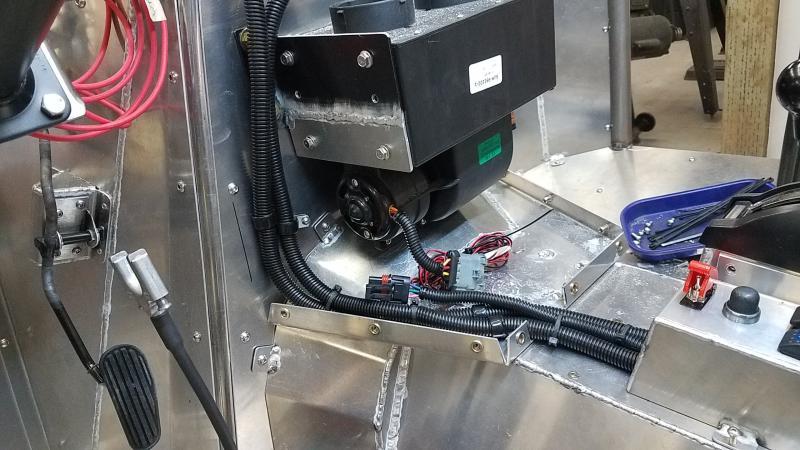

I notched the switch pod to run the harness thru it along with notching the center dash piece. Got the wiring to the top of the firewall and will work on getting it thru here soon.


Attachments

  • 20170723_220629.jpg
    59 KB · Views: 161
  • 20170723_220632.jpg
    66.3 KB · Views: 161

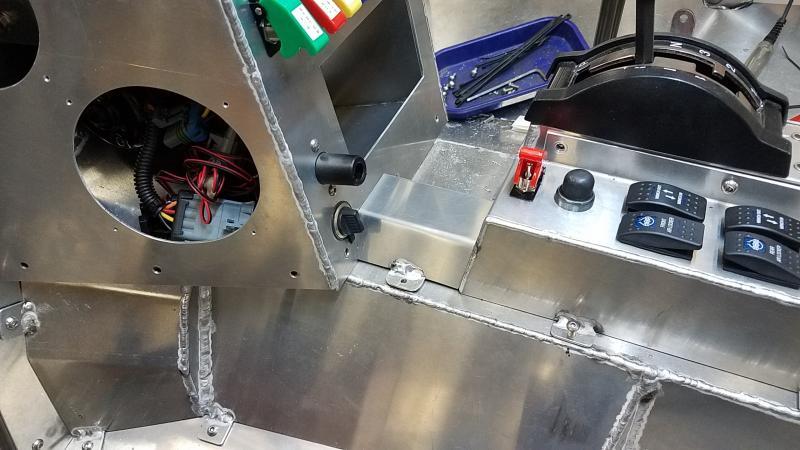

I also made a cover that bolts down to cover the front portion of the harness between the pod and center dash.


Attachments

  • 20170723_220814.jpg
    57.5 KB · Views: 162

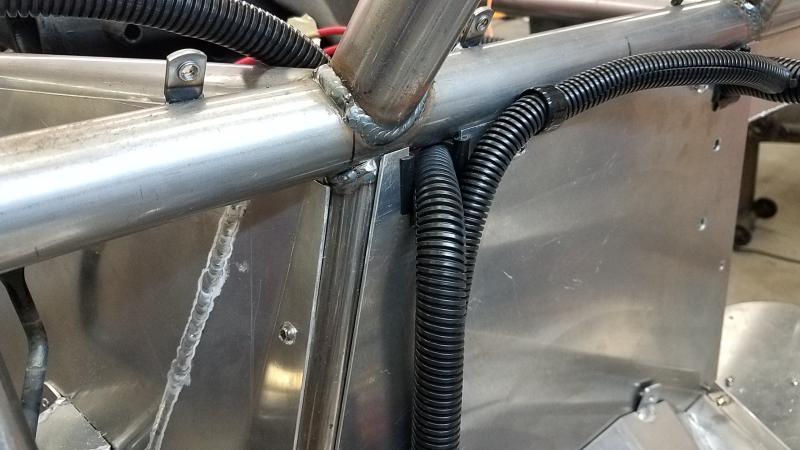

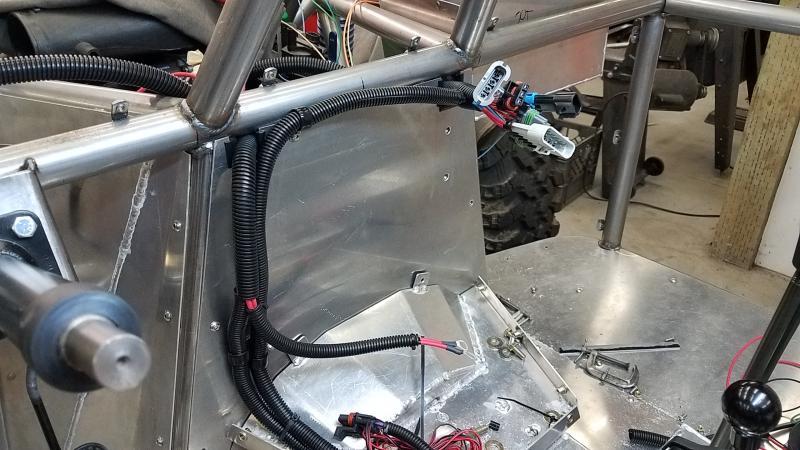

So I ran the wiring thru the firewall in 2 spots, one being the main feeds and other the rest of the wiring. I went and simply notched the top of the panel so the panel can be lowered (just enough room) and the wiring pulled forward.


Attachments

  • 20170725_214823.jpg
    68.6 KB · Views: 157
  • 20170725_214828.jpg
    51.6 KB · Views: 157
