Leftover buggy build

[zukrx]

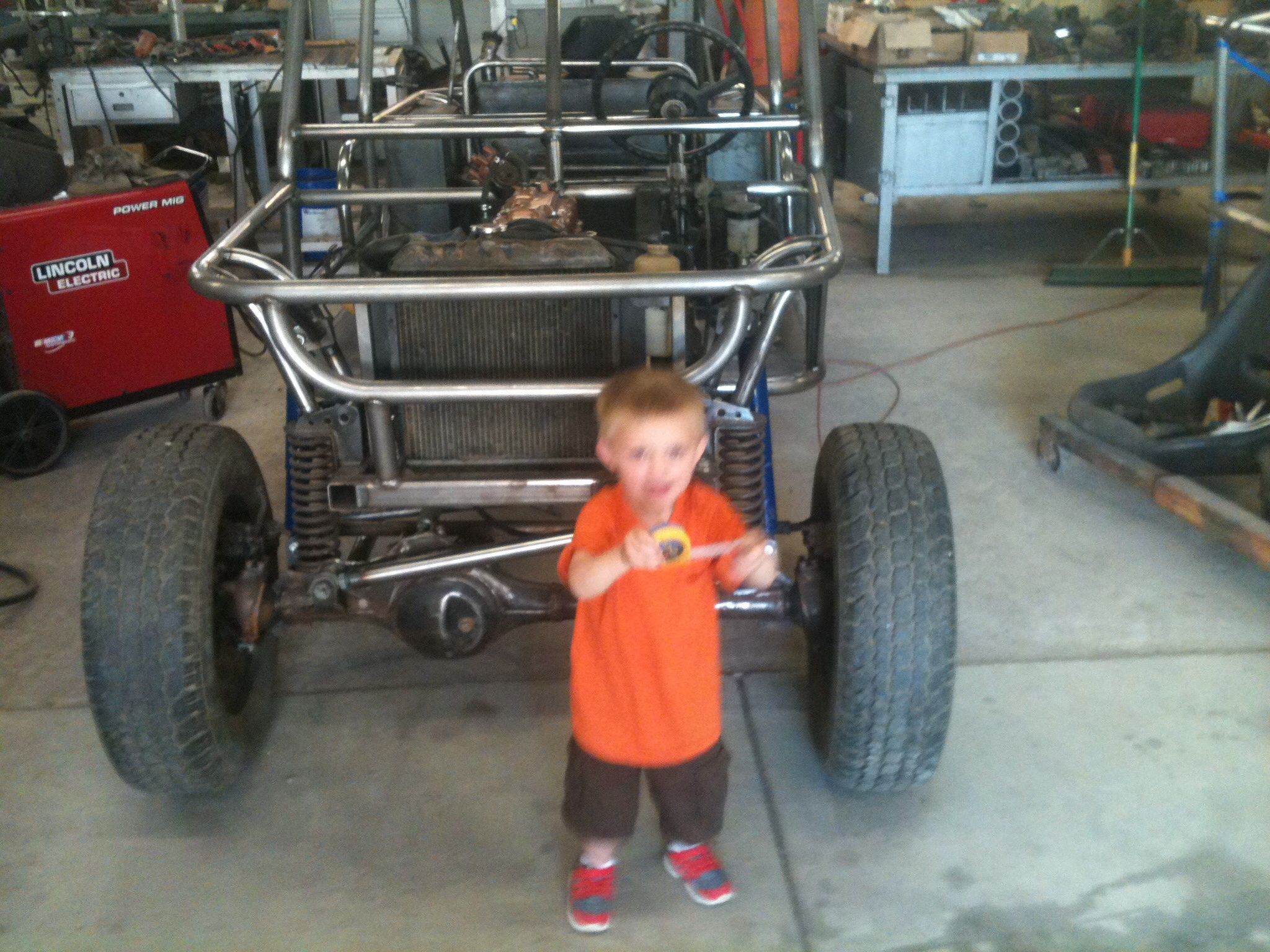

Ok, this is a buggy I started building a couple of years ago. The plan was to finish it in a couple of months and be wheeling with my friends. We'll, life had other plans for me and after over two years and a couple of different jobs it's starting to come together.
The name leftover comes from the use of leftover tube and material from other projects. This buggy was supposed to bridge the gap between my last buggy and my dream buggy.
Now, I'm not planning on doing any hard core wheeling with this thing. Just haul tools and coolers around and hang out with my friends while I finish a more serious build.



[zukrx]

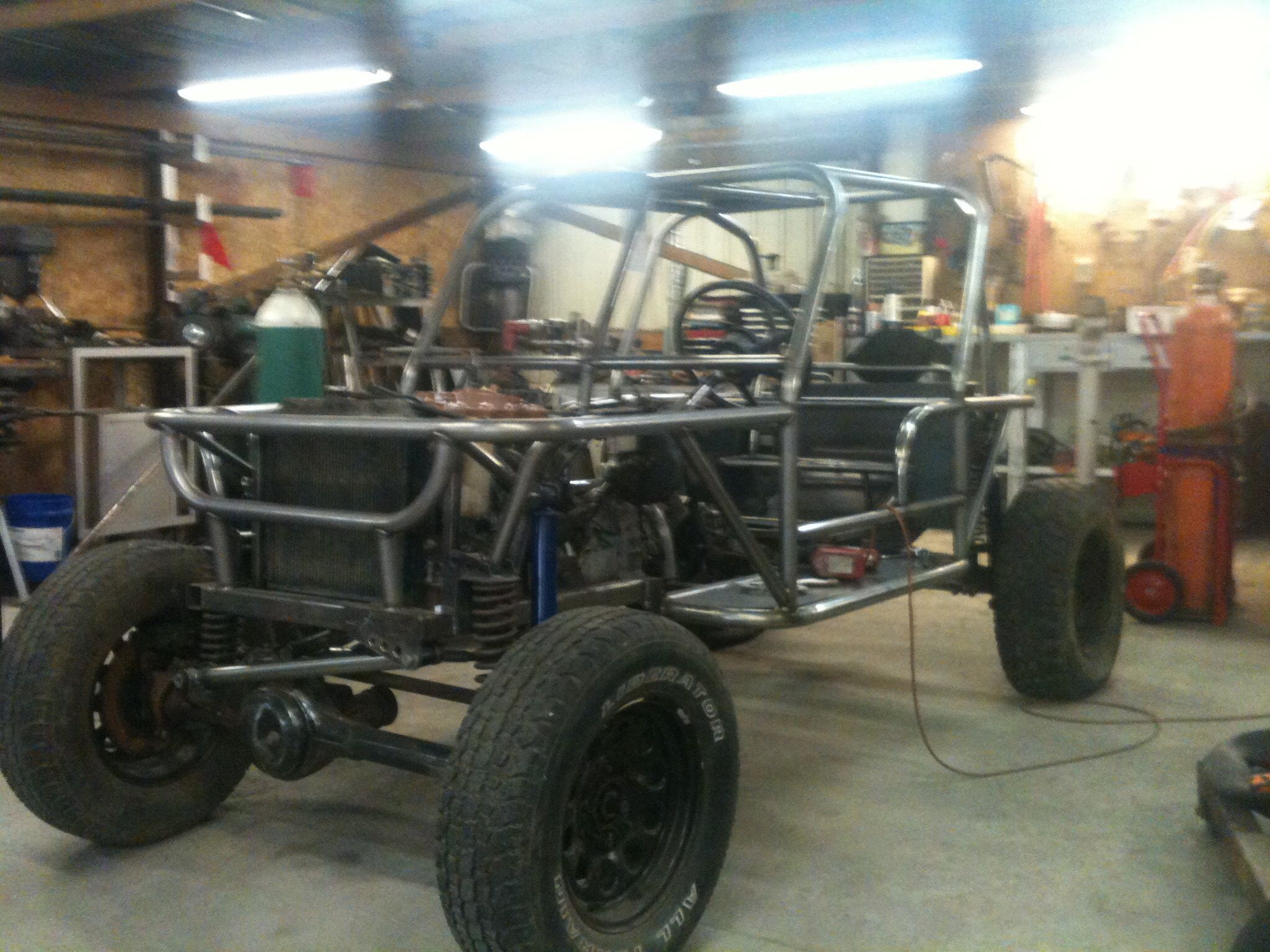

This buggy is all samurai drivetrain in a custom chassis. The main fame rails are 2x2 box tube. The rest of the chassis is 1"-1 3/4" tubing DOM and HREW. It is three link in the front with lanyard and four link in the rear. It is on some unknown coil rate springs in the front and factory suzuki sidekick springs in the rear.
The shocks are cheap NAPA ford ranger shocks in the front and super duty rear shocks in the rear.



[1tonxj]

Ok, this is a buggy I started building a couple of years ago. The plan was to finish it in a couple of months and be wheeling with my friends. We'll, life had other plans for me and after over two years and a couple of different jobs it's starting to come together.
The name leftover comes from the use of leftover tube and material from other projects. This buggy was supposed to bridge the gap between my last buggy and my dream buggy.
Now, I'm not planning on doing any hard core wheeling with this thing. Just haul tools and coolers around and hang out with my friends while I finish a more serious build.

I like it man, I'd like to build something just to mess around in around the house like this. Simple but still have fun on some power lines around me



[zukrx]

I like it man, I'd like to build something just to mess around in around the house like this. Simple but still have fun on some power lines around me

Thanks, I have a lot of fun building it. Money has been tight for me lately and this build was a way for me complete a buggy on a very small budget.



[Nuts]

If you're not Chris Cole you've cloned his buggy and kid! Took me a minute to realize what I was looking at.... Hurry up and let's get back in the woods, been way to long!



[mckeddie]

If you're not Chris Cole you've cloned his buggy and kid! Took me a minute to realize what I was looking at.... Hurry up and let's get back in the woods, been way to long!

Wait, have you been back in the woods?



[Nuts]

not yet, started wiring today so hopefully I'll be running by the weekend.



[1tonxj]

What's the inside width at the seats?



[zukrx]

What's the inside width at the seats?

48" at the seats



[Nuts]

Thats cool as ****! Now lets wheel!!!



[BPINAZ]

That's pretty damn cool!!! I like it.



[zukrx]

Thanks guys.
I'm very happy with it.



[onepieceatatime]

Re:

I'd rock the **** out of that thing!

Sent from my SM-G930T using Tapatalk



[infamous1]

Re:

That thing is sweet!!

Sent from my Z750C using Tapatalk



[Red97]

That thing is sweet..

What are the specs? Wheelbase, belly, tire?

Very nice.



[zukrx]

That thing is sweet..

What are the specs? Wheelbase, belly, tire?

Very nice.

100" in wheelbase, 20" belly on 32x9.5 tsl's.
The width is stock samurai.



[Jon Piper]

I really like that sammy



[Forbanger]

I like it! Simple, but could still get nasty in it!



[cjcook]

Glad to see you got this finished.



[zukrx]

Glad to see you got this finished.
Shame it took so long but it sat untouched for a long time.

Thats cool as ****! Now lets wheel!!!

I plan on getting out soon. Bead locks fit great thanks.
