LS steel oil pan Tilden Motorsports

Im84 · Feb 26, 2015

Just got my new pan and thought I'd post some pics. I was going with a kevko but went this route instead. I didn't want to go with a remote filter right now and this pan you can do either. Keep it in stock location or run it remote or run an accumulator as well which is what I will be doing this summer. I went with the pro series which comes with an 1/8" skid plate but it also wraps up on the sides as well which I liked. It also has weights welded on the doors in the sump to help them shut quicker. Weighed in at 21.8lbs. Came with a new pick up tube,drain plug,oil filter adapter,and filter. Overall quality seems pretty good. Pan flange seems true. 6 qt. capacity. Got it for 525$ shipped from Pacific Fab.

Rohlingoffroad · Feb 26, 2015

Yep that's the same pan I have

Im84 · Feb 26, 2015

I don't post up too many products but I was pretty happy when I saw this. I hope your happy with yours so far.

hokie_yj · Feb 26, 2015

I'm using the same pan on my build. Haven't put a drop of oil in it yet, but it seems like a great pan.

toreadorranger · Feb 27, 2015

They are made by champ pans. I just picked one up from sdparts minus the skid plate for about $350.

ap · Jul 9, 2015

How far out does that bottom section of pan stick out on passenger side of engine?

hokie_yj · Jul 9, 2015

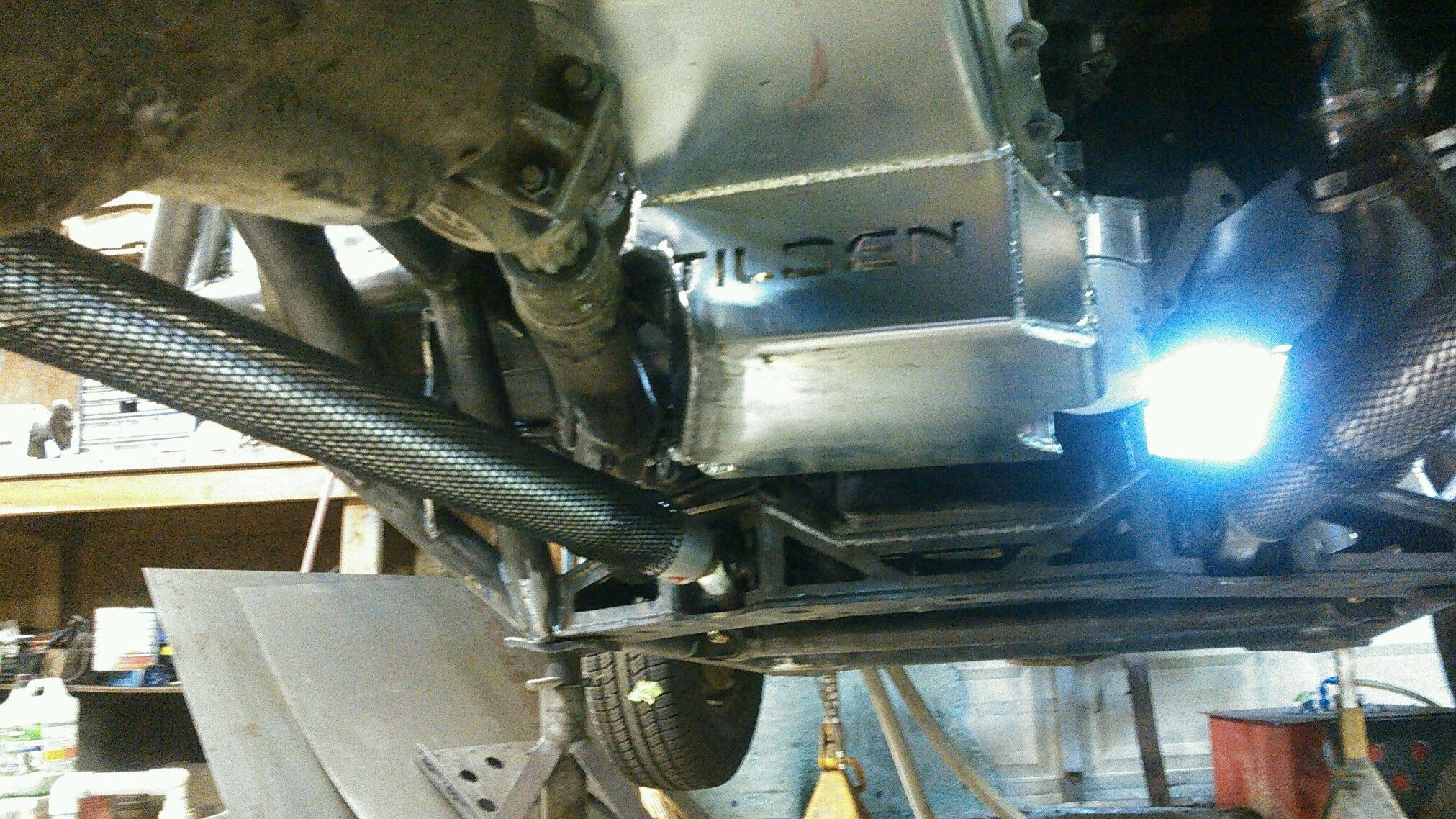

Not the best picture angles, but it's not that far.

Beefcake · Mar 31, 2016

toreadorranger said:
They are made by champ pans. I just picked one up from sdparts minus the skid plate for about $350.

[/quote

Do you happen to have a part number or anything i looked up the company but couldn't find that exact pan for that price. how is it working so far, looking for a good low profile pan just not $500

wicked_sten · Apr 2, 2016

http://www.champpans.com/products/p/ls1000/

I know the dude that runs the parts desk(somewhat local to me) a ton of companies re-badge this pan and sell it as there own for way more money including autokraft, tilden motorsports, pacific fab and many more

FlatlandFSJ · Apr 2, 2016

If I'm not mistaken Pacific Fab is Tilden Motorsports, it's their LS specific area of the company.

toreadorranger · Apr 5, 2016

Beefcake said:
toreadorranger said:

They are made by champ pans. I just picked one up from sdparts minus the skid plate for about $350.

[/quote

Do you happen to have a part number or anything i looked up the company but couldn't find that exact pan for that price. how is it working so far, looking for a good low profile pan just not $500

Click to expand...

LS1000 Pan
LS1001 oil filter adapter
750LS1 pickup

It appears Champ has raised their prices since I bought mine.

Ls performance connection · Apr 5, 2016

I know I have a couple different options for pans with trap doors and baffles for a lot cheaper. If your interested I will take a look.

onepieceatatime · Apr 5, 2016

Re: Re: LS steel oil pan Tilden Motorsports

Ls Performance Connection said:
I know I have a couple different options for pans with trap doors and baffles for a lot cheaper. If your interested I will take a look.

Post up what ya find. I'd like to replace my truck pan.

Sent from my SM-G930T using Tapatalk

Jduck · Apr 5, 2016

Re: Re: LS steel oil pan Tilden Motorsports

onepieceatatime said:
Post up what ya find. I'd like to replace my truck pan.

Sent from my SM-G930T using Tapatalk

x2

Hudson1 · Apr 5, 2016

I had to modify mine to clear the front driveshaft.

jkh533 · Apr 7, 2016

Re: Re: LS steel oil pan Tilden Motorsports

Ls Performance Connection said:
I know I have a couple different options for pans with trap doors and baffles for a lot cheaper. If your interested I will take a look.

X3

Sent from my SM-G900V using Tapatalk
