Project: Bumble Bee 5.3L V8 Swap!

[InDaShop]

The pinouts and stuff are on pirate somwhere and LS1truck.com if thats what you are talking about.

funny you would say Pirate. I googled,a nd tracked down tons of schematics, but guess where they were acturate and for the entire system? Yeah pirate. Best tech on the web.



[1TONZR2]

I have some pinouts, not sure if they changed throughout the years though.



[CharlieInTheTrees]

Not much is going on now guys... Anyways...any body got pics on how the wired up there harness from Jim's Performance...?



[Marty]

Mines in the garage downstairs, what do you want pics of? I can tell you where each colored wire and where each sensor go if thats what you need.



[CharlieInTheTrees]

Mines in the garage downstairs, what do you want pics of? I can tell you where each colored wire and where each sensor go if thats what you need.

I know where everything goes...just wondering how everyone is routing the wires/loom....



[Marty]

Oh, well mine is not professional at all or in a jeep or buggy but I will be back in a min with a pic



[Marty]

Heres a shitty pic. Computer is on the firwall the engine wires go through a big hole with rubber around it, the fuses and OBD connecter are off to the right, then the fuel pump, ignition and tack wire, go to the left in loom. I am about to make an aluminuim "kick" panel for it so it doesnt become a footrest.



[CharlieInTheTrees]

Im talking on the Motor...hehe...just want it clean looking...That is all



[Marty]

Oh, thats the easy part. He gives you the perfect amount of wire to make it look good.



[CharlieInTheTrees]

Oh, thats the easy part. He gives you the perfect amount of wire to make it look good.

Its very tight...so I just want to see how other people do it... Pics will be nice..



[CharlieInTheTrees]

Hello guys

Its been awhile since I updated this thread. Well, I order somemore parts and hopefully get started on this again..

I ordered

Idle Air Control Sensor
e2000 Fuel Pump
New Drive Belt
Torque Converter Bolts
Fuel Filter
3 90 degree -8an Fitting
RCI 15gal Fuel Cell
25ft of regular 3/8 fuel hose

I cant believe all of these parts total up to 5 bills...



[CharlieInTheTrees]

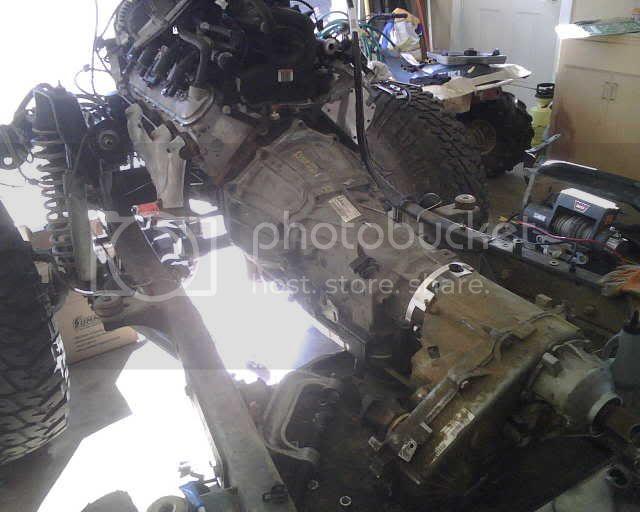

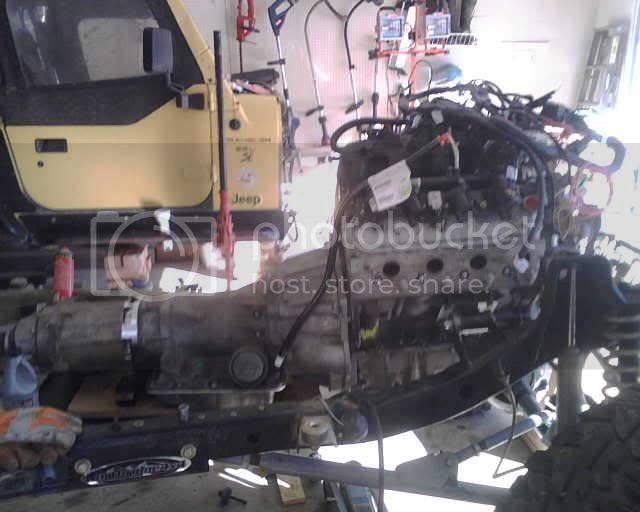

Well, here are some more pics...Need to clean up the garage..getting messy... Sorry Guys..this was taken on my Cell Phone...
