Totalled
That Ford Guy
Comp 290/.578 roller.
-
Help Support Hardline Crawlers :
Dad's Mach 1
- Thread starter Totalled
- Start date
Totalled
That Ford Guy
Heads are back from the machine shop.
messix
Well-Known Member
man those exhaust valves are shrouded pretty bad compared to modern heads
crash2
-Oh no I picked a side-
Looking good pat.......
Totalled
That Ford Guy
New dash bezel, shifter surround, and passenger trim.
Need to give the rest a good cleaning, replace the center gauge bezel, and refinish the floor console to match.
Need to give the rest a good cleaning, replace the center gauge bezel, and refinish the floor console to match.
Totalled
That Ford Guy
Remainder of the hardware showed up.
Totalled
That Ford Guy
I've gone green!
Swapped the dash light LEDs from HiPo parts out to Green SMDx6 LEDs from superbrightleds. Also swapped the dome and map lights out to white LEDs.
Swapped the dash light LEDs from HiPo parts out to Green SMDx6 LEDs from superbrightleds. Also swapped the dome and map lights out to white LEDs.
CHOP SHOP
Well-Known Member
Nothin is more green/eco friendly than an empty fuel tank! :redneck:
Totalled
That Ford Guy
Totalled
That Ford Guy
Pulling the rear end to swap in a powetrax no-slip, alloy axles, and fresh wheel bearings. Probably will clean and paint the housing since I went this far... Then I'll put fresh springs, sway bar, and cal tracs bars in.
Gee, I wonder why the driver's side sat lower than the passenger side...
These are the factory tie down brackets... They are supposed to be removed by the dealer when it's prepped for sale.
Factory rear sway bar.. It's kinda cute, huh?
Stopping point for the day.
Gee, I wonder why the driver's side sat lower than the passenger side...
These are the factory tie down brackets... They are supposed to be removed by the dealer when it's prepped for sale.
Factory rear sway bar.. It's kinda cute, huh?
Stopping point for the day.
Totalled
That Ford Guy

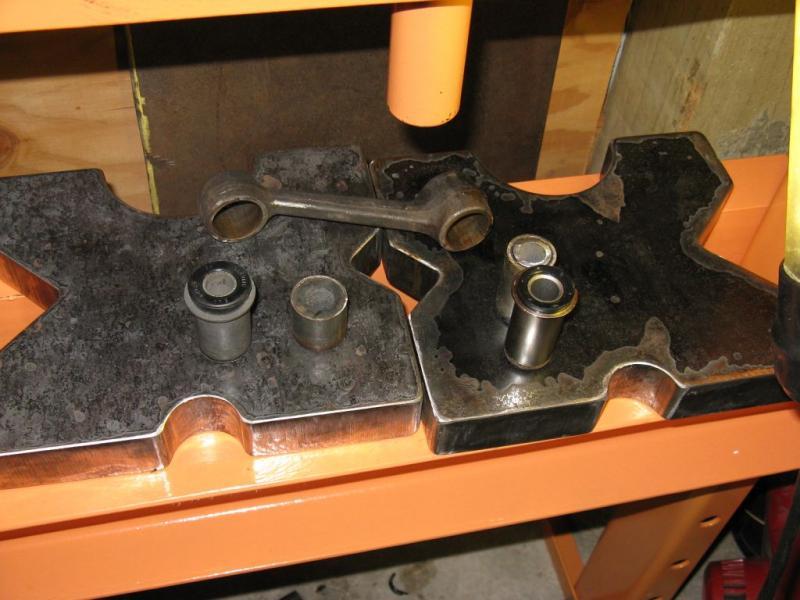

Got some 1.5" plate steel arbor plates for my press, and put it to work pressing the rubber bushings out of the new springs to replace them with the aluminum bushings that come with the caltracs bars.
Original 4 leaf spring vs 5 leaf new springs.
Caltracs bars and global west delalum shackles.
Original 4 leaf spring vs 5 leaf new springs.
Caltracs bars and global west delalum shackles.
Poohbair
Pabst O'Holic
Cant wait to see how the Cal Tracks look installed.
Totalled
That Ford Guy
New vs old rear sway bar:
The original drive shaft is really crusty, pitted, and ready for retirement.
And the rear awaiting a cleaning, moser axles, fresh wheel bearings, and swapping the lock-rite for a powertrax no-slip.
The original drive shaft is really crusty, pitted, and ready for retirement.
And the rear awaiting a cleaning, moser axles, fresh wheel bearings, and swapping the lock-rite for a powertrax no-slip.
Totalled
That Ford Guy
Spent the last two weekends jumping on parts deals for my two pickups. I have next week off so I will get some progress done on the Mach.
Found out most of the clunking I heard while driving from the rear was the f'd up left tail pipe hitting the rear axle...
New aluminum drive shaft from street or track showed up, so I put the slip yoke on it, and dropped the rest of the exhaust out. Manifolds are up next.

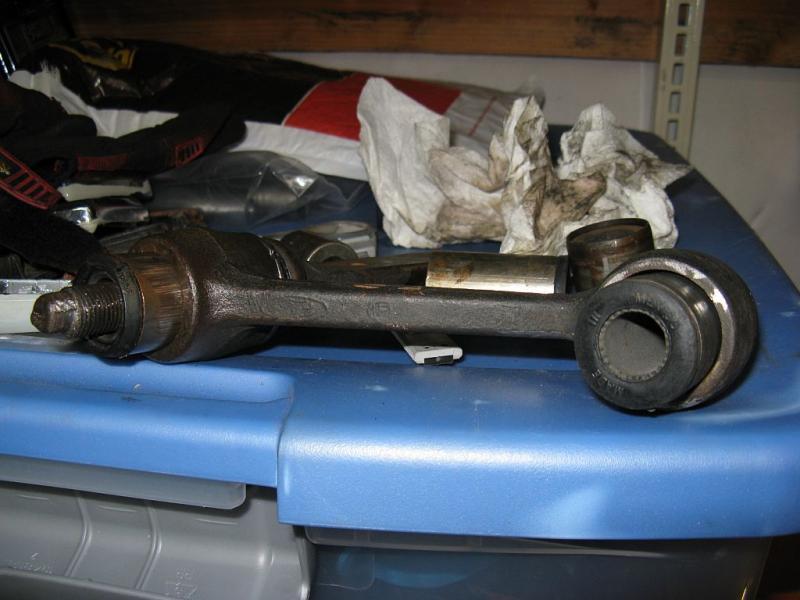

Got the manifolds and steering linkage out tonight.
Found out most of the clunking I heard while driving from the rear was the f'd up left tail pipe hitting the rear axle...
New aluminum drive shaft from street or track showed up, so I put the slip yoke on it, and dropped the rest of the exhaust out. Manifolds are up next.
Got the manifolds and steering linkage out tonight.
hwcurtice
Well-Known Member
:awesomework:
I thought after not seeing anything for so long, and now this thread is back, it was to announce the car had been stolen/totaled/sold and we wouldn't see it truly come to life.
:awesomework:
This year of 'Stang is my favorite. The original 'Gone in 60 Seconds' had one of these, well a couple of them, only in the Ford orange.
I thought after not seeing anything for so long, and now this thread is back, it was to announce the car had been stolen/totaled/sold and we wouldn't see it truly come to life.
:awesomework:
This year of 'Stang is my favorite. The original 'Gone in 60 Seconds' had one of these, well a couple of them, only in the Ford orange.
Totalled
That Ford Guy
Fawk... First roadblock. '73s have 1 year only motor mounts that aren't reproduced. 71/72 poly mounts don't work with '73 frame brackets. Working on getting 71/72 frame brakets.
reefermadnes
Well-Known Member
Sweet ride:awesomework: Hope the truck parts work for ya. I got the truck on the trailer today, so if you still want the 9" I will yank it out tomorrow?
