Finally....Da new rig..

[crash2]

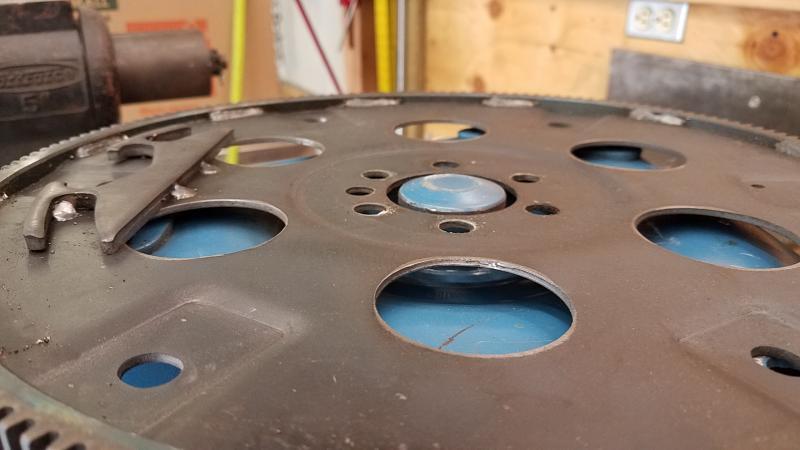

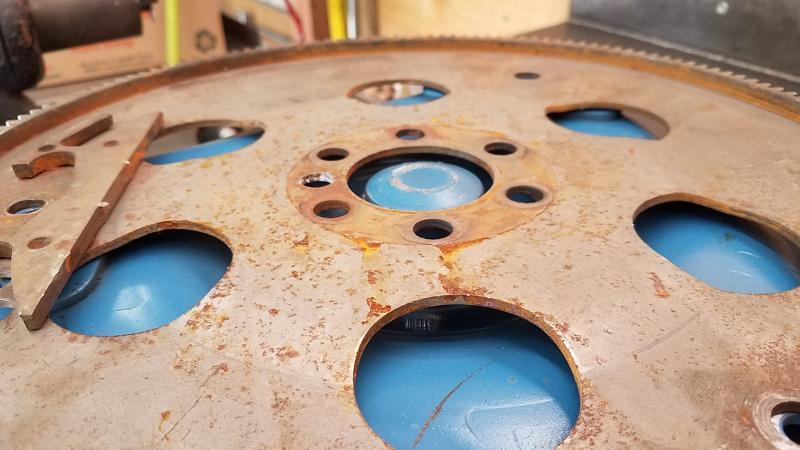

So when I got the motor I thought it would be a good idea to replace the flex plate so I ordered one and threw it on when I originally put the motor/trans in the car. When I went to bolt the converter up it felt like the converter had to move too far to reach the flex plate. So before I slap the tranny back in I figured I would check it and glad I did. The new flex plate certainly wasn't 100% correct and threw the old one back in since there isn't anything wrong with it.



[crash2]

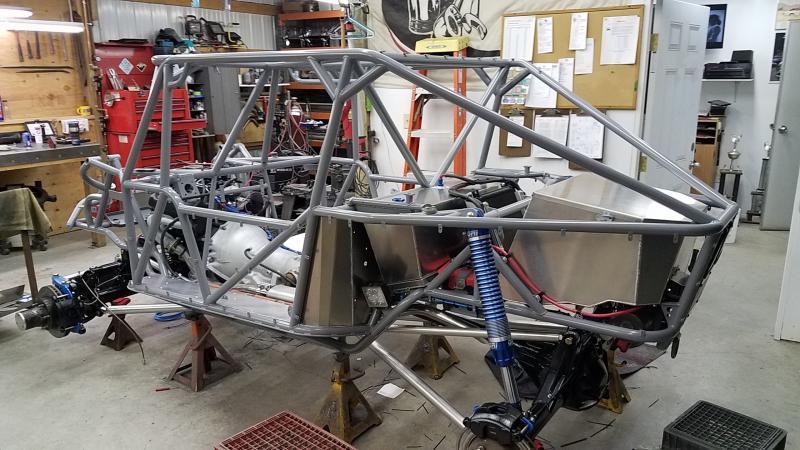

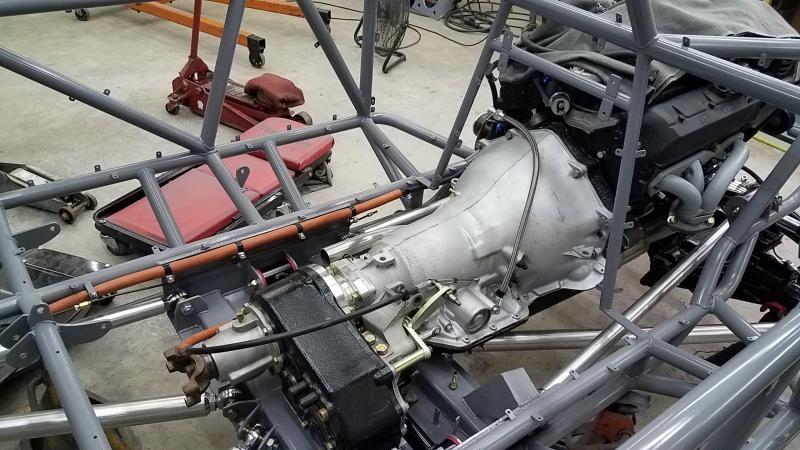

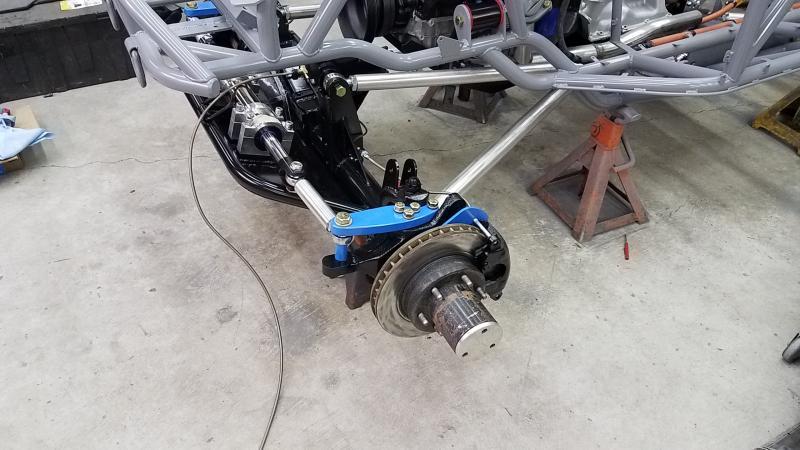

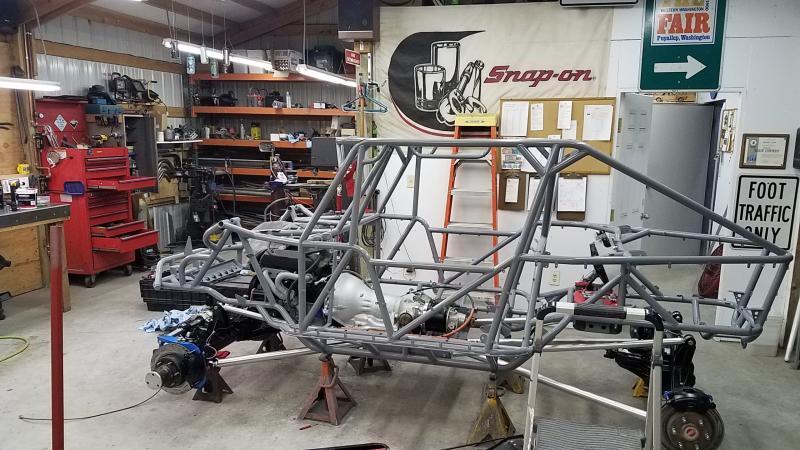

So I got the front end fully assembled and under the rig and the tranny/t-case in.



[crash2]

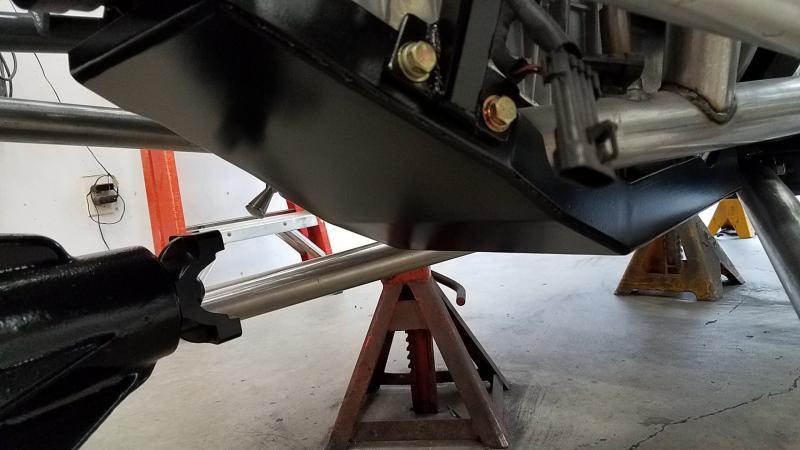

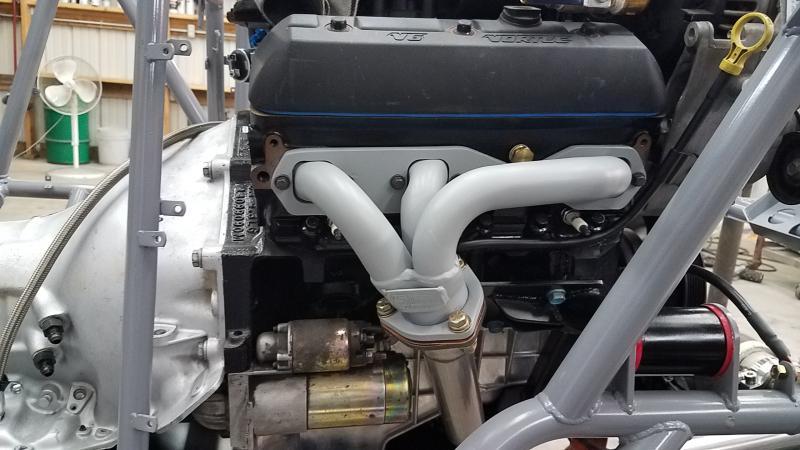

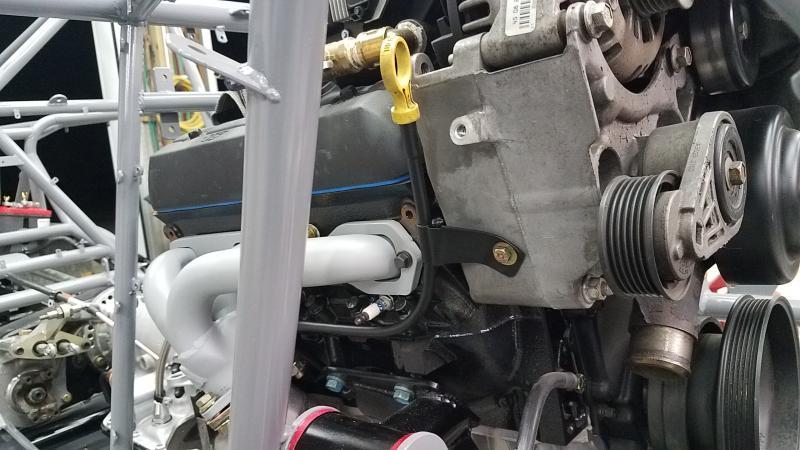

I got the headers mounted along with the Y-pipe. My first attempt to make the stock dipstick tube fit with the headers failed so I ordered a replacement and was able to make this one fit to a tee thanks to my prior mistakes,lol.. Once the y-pipe was in I was able to get the motor skid in and it went in far better than I was expecting.....



[crash2]

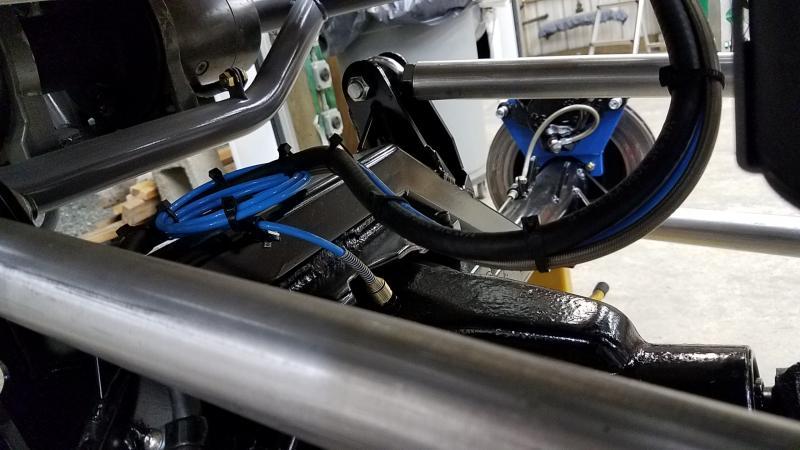

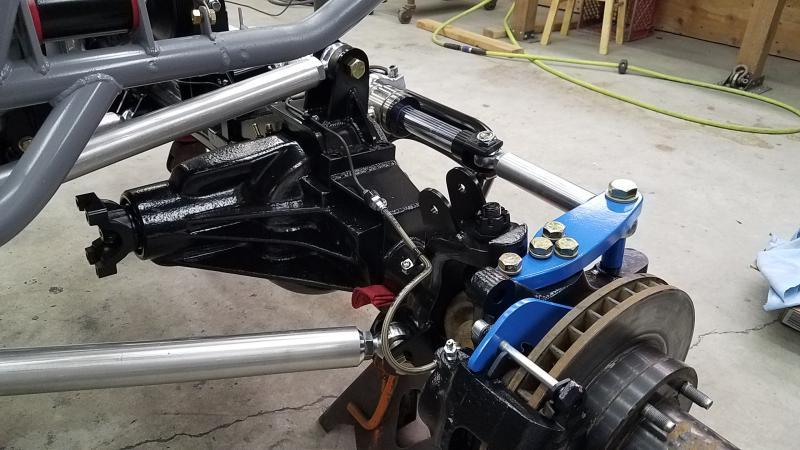

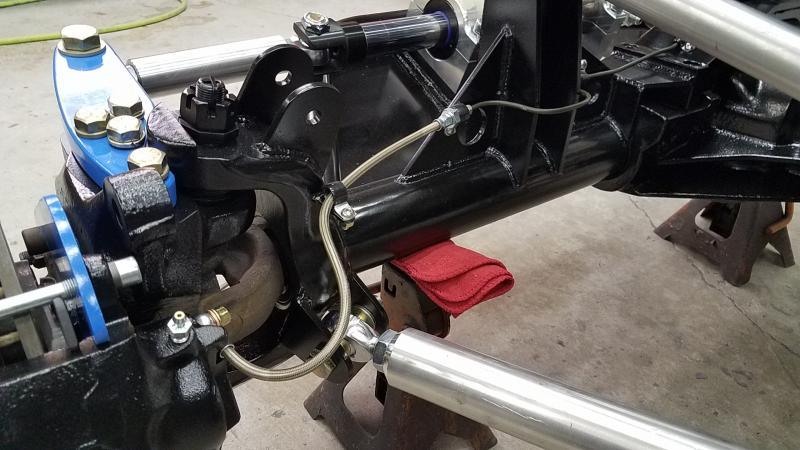

I got the main power feed and brake lines ran. Only thing left on the driver side to run is the arb line.



[crash2]

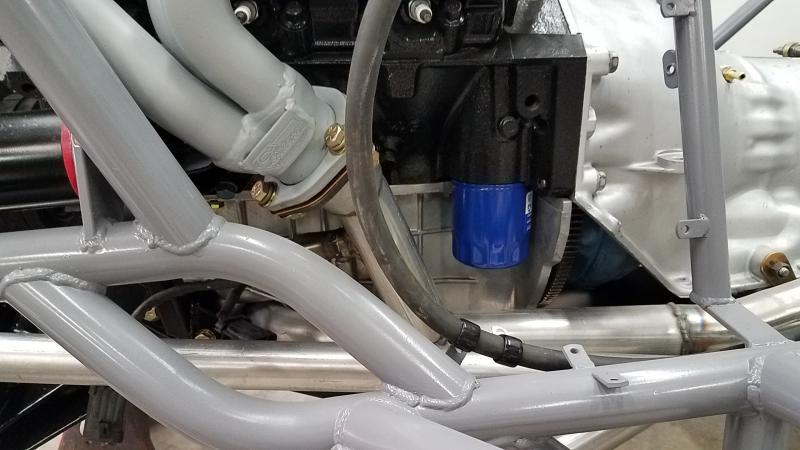

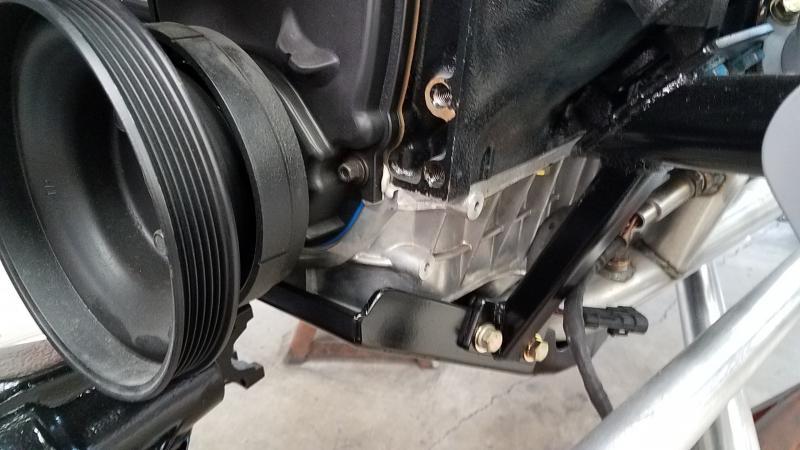

I swapped the oil filter for the shorter version. In the a/c delco line the pf52 is what the motor calls for but the pf47 is the shorter version and will work just fine.



[crash2]

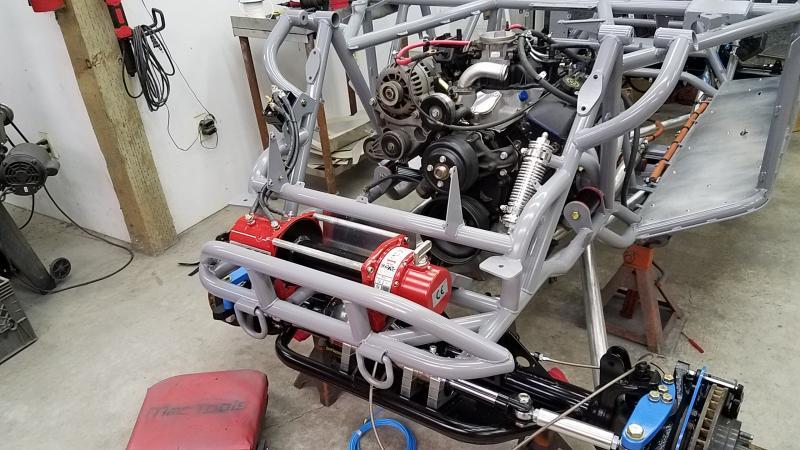

Got the front winch and p/s cooler installed....



[crash2]

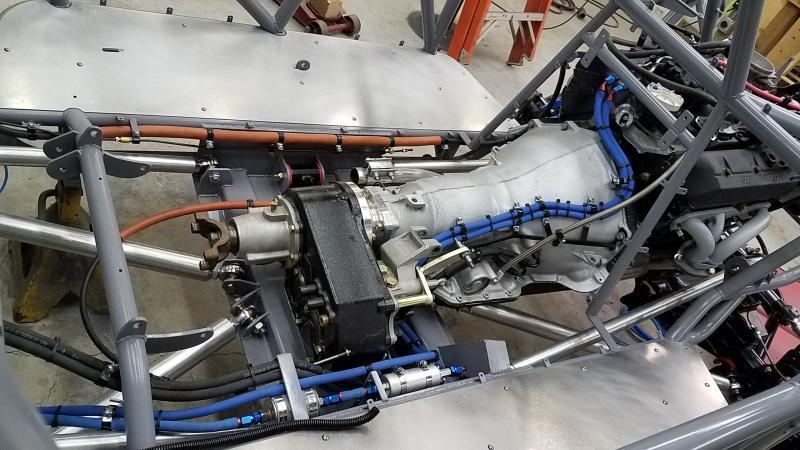

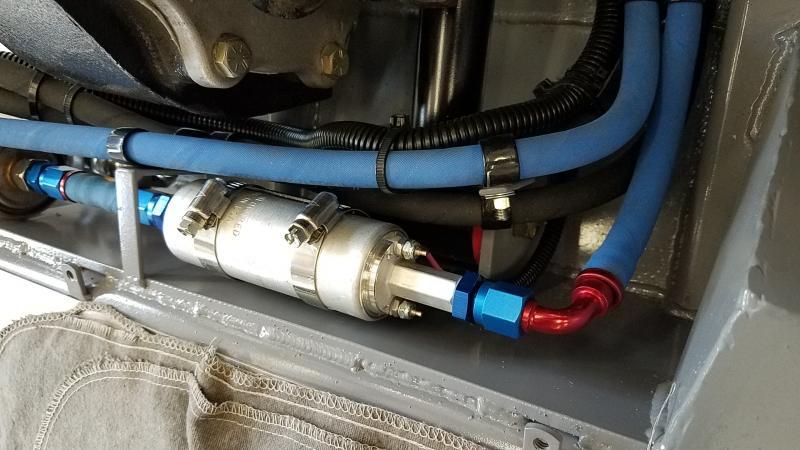

This took a bit of time to pull the fuel lines off the cradle and get it painted and then got the tranny and fuel lines/pump back into the rig. Ya know how it is when ya build something complex and remove it and back in and happy with how it fit right back into its proper spot..



[crash2]

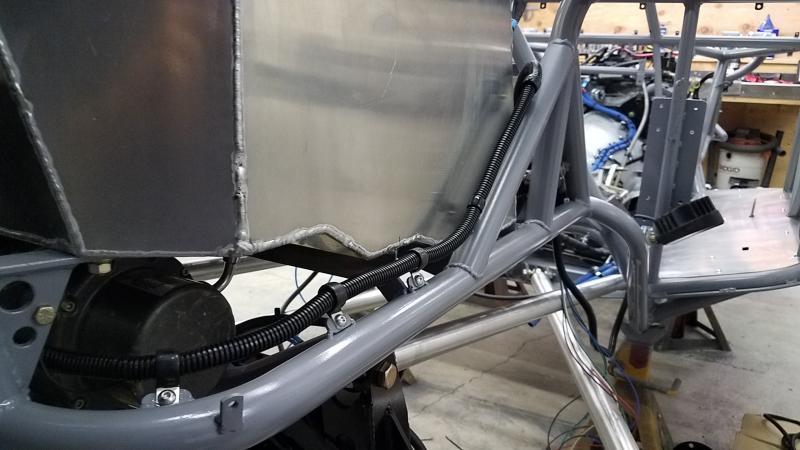

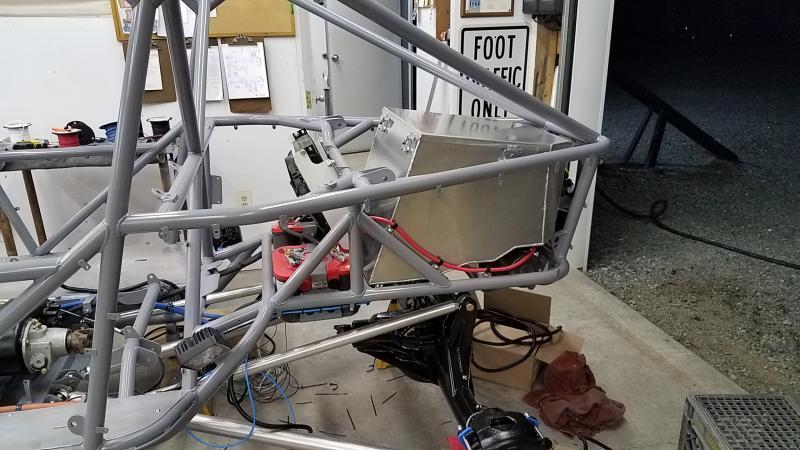

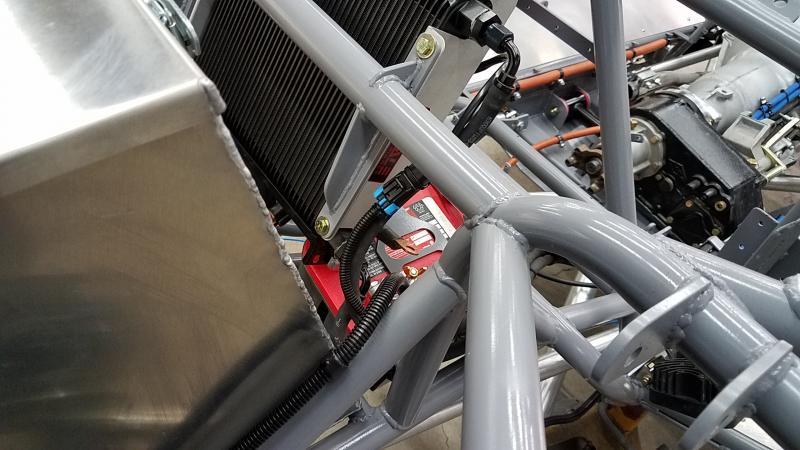

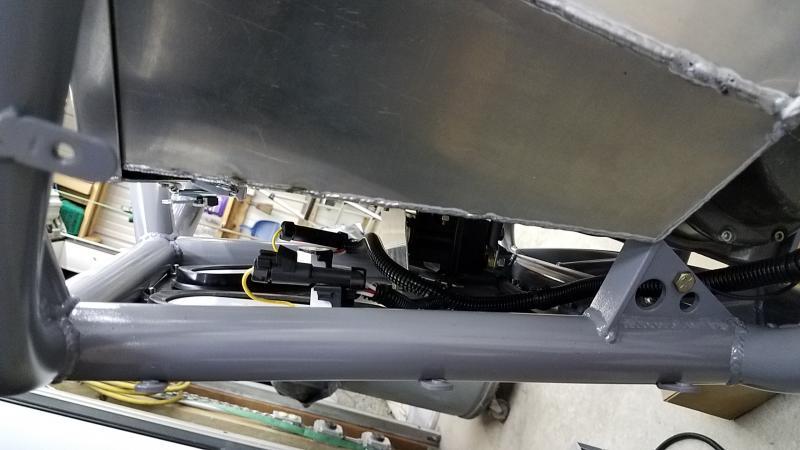

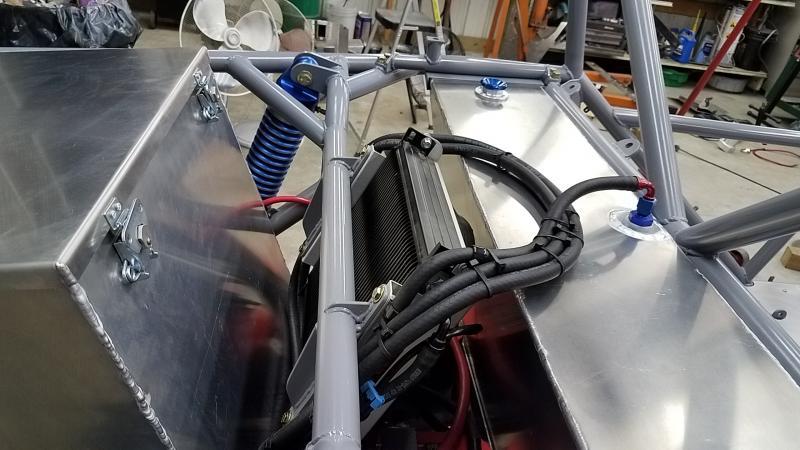

So I am going to concentrate on getting the back of the car done. Started by getting all the big parts in (batteries,trans cooler and winch) and then onto getting the rear wiring harness built and ran forward.



[crash2]

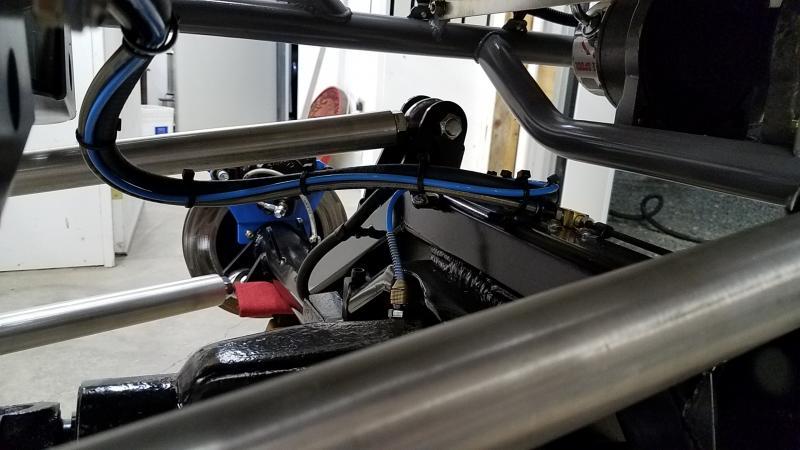

I got the rear arb line and vent hose ran. I always leave extra line at the diffs in case of a needed repair.



[crash2]

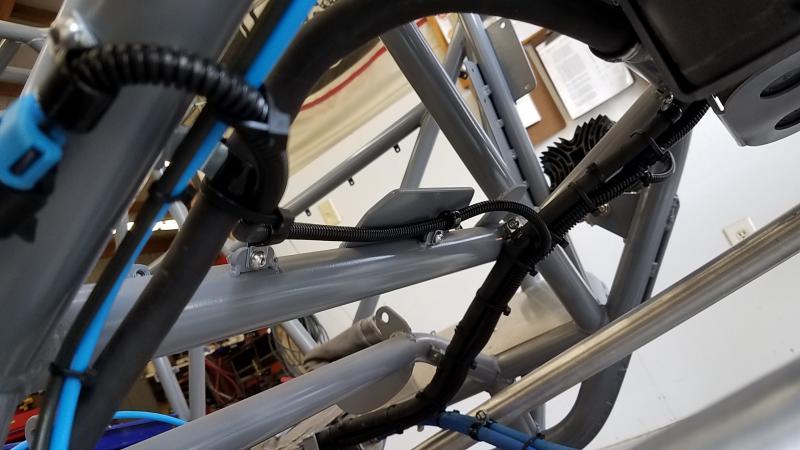

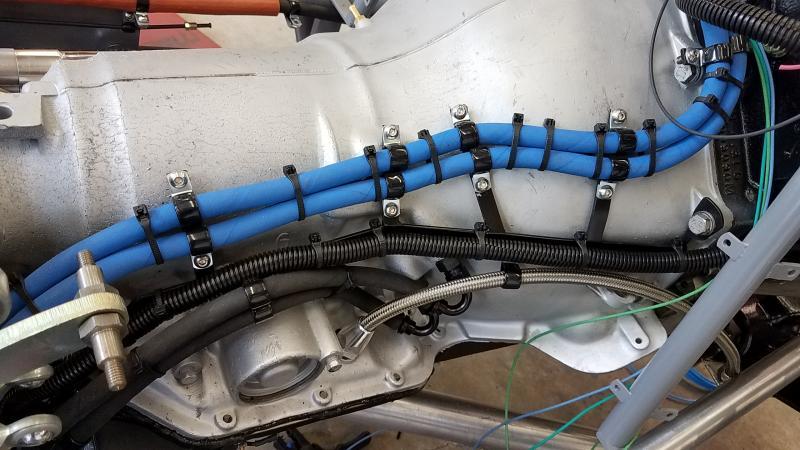

Harness going forward...



[crash2]

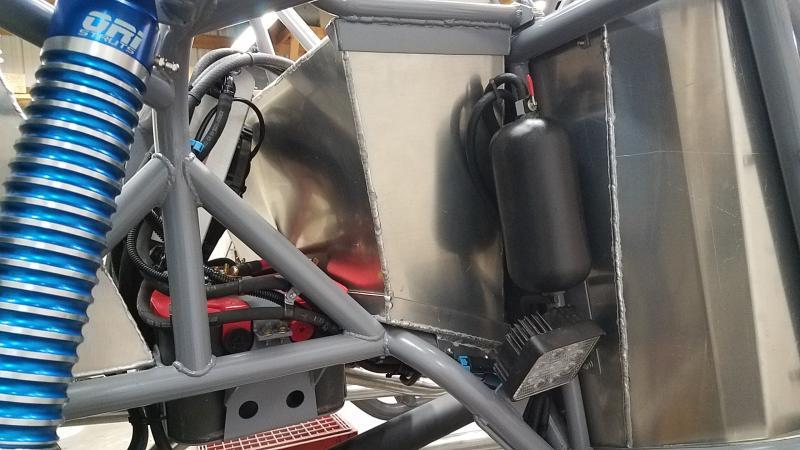

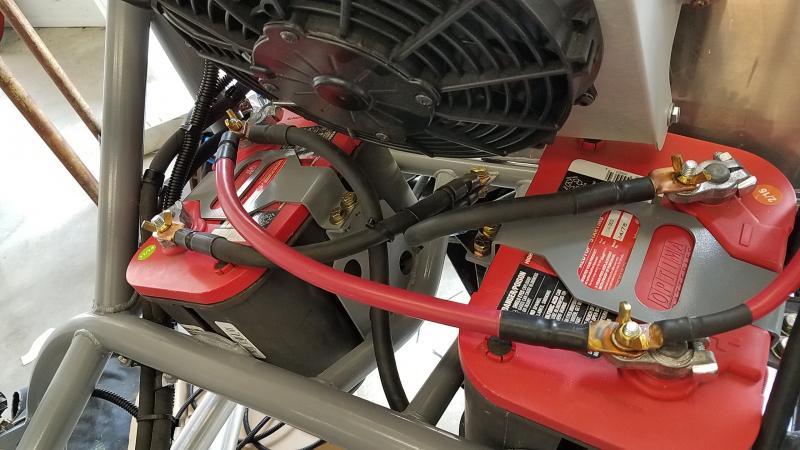

Battery cables done.



[crash2]

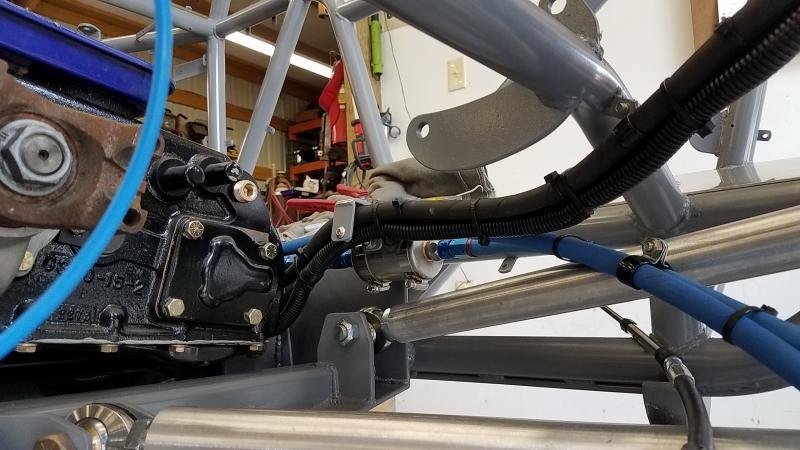

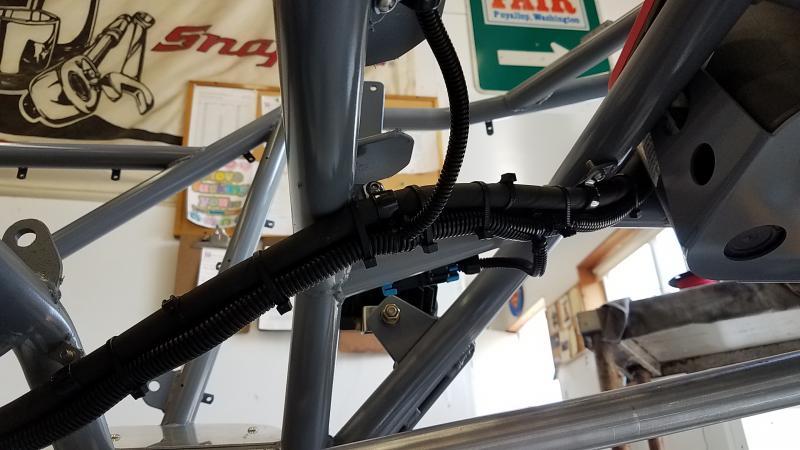

Harness going forward and to the back of the motor where I will stop for now--will get back to that soon.



[crash2]

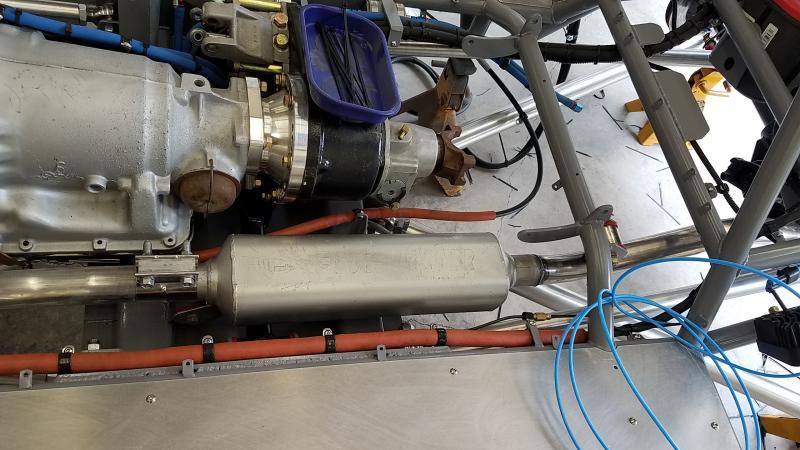

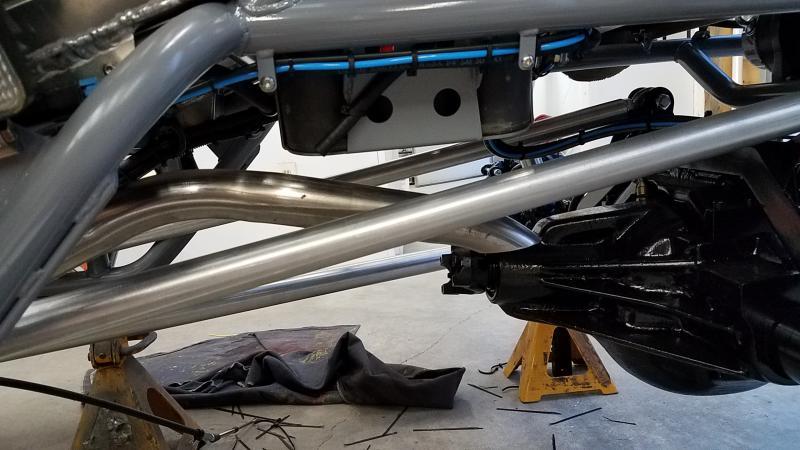

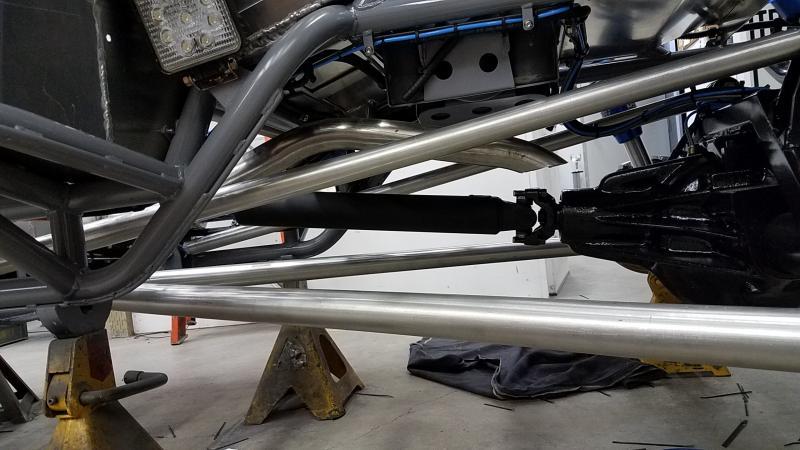

I got the exhaust done and cut the tail pipe back since I felt it hung too far down.... Thats off the list...



[crash2]

So I busted ass and was able to get a portion of the car done. So from the wall behind the seats to the tail of the car is now done. Everything to this point I have been pretty happy with how it has turned out....



[crash2]

So its time to dig into this part and get the motor wired up. One of the things I really enjoy doing.



[crash2]

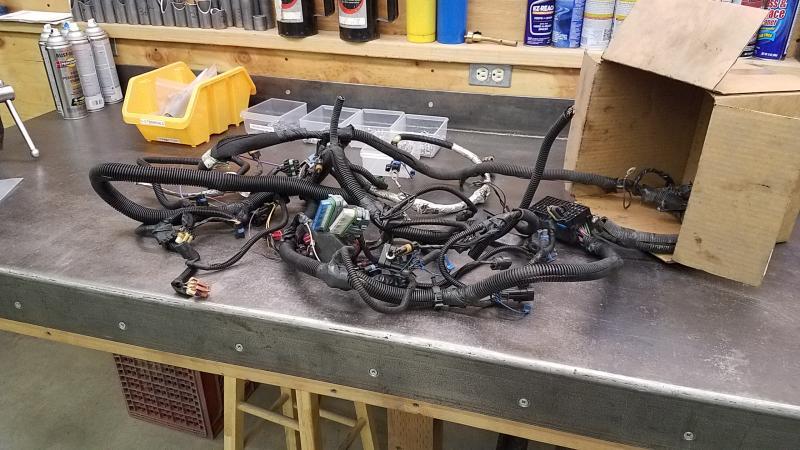

So as my normal routine I start by pulling all the wiring covering off...



[crash2]

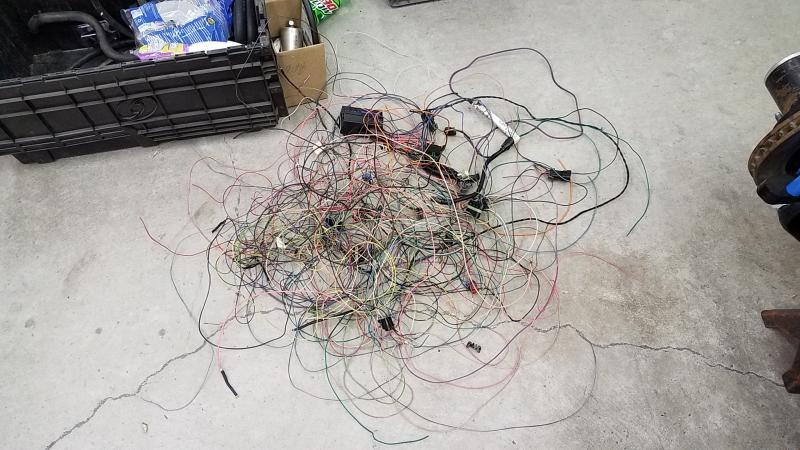

This is what I removed from the harness...



[crash2]

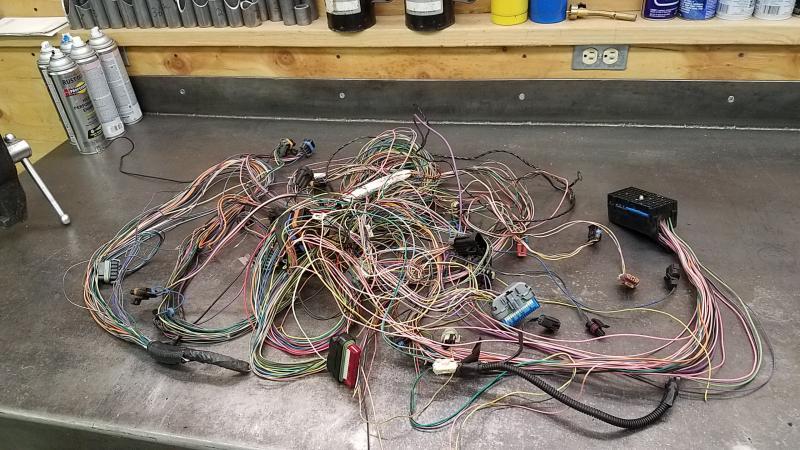

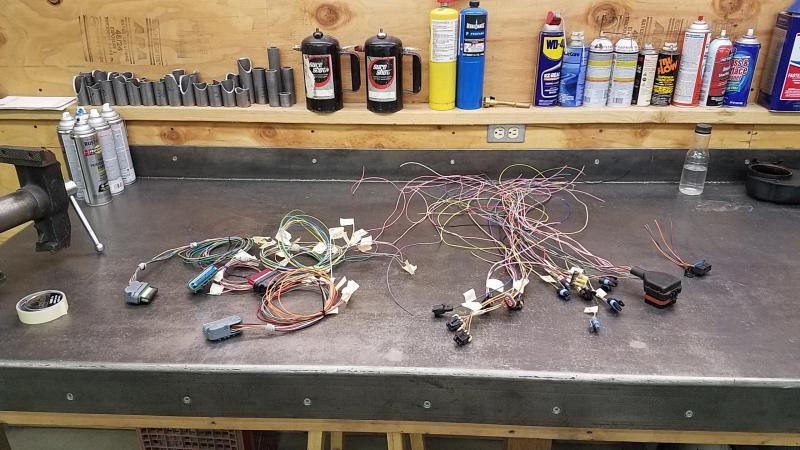

And the harness is sectioned and labeled and ready to build.. So now the fun begins as I build all my harness to fit the rig and motor needs....
