I'm no fabricator but I would(did) skin the underside of the ram protector in .375 Alum.

Weld tabs to the inside of the hoops and drill corresponding holes in yer plate,countersink the bolt heads and voila!! Light,burl easily removable protection.

I'm no fabricator but I would(did) skin the underside of the ram protector in .375 Alum.

Weld tabs to the inside of the hoops and drill corresponding holes in yer plate,countersink the bolt heads and voila!! Light,burl easily removable protection.

I skinned the underside of the axle to the closest hoop with 1/4"x6" and teh first to second hoop with 3/16". I also added a mounting point for hooking up to my winch.

a few pics of the front axle and skid plate on it


Attachments

  • 2008 4 30 001.JPG
    2008 4 30 001.JPG
    70.3 KB · Views: 288
  • 2008 4 30 002.JPG
    2008 4 30 002.JPG
    66.6 KB · Views: 286
  • 2008 4 30 003.JPG
    2008 4 30 003.JPG
    48.5 KB · Views: 292
skid plate, runs from th rear of the tranny to the front of the oil pan, I still have to add the front brace coming down fom the motor mounts. I will also have a poly mount to absorb some of the shock from landing on rocks


Attachments

  • 2008 4 30 007.JPG
    2008 4 30 007.JPG
    66.5 KB · Views: 291
  • 2008 4 30 008.JPG
    2008 4 30 008.JPG
    77.5 KB · Views: 288
  • 2008 4 30 009.JPG
    2008 4 30 009.JPG
    65.7 KB · Views: 285
front axles frame side upper link mounts tied in :looser:


Attachments

  • 2008 4 30 010.JPG
    2008 4 30 010.JPG
    63.4 KB · Views: 288
  • 2008 4 30 012.JPG
    2008 4 30 012.JPG
    63.2 KB · Views: 279
Last edited:
mounting the seats :awesomework:

closest the helmet comes to any bar is about 4"


Attachments

  • 2008 4 30 013.JPG
    2008 4 30 013.JPG
    69.4 KB · Views: 276
  • 2008 4 30 015.JPG
    2008 4 30 015.JPG
    76.8 KB · Views: 293
  • 2008 4 30 016.JPG
    2008 4 30 016.JPG
    64.6 KB · Views: 277

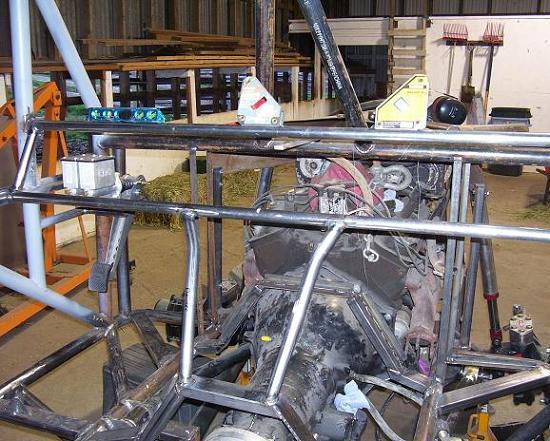

laying out the firewall and flooring, hope to get it done this weekend :cheer:

poster board is my friend :redneck:


what the hell am I on here posting for I should be headed out to the shop and making my sheetmetal :mad:


Attachments

  • 2008 4 30 017.JPG
    2008 4 30 017.JPG
    72.2 KB · Views: 281
  • 2008 4 30 019.JPG
    2008 4 30 019.JPG
    57.1 KB · Views: 270
  • 2008 4 30 020.JPG
    2008 4 30 020.JPG
    58.4 KB · Views: 272
Right on stan. Its coming together .....looking good. Still dont know about the front but after the paint is on it might start to grow on me. I guess its just a different era . Young vs old!!!!!:haha: Anyway its looking good.:awesomework:

Right on stan. Its coming together .....looking good. Still dont know about the front but after the paint is on it might start to grow on me. I guess its just a different era . Young vs old!!!!!:haha: Anyway its looking good.:awesomework:


ouch lol looks like the peanut galerie is out in force :fawkdancesmiley: :haha:

hope that thang can turn tighter then your last toy. Is it going to be running any comps this year??? O this is your spotter from yakima, never did hear how we did, it most of been bad!!! Just have to work on the directions. Hope to see you on this side of the mountians. Keep up the hard work, looks great!

hope that thang can turn tighter then your last toy. Is it going to be running any comps this year??? O this is your spotter from yakima, never did hear how we did, it most of been bad!!! Just have to work on the directions. Hope to see you on this side of the mountians. Keep up the hard work, looks great!

Hey thanks for all the help, to bad we could never get it on its side :redneck: , we actually took second, a long ways behind Ted but it was still a blast. Yeh that daamm toota could not turn for shiat:rb:, thats a toyota thing that I dont understand :haha:. I will be hitting as many local comps as I can get to. :cool:

Hey Stan, when you get done with yours, you going to come over and do my flooring, since you'll be experienced by then......................

Ok, so are you going to be done by the end of the month, I still have that weekend off, got a girl to go and all. You better get finished, I would hate to ruin a perfect weekend. Wheelin, girl, campin, etc.............:awesomework:
